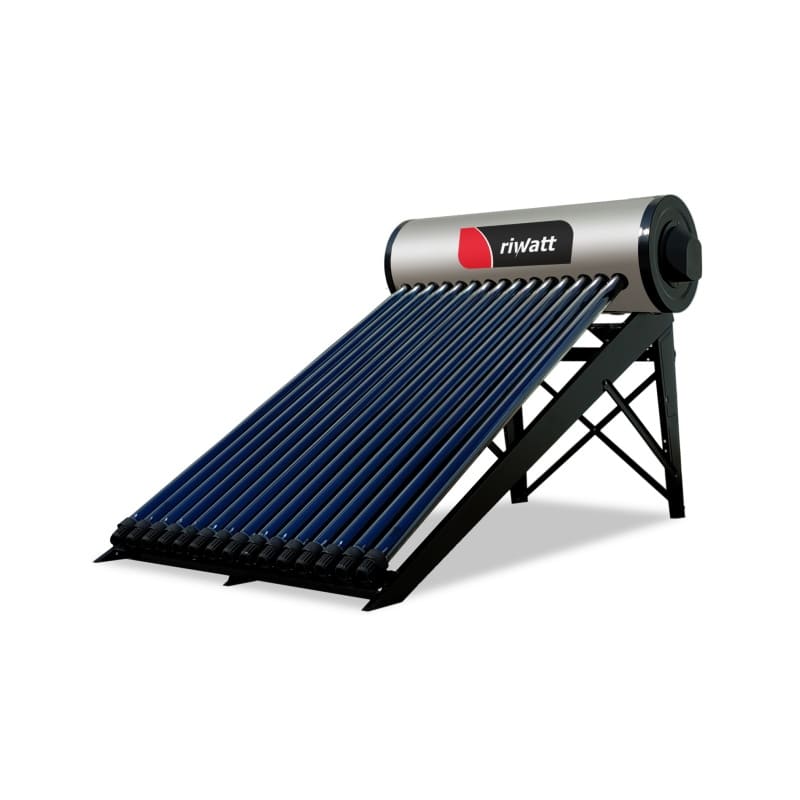

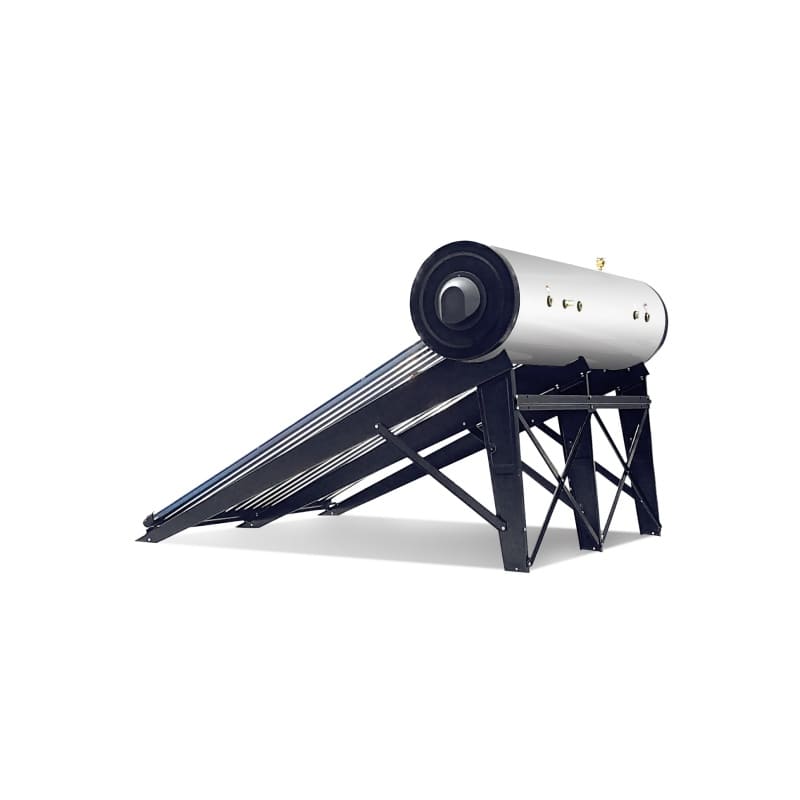

40 Gallon Heat Pipe Solar Water Heaters

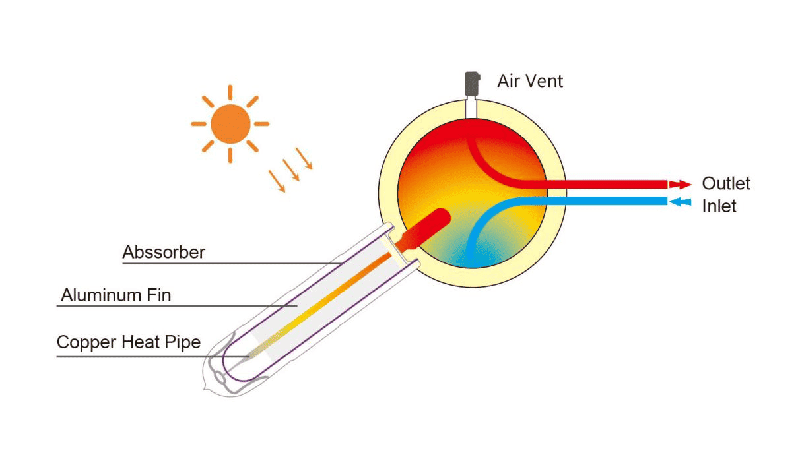

40 Gallon Heat Pipe Solar Water Heaters Working Principle:

The integrated pressurized solar water heater utilizes heat pipes for efficient water heating. Here’s an overview of its operation:
1. Solar Collector: Mounted on the roof or in sunlight-rich areas, the collector consists of evacuated tubes, each containing a copper heat pipe.
2. Evacuated Tubes & Heat Pipes: The heat pipe, filled with a working fluid (e.g., water or alcohol), has two sections: an evaporator in the collector and a condenser in the storage tank.
3. Solar Absorption & Heat Transfer: Sunlight heats the fluid in the evaporator, causing it to vaporize. The vapor then moves to the condenser, where it releases its heat, warming the water in the tank.
4. Gravity Circulation: Gravity drives the condensed liquid back to the evaporator, ensuring continuous circulation.
5. Pressurized Storage Tank: The tank is pressure-resistant and stores hot water, which can be supplied directly to plumbing fixtures.
6. Temperature Regulation: Sensors and a controller maintain optimal temperature and pressure for efficient and safe operation.

This system is highly efficient, providing reliable hot water even in varying weather conditions, while offering better water pressure than non-pressurized alternatives.

Characteristics of an 40 Gallon Heat Pipe Solar Water Heaters key features:

40 Gallon Heat Pipe Solar Water Heaters –  Working Principle:

The natural circulation of water is actively achieved through the thermosyphon principle. This means that hot water naturally rises and circulates through the system, eliminating the need for a pump.
The pressure of the hot water is large and equal to the running water pressure, ensuring efficient distribution.

40 Gallon Heat Pipe Solar Water Heaters – Bearing Water Tank:

The water tank is designed as a pressure-bearing structure with a test pressure of 1.2Mpa and a working pressure of 0.7Mpa. This indicates that the system is robust and can handle certain pressure conditions.
The inner tank material is made of food-grade stainless steel (SUS304 or 316L), ensuring water safety.
The inner tank is welded using fully automatic argon arc welding and double-sided argon gas protection, contributing to the durability of the tank. The inner tank is expected to have a service life of more than 15 years.

40 Gallon Heat Pipe Solar Water Heaters – Polyurethane Insulation:

The solar water tank is insulated with polyurethane that has independent bubbles and a foaming density of 36KG/m3.
This insulation results in a minimal temperature drop of less than 2 °C of hot water within 12 hours.
The insulation is effective enough to maintain a temperature of 25 °C for 24 hours, and it is resistant to deformation over a long period.

40 Gallon Heat Pipe Solar Water Heaters –  Heat Pipe Solar Vacuum Tubes:

The solar heat pipe utilizes a phase-change heat transfer design, leading to a fast start-up of heat energy.
The heat pipe can reach temperatures of up to 222 °C when exposed to sunlight, providing high-temperature hot water.
The system employs double-layer solar vacuum tubes with AL/N/AL/SS/CU coating, ensuring high absorption rates (>92%), low reflectivity (<8%), and an expected service life of 15 years.

These characteristics collectively make the integrated solar water heater efficient, durable, and capable of providing hot water using both solar and thermosyphon principles.
Keep in mind that proper installation and maintenance are crucial to ensure optimal performance over time.

40 Gallon Heat Pipe Solar Water Heaters Warranty

Water tank Solar vacuum tube and bracket: 5 years

FAQ-Frequently Asked Questions

1. What Is An 40 Gallon Heat Pipe Solar Water Heaters And How Does It Work?

An integrated pressurized solar water heater combines the solar collector and water tank into one compact unit. It uses copper heat pipes inside 58×1800mm vacuum tubes to quickly absorb solar energy and transfer heat to the pressurized water tank, ensuring stable hot water supply for household and commercial use.

2. What Are The Benefits Of Using A 1.5mm Thick Inner Tank?

The 1.5mm thick stainless steel inner tank enhances pressure resistance and durability, ensuring long service life and safe operation under high water pressure. It prevents deformation and leakage, making it suitable for multi-storey buildings and pressurized water systems.

3. How Does The Copper Heat Pipe With Aluminum Fin Improve Heating Efficiency?

The copper heat pipe conducts heat rapidly from the solar vacuum tube to the tank, while the aluminum fin increases the heat absorption area. This combination ensures faster water heating, higher efficiency, and stable performance even in low sunlight conditions.

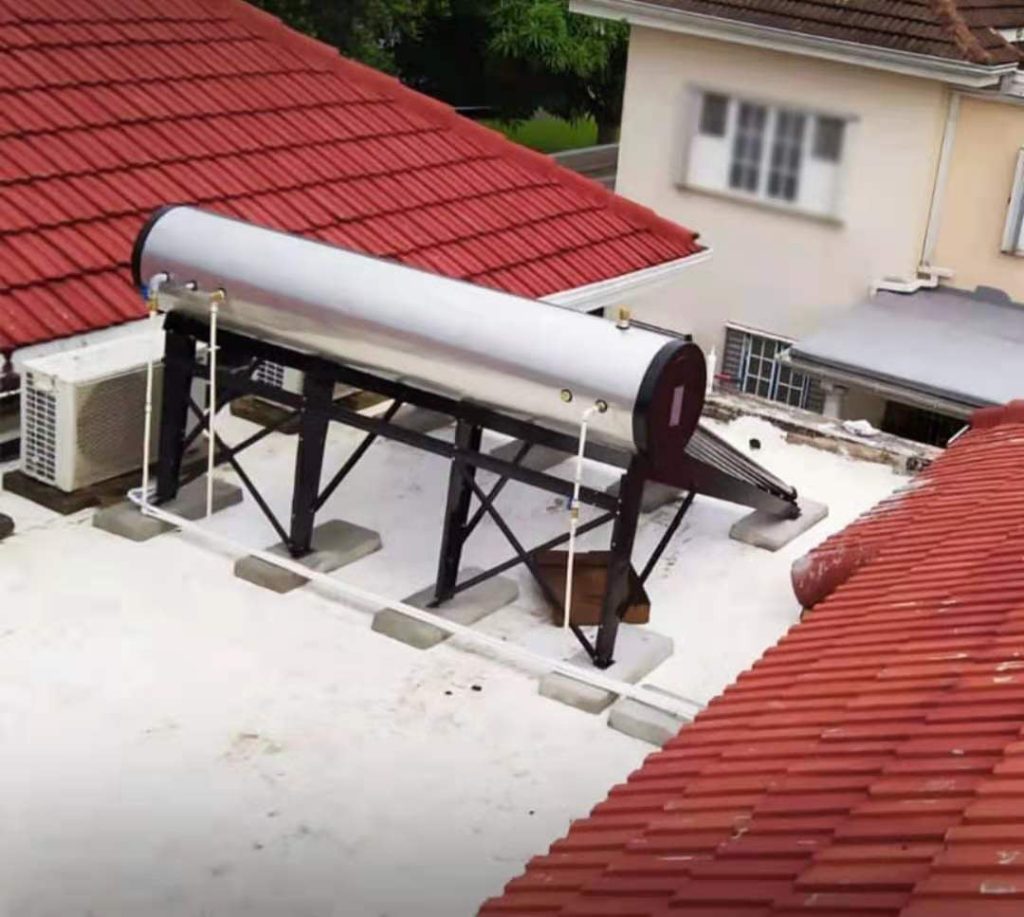

4. Can this 40 Gallon Heat Pipe Solar Water Heaters be Installed on Both Flat and Sloped Roofs?

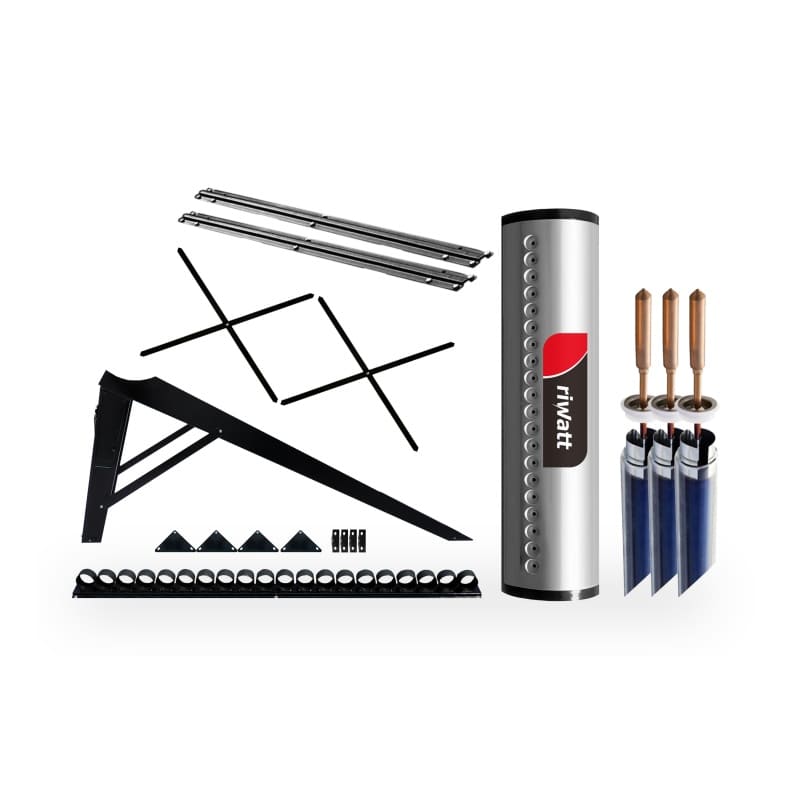

Yes. It comes with an adjustable flexibility mounting bracket designed for both flat and sloped roofs. The angle can be adjusted according to your local latitude to maximize solar energy absorption throughout the year.

5. Is The System Suitable For High-Pressure Water Supply?

Absolutely. The pressurized design allows direct connection to municipal water systems or booster pumps, providing strong water flow and steady pressure for showers and kitchen use without the need for gravity feed.

6. How Does The System Perform In Cloudy Or Cold Weather?

The copper heat pipe solar collector maintains high efficiency even under weak sunlight. For extended cloudy or rainy days, an electric heater backup can be integrated, ensuring continuous hot water availability in all seasons.

7. What Is The Expected Lifespan Of The Integrated Pressurized Solar Water Heater?

With premium materials such as 1.5mm inner tank stainless steel, 58×1800mm vacuum tubes, and copper heat pipes, the system typically lasts 15–20 years with minimal maintenance.

8. What Maintenance Does The System Require?

Maintenance is simple. Regularly clean the vacuum tubes and check the heat pipes for scaling or dust buildup. Inspect the mounting structure and connections every 6–12 months to ensure long-term efficiency and safety.

9. Can It Be Connected With Other Water Heating Systems?

Yes. The integrated pressurized solar water heater can be combined with electric or gas water heaters as a pre-heating stage, reducing energy consumption and extending the life of auxiliary heating systems.

10. What Are The Key Advantages Compared To Non-Pressurized Models?

This system delivers higher water pressure, faster heating, and superior durability. The integrated design saves space, while the copper heat pipe technology ensures quick heat transfer and reliable year-round performance.
