Inner tank:0.4mm thickness SUS304 stainless steel
Vacuum tube: QB-AL-N/AL-47-1500/58-1800
Outer tank:0.4mm thickness painted steel or PDVF
Frame:1.5mm thickness coated galvanized steel
The material of insulation: 55mm thickness polyurethane foam
Tube coating: Cu-AL-N-AL
The reflector: aluminum alloy plate/stainless steel (optional)
Non-Pressure Series:

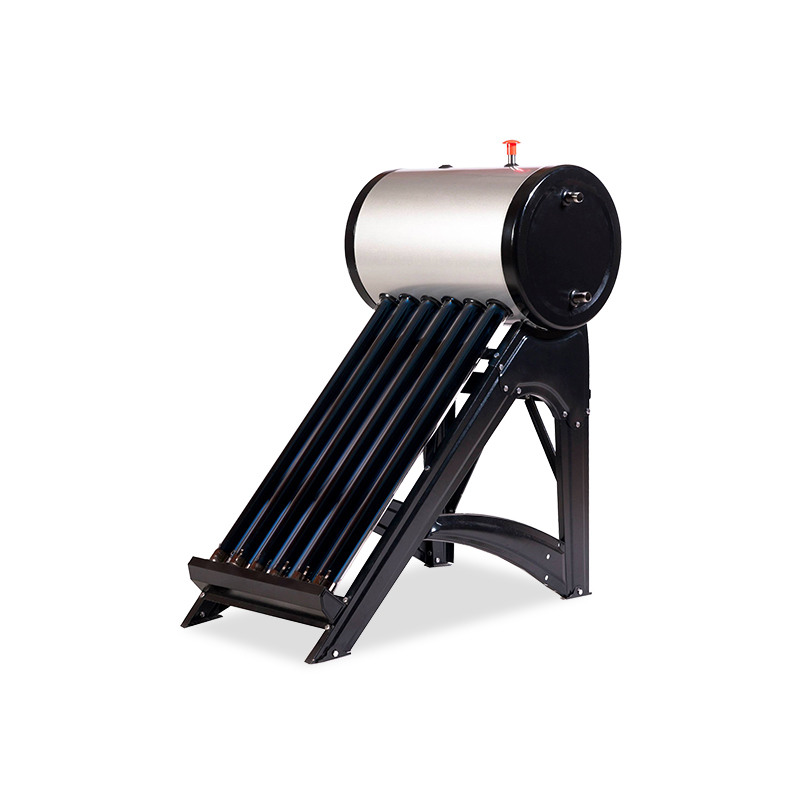

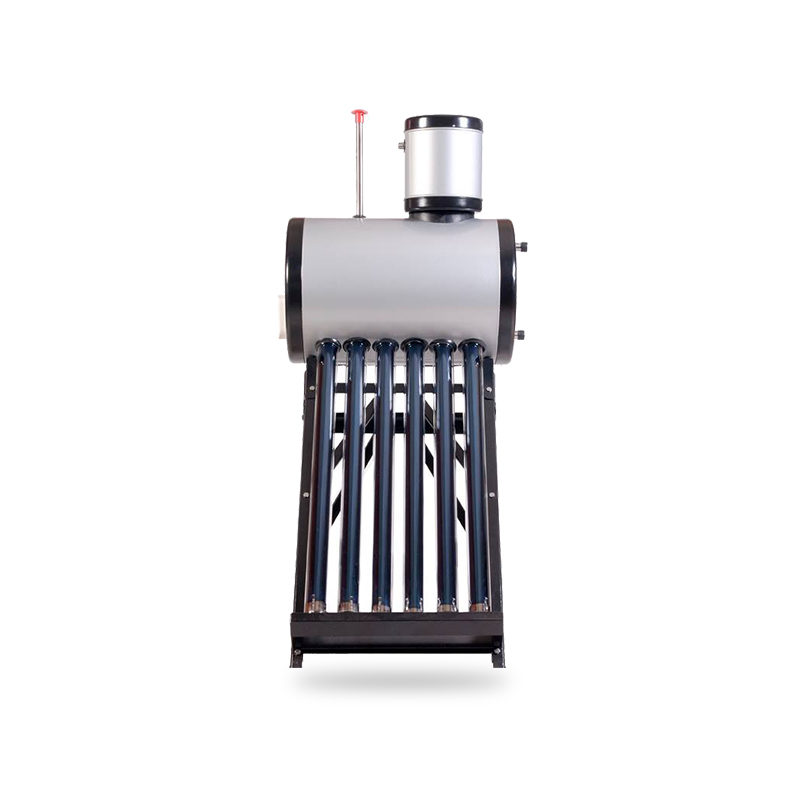

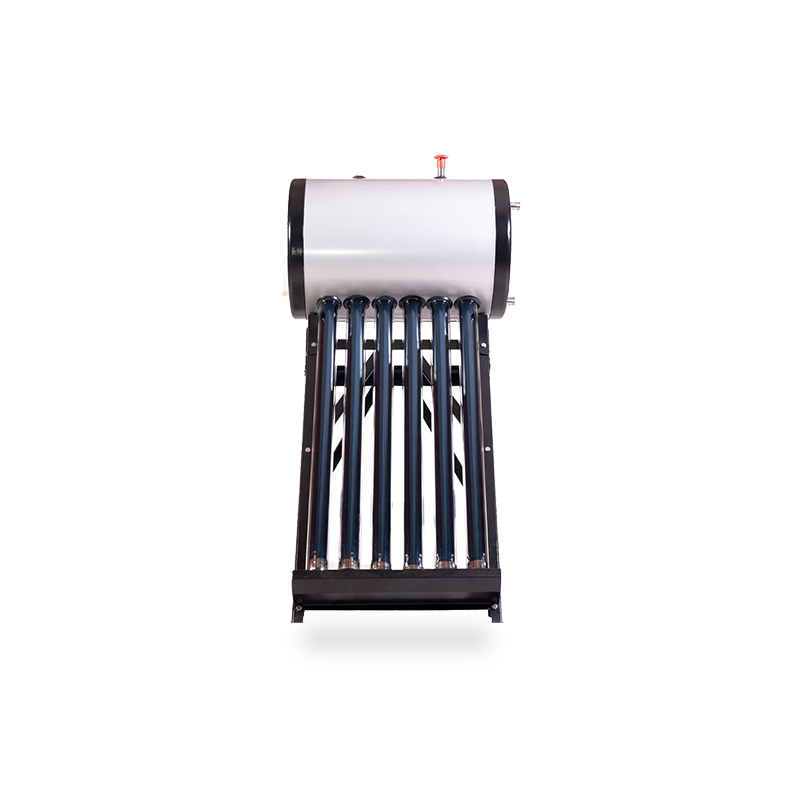

The non-pressurized solar water heater is a kind of solar water heating system the solar collector and storage water tank are connected together, the water tank on the top and the collector panel on the bottom. It relies on the natural circulation of waters between the collector and the water tank. As the water in the vacuum tubes is heated, it rises naturally into the tank, while cool water in the tank flows down to the bottom of the vacuum tubes, causing circulation throughout the system. It is a simple and safe solution to get heat power from the sun.
| Introduction | 1 | Model | 【MINI-6-30L-PRO】 |
| 2 | Water Tank Capacity | 【60 L】 | |
| 5 | Absorb Area | 【0.444 M2】 | |
| Water Tank | 6 | Material of Outer Tank Shell | Zic-coated galvanized steel or SUS-304 |
| 7 | Material of Inner Tank Chest | Food Grade SUS304-2B Stainless Steel | |
| 8 | Water Tank Diameter | 【360/460 mm】 | |
| 9 | Water Tank Insulating Layer | Imported polyurethane,【50mm thickness】 | |
| 10 | Heat Preservation Period | 72~80 hours | |
| 11 | Welding Method | Argon Arc Welding | |
| 12 | Preserved Holes on Water Tank | Air Vent/Cold Water Inlet/Hot Water Outlet/Drainage | |
| Vacuum Tube | 13 | Tube Structure | All-Glass Double-Tube Co-Axial Structure |
| 14 | Glass Material | High Borosilicate 3.3 Glass | |
| 15 | Tube Size | 【58*1000mm】* 【6 Tubes】 | |
| 16 | Outer Tube Dia. & Glass Thickness | Ȼ58±0.7mm,Glass Thickness 1.6±0.15mm | |
| 17 | Inner Tube Dia. & Glass Ghickness | Ȼ47±0.7mm,Glass Thickness 1.6±0.15mm | |

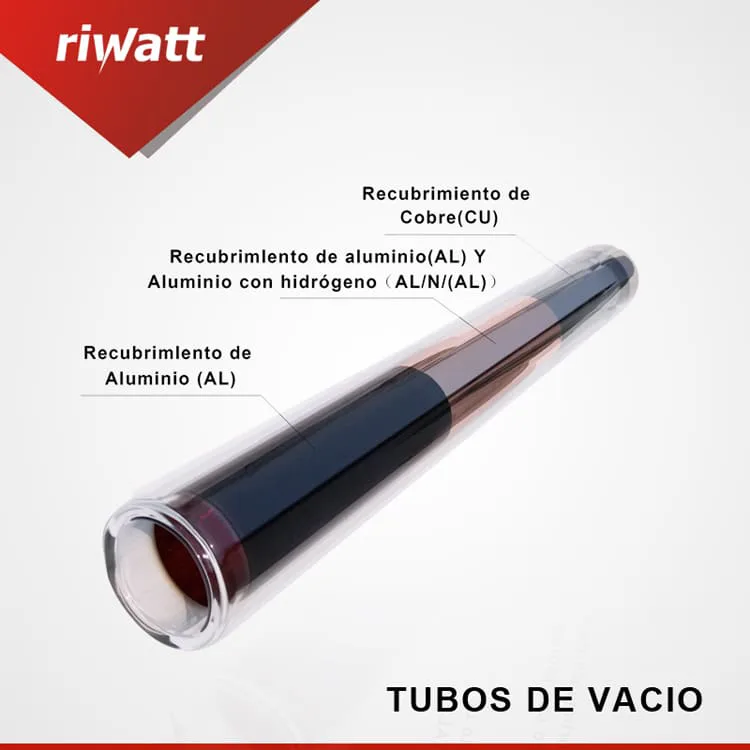

| 18 | Coating Material | 【CU/SS-ALN(H)/SS-ALN(L)/ALN】 | |
| 19 | Sediment Method | Tri-Element Magnetron Sputtering Plating | |
| 20 | Absorb Ratio | > 96% (AM 1.5) | |
| 21 | Thermal Emissivity | ≤ 6 % / (80°C) | |
| 22 | Pressure Between Tubes (empty) | 5×10-3 PA | |
| 23 | Freezing Point | -30°C | |
| 24 | The Average Heat Loss: ULT | ≦ 0.60W / (M2▪ ℃) | |
| 25 | Hail Resistance | Ȼ25mm | |
| Bracket | 26 | Bracket Material | SUS-201 Stainless Steel |
| 27 | Bracket Angle | 20°,22°, 25° 27°, 30° 38° 45° | |
| 28 | Bolts & Nuts | Stainless Steel |
