316L Single and Twin Pre-insulated Flexible Solar Hose

RIWATT Pre-Insulated Flexible Solar Hose enables quick, one-step installation for solar water heating systems. With high-temperature EPDM insulation, stainless steel corrugated tubing, and an integrated sensor cable, it delivers durable, leak-free connections between collectors, pump stations, and water tanks—no welding needed.

● Solar hose pipe material:316L 0.21mm thick
● Insulated material: EPDM, not NBR
● Pre-insulated EPDM thickness:13mm/20mm
● Size:3/4'' 1'',1.25'' or customize
● Single or Twin pipe line
● Signal pipe: 0.3/0.5mm, 2 core
● Packing: Robust carton box 10/15/20/30/50m per box

PRODUCT DETAILS

316L Single and Twin Pre-insulated Flexible Solar Hose

Flat Panel Solar Water Heater
DN	SS-Pipe		Insulation Pipe		Fitting
	ID/OD	Material	Material	Thickness (mm)	(BSP/NPT)
DN12	/12/16	SUS316L	EPDM	13/20	1/2″
DN16	16/20	SUS316L	EPDM	13/20	3/4″
DN20	20/25	SUS316L	EPDM	13/20	1″
DN25	26/32	SUS316L	EPDM	13/20	1″
DN32	32/41	SUS316L	EPDM	13/20	1″

Riwatt pre-insulated flexible solar hoses Introduction：

Riwatt Pre-Insulated Flexible Solar Hose requires just one step to complete solar water heater pipe installation.
Our pre-insulated flexible stainless steel solar hose is equipped with high-temperature EPDM insulation, durable jacketing protection, and a pre-assembled 2-core temperature sensor cable—making it the ideal choice for any solar thermal system. It enables quick and reliable connections between solar collectors, the pump station, and the water tank—no welding required!
The system is lightweight, space-saving, and easy to handle, even in confined areas. Flow and return pipes are clearly marked for simple identification. The smart break-point design allows installers to separate twin pipes into two single pipes without damaging the jacketing, perfectly meeting different installation needs.

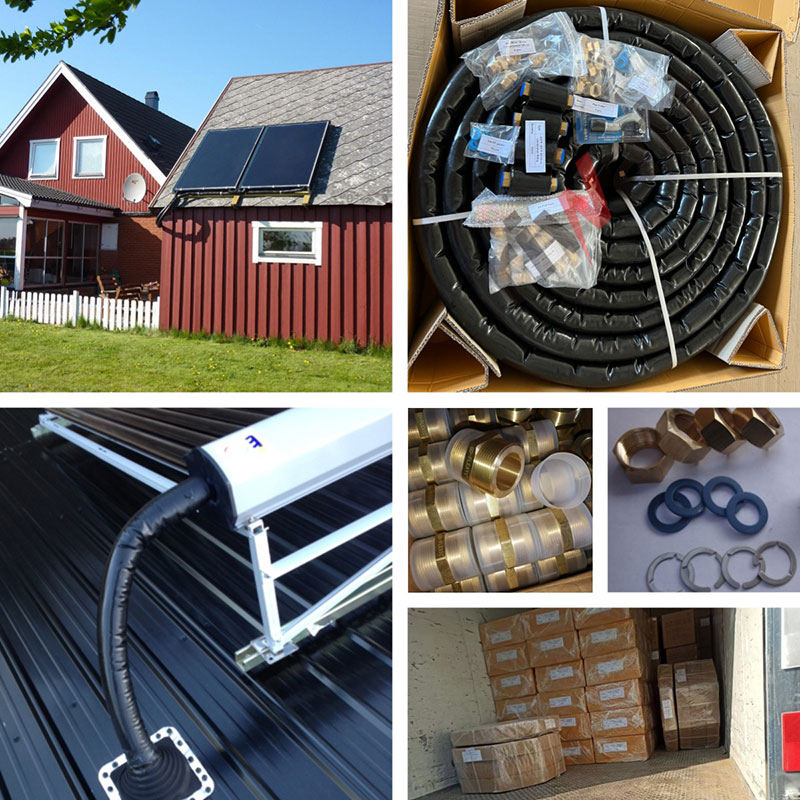

flexible_solar_hose

Pre-insulated Flexible Solar Hoses Application：

Riwatt pre-insulated flexible solar hoses are suitable for:
* Solar hot water systems
* Heating systems
* Heat pumps
* Air conditioning technology
* Indoor, outdoor, or underground piping applications

Pre-insulated Flexible Solar Hoses Structure：

✅Twin Flexible Solar Hose:

* Two flexible corrugated stainless steel tubes (feed & return)
* High-temperature EPDM insulation
* UV-resistant seamless jacketing protection
* Silicone sensor line

✅Single Flexible Solar Hose:

* One flexible corrugated stainless steel tube
* High-temperature EPDM insulation
* UV-resistant seamless jacketing protection

✅Single Flexible Solar Hose with Temperature Sensor Cable:

* One flexible corrugated stainless steel tube
* High-temperature EPDM insulation
* UV-resistant seamless jacketing protection
* Silicone sensor line

epdm_flexible_solar_hose

solar_hose_fittings

Pre-insulated Flexible Solar Hoses key Features:

* Designed for Solar Thermal Systems – Feed & return pipes combined in one coil with clear identification; sensor cable positioned for easy orientation.
* High-Grade Stainless Steel (316L/304) – Flexible, food-grade; max working pressure 17.5 bar; burst pressure 200 bar; annealed at 1050°C.
* Premium EPDM Insulation– Closed-cell, genuine caoutchouc; PVC- & CFC-free; ozone & UV resistant; temperature range -200°C to +150°C (up to +175°C).
* Seamless UV-Resistant Jacketing – High-density polyolefin copolymer foil; waterproof, durable, bird-peck resistant; UV tested (500 hours).
* Flexible Coil Options – Standard lengths: 10, 15, 20, 30, 60 meters; custom lengths available.
* Quick & Cost-Effective Installation – No soldering; saves time, space, and labor; twin pipes can be split into two single pipes if required.

pre insulated solar hose price

Pre-insulated Flexible Solar Hose Advantages：

Flexible Stainless Steel Construction: Easily bendable by hand, ensuring simple routing and installation.
High-Temperature Sensor Cable: Equipped with a silicon-insulated cable that operates reliably up to 200°C.
Premium EPDM Insulation: Offers exceptional UV resistance, weather durability, and high-temperature performance for long-term use.
Universal Compatibility: Connects seamlessly with all standard solar heating system components.
Easy & Reliable Installation: No soldering or welding required — ensuring a quick, secure, and professional setup.
Extended Service Life: Built to last with high-quality materials that resist aging, UV exposure, and extreme temperatures.
Indoor & Outdoor Application: Ideal for both residential and commercial solar thermal installations.
