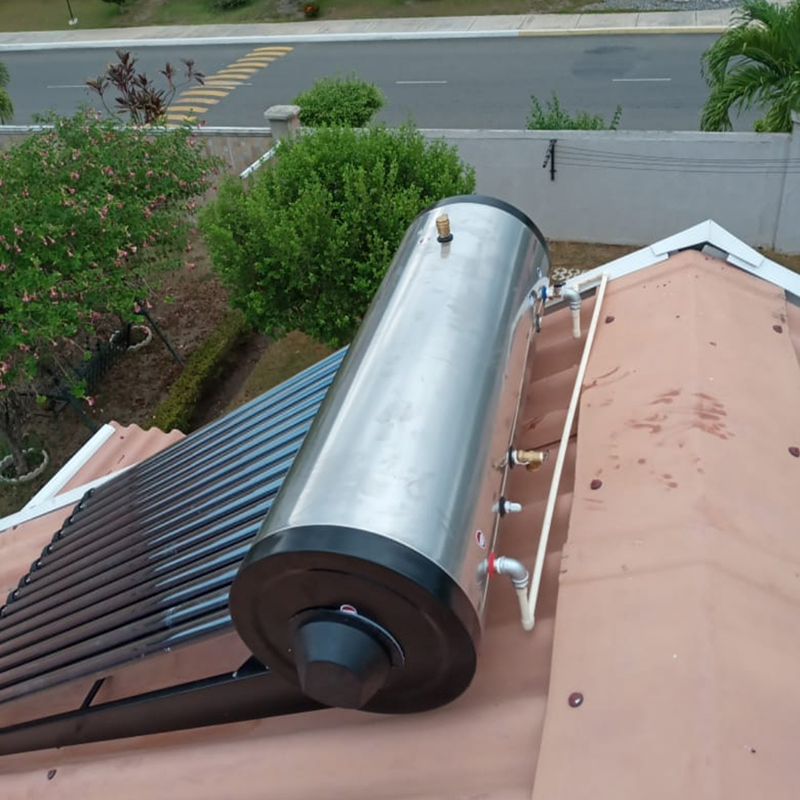

Compact high pressure solar water heater Characteristics:

This model works with high pressure,so it can be connected with city water directly. With the heat pipe in the vacuum tube,therefore no water in the tube,each tube can work alone,so the solar colletcor can work even one tube is broken.

Highly efficient absorber of high performance with daily average efficiency over 50%
Start

up quickly,the water is heated rapidly by heat pipe which will transfer the heat energy into the tank
Withstand pressure of 6 bar,more comfortable to use
Simple structure,easy to assembly and install
Can be used all year even in the cold climate area
Long service life,can be use over 15 years

Technical Parameters:

Inner tank: SUS 304-2B/1.2~1.5mm
Outer tank: Galvanized steel/0.31~0.45mm, SUS304-2B/0.41mm
Insulation: high density polyurethane foam 50mm
Vacuum tube: 47*1500mm/58*1800mm, SS-CU-AIN/ALN or AL-N-AL coating
Bracket: Galvanized steel 1.5mm/SUS 201 1.2mm
20/25/38/45/50 degree
Accessories: UV stabilized high temperature silicon
Capacity: 210L 240L 300L 360L(according to customers’ requirement)
