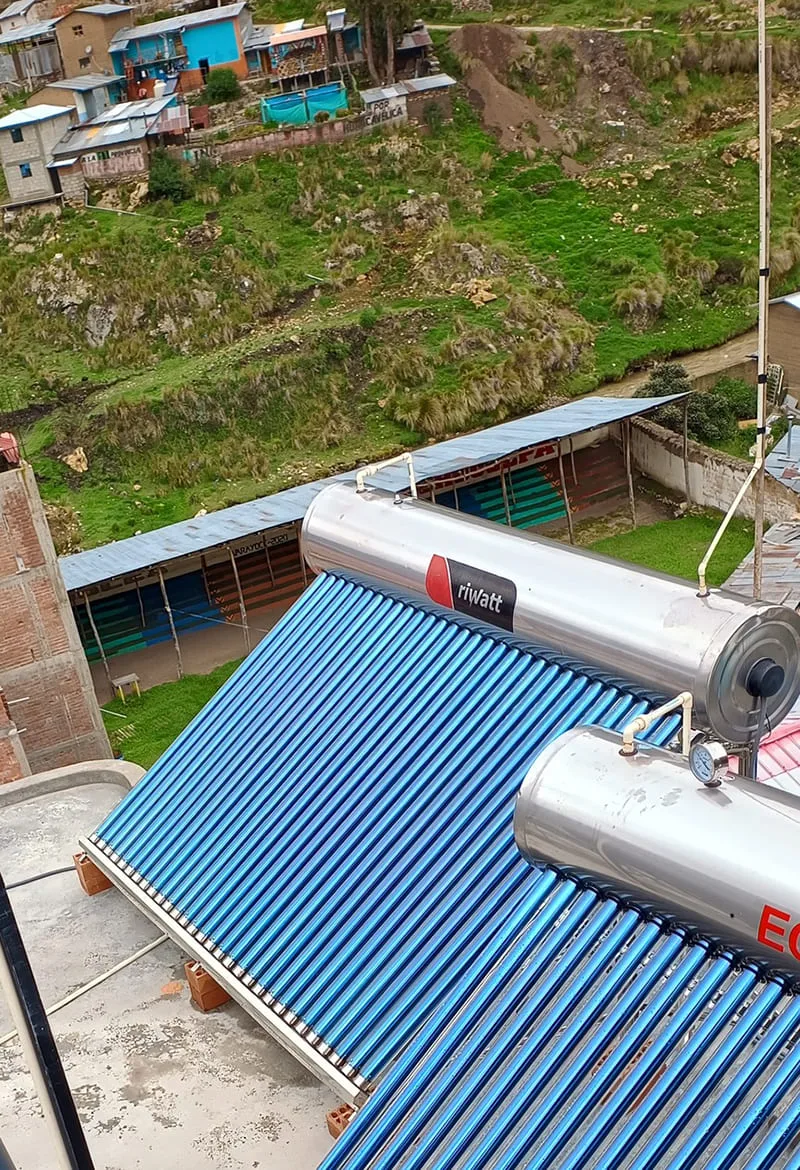

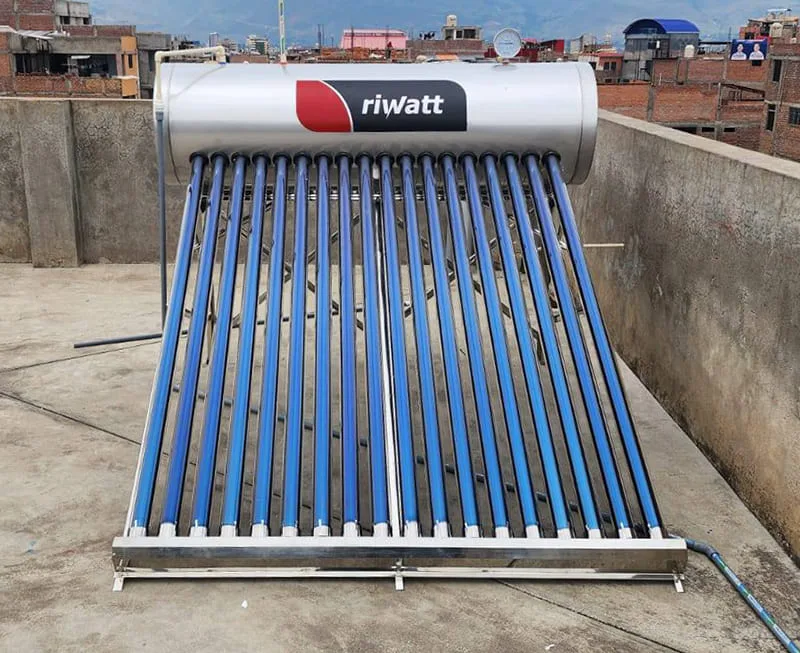

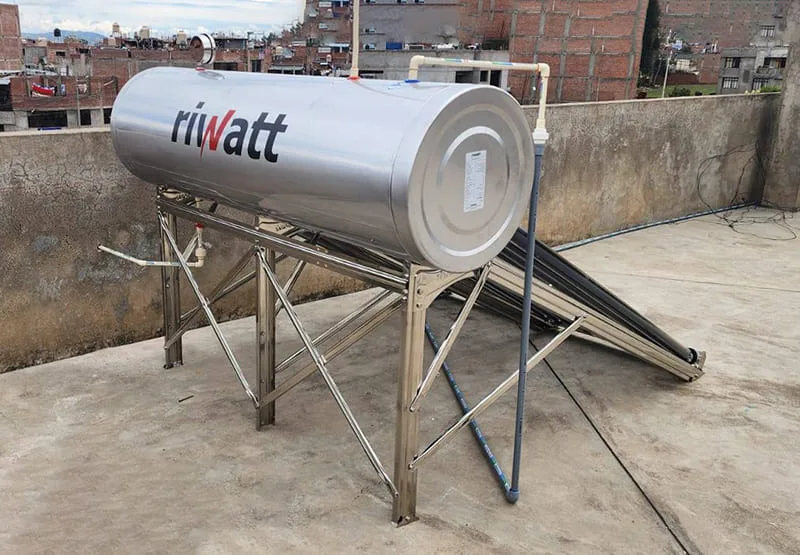

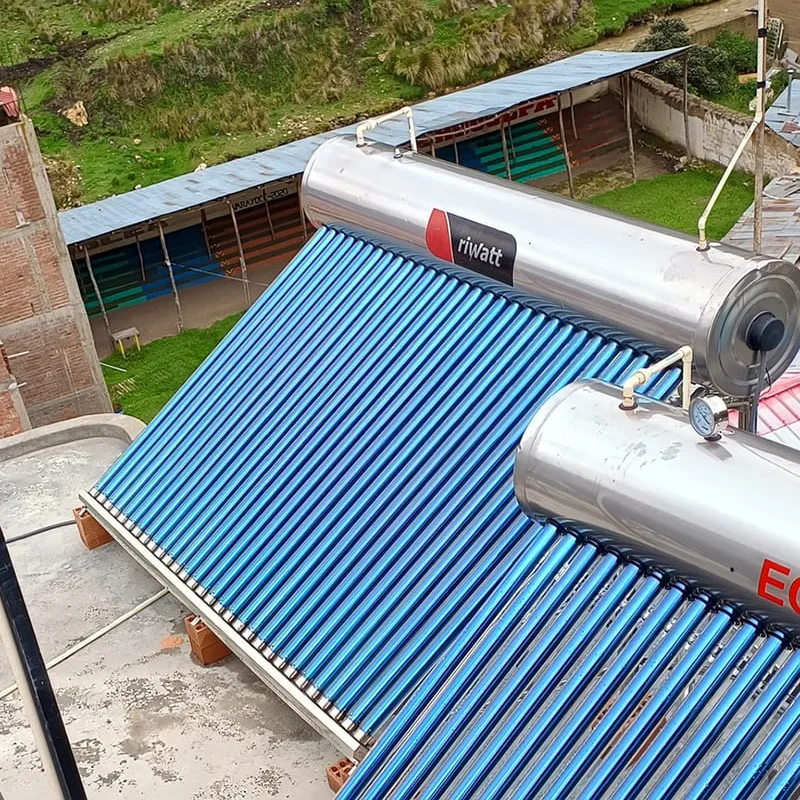

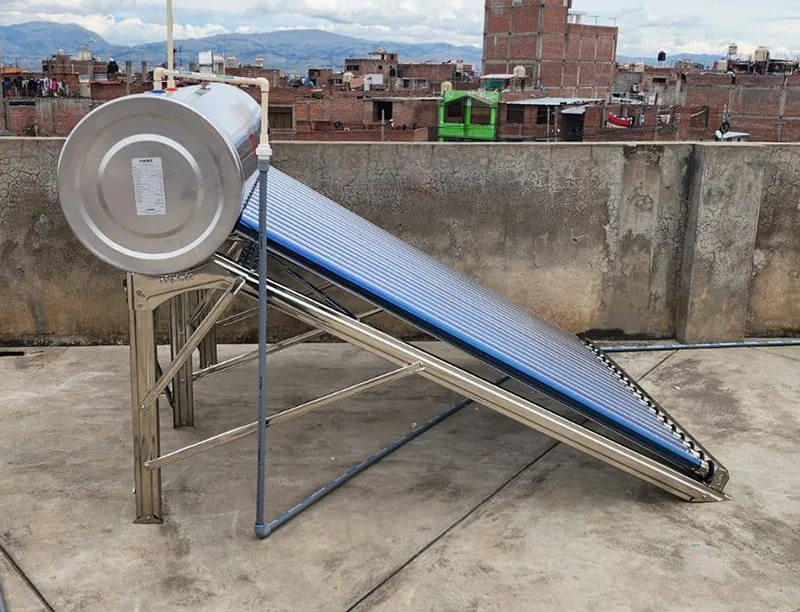

The RIWATT 200L solar panel hot water heater is a high-standard, compact non pressurized system designed for reliable and cost-effective hot water supply. Built with a durable stainless steel tank, it delivers excellent performance for residential use in the Peru market, ensuring energy savings and long service life.
Solar Panel Hot Water Heater Key Features
200L Capacity for Daily Use – Ideal for small to medium households
Stainless Steel Inner Tank – Corrosion-resistant and hygienic
Compact Non Pressurized Design – Easy installation and low maintenance
High Solar Efficiency – Maximizes heat absorption for faster hot water
Cost-Effective Solution – Reduce electricity and energy bills
Stable Performance – Designed for varying climates including Peru regions
Solar Hot Water Key Applications
Residential homes and villas
Rural and off-grid houses
Apartments with rooftop installation
Small hotels and guesthouses
Areas with strong solar radiation
Solar Panel Water Heater Specification
| Solar Panel Hot Water Heater Storage Tank | ||
| 1 | Material of out tank | SUS-30-4-2B Stainless Steel. |
| 2 | Material of inner tank | Food grade stainless steel SUS304-2B /0.5mm thickness |
| 3 | Tank insulating layer | 60mm , high-density polyurethane foam |
| 4 | Inlet and outlet hole | 3/4’’ |
| 5 | Tube to tube distance | 80mm |
| 6 | Tank size | 480/360mm |
| 7 | Welding: | Argon arc welding |
| Solar Evacuated Vacuum Tubes | ||
| 8 | Tube structure | All-glass double deck co-axial structure |
| 9 | Glass material | High borosilicate 3.3 glass |
| 10 | Outer tube dia. and glass thickness | Ø58±0.7mm; Glass thickness 1.6±0.15mm |
| 11 | Inner tube dia. and glass thickness | Ø47±0.7mm; Glass thickness 1.6±0.15mm |
| 12 | Tube size | 58*1800mm |
| 13 | Structure | Cu/SS-ALN(H)/SS-ALN(L)/ALN |
| 14 | Sediment method | Three targets magnetron sputtering plating |
| 15 | Specific absorption | 0.93-0.96(AM1.5) |
| 16 | Emission ratio | 0.04-0.06(80℃±5℃) |
| 17 | Vacuum tightness | 5.0×10¯³ Pa |
| 18 | Idle sunning property parameters | 260-300 m².C/KW |
| 19 | Average heat loss coefficient | ULT=0.4~0.6W/(M2.0C) |
| 20 | Resistant Hail | ≤35mm |
| 21 | Useful life | 15 years |
| Solar Panel Hot Water Heater Bracket | ||
| 22 | Bracket: | Coated Stronger stainless steel-1.2mm |
| 23 | Bracket angle: | 25 degree flat roof |
| 24 | Fastening pieces: | Stainless steel. |
Solar Panel Heater FAQ
1. What is a solar panel hot water heater and how does it work?
A solar panel hot water heater uses solar energy to heat water through collectors, providing an eco-friendly and energy-saving hot water solution.
2. Is the 200L capacity enough for a family?
Yes, a 200L solar panel hot water heater is suitable for 3–5 people, covering daily household hot water needs.
3. What is the difference between non pressurized and pressurized systems?
A non pressurized system works with gravity-fed water supply and is more cost-effective, while pressurized systems provide higher water pressure.
4. Is the stainless steel tank durable for long-term use?
Yes, the stainless steel tank offers strong corrosion resistance, ensuring long lifespan and clean water quality.
5. Is this solar panel hot water heater suitable for the Peru market?
Yes, it is designed for high solar radiation regions like Peru, delivering stable performance and high efficiency throughout the year.
