diy best v guard solar water heater

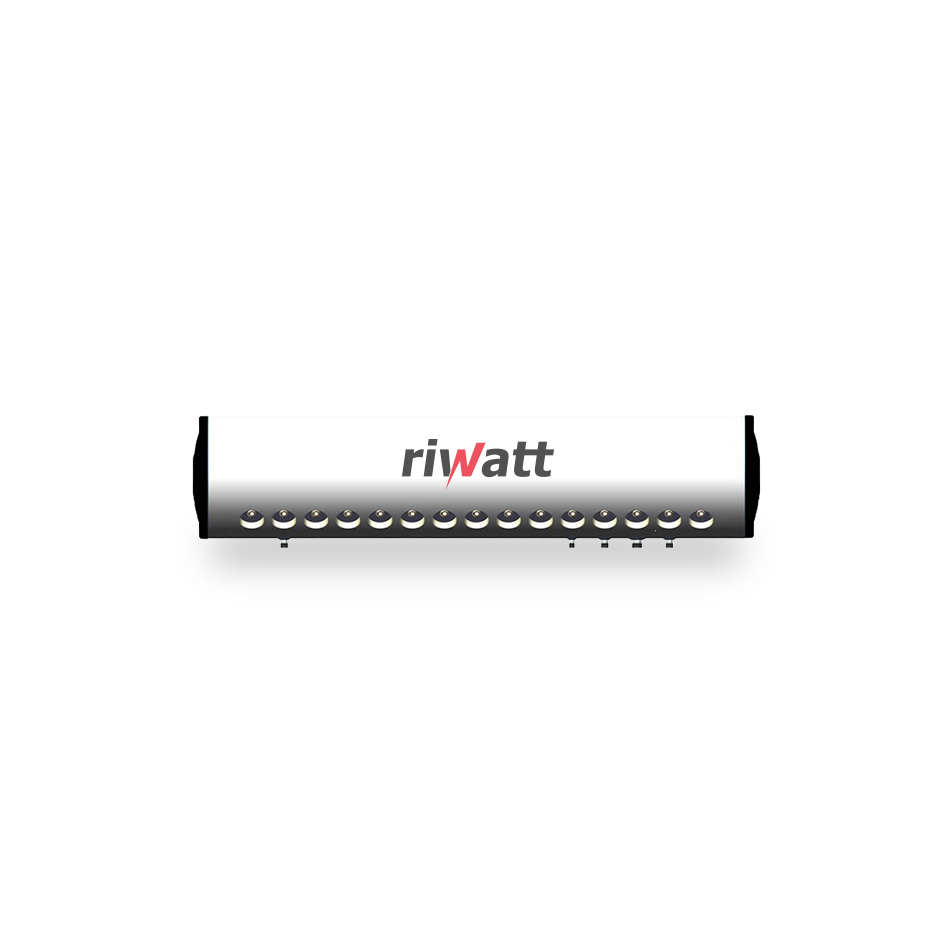

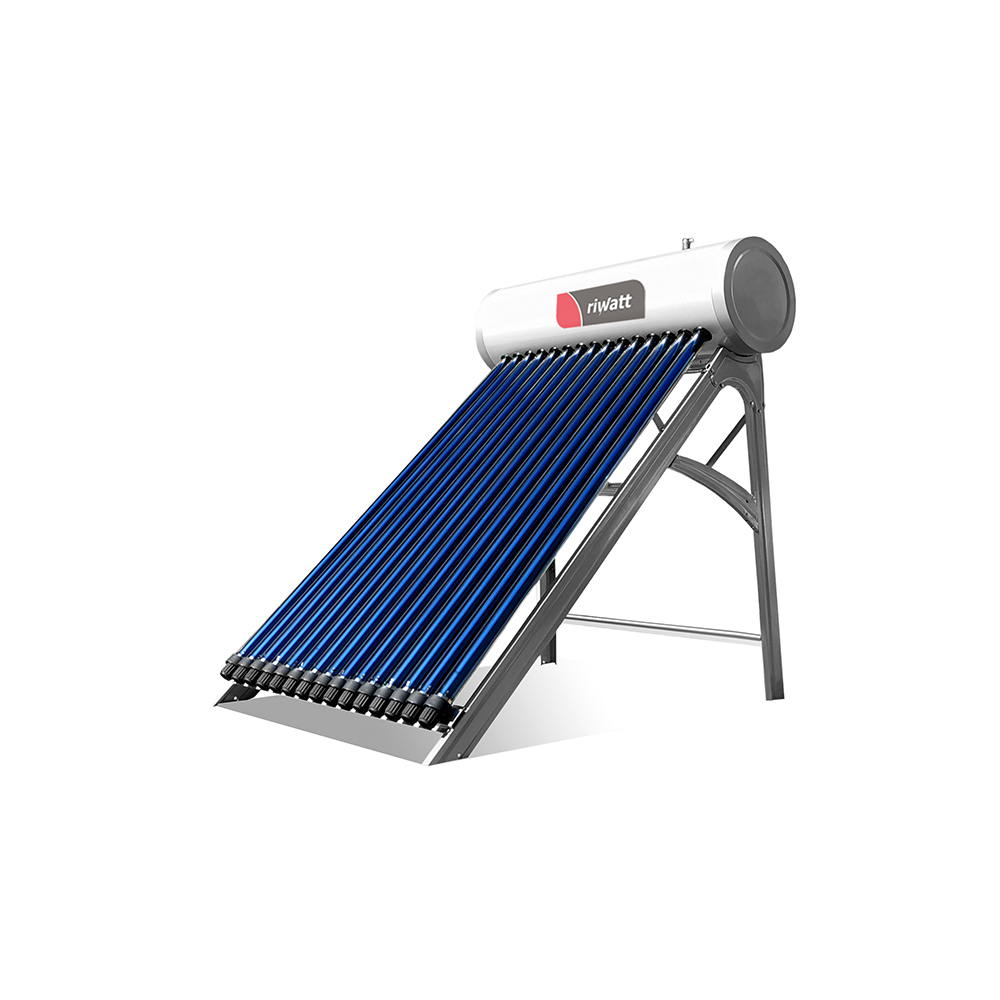

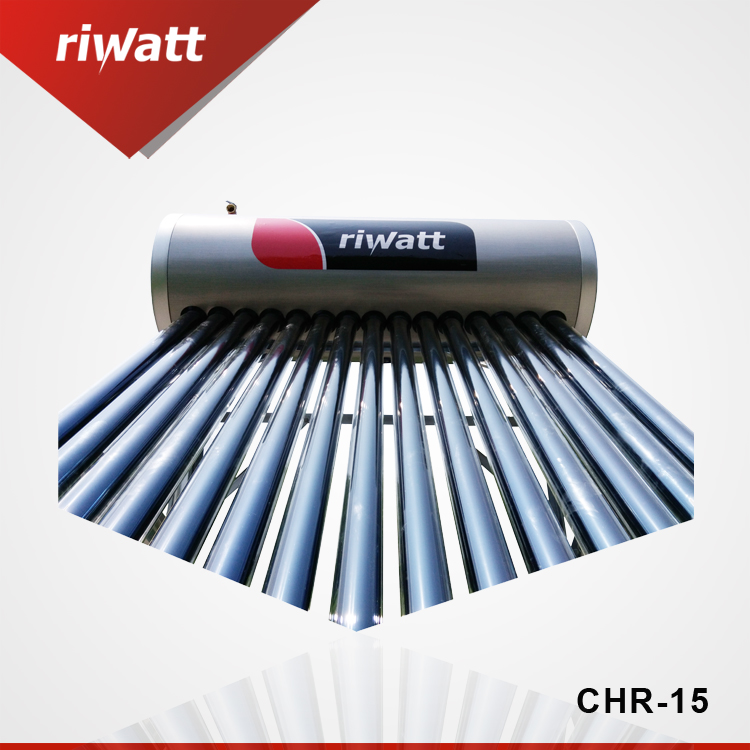

Best Riwatt V Guard Solar Water Heater Company
- ♦ Model : CHR-15
- ♦ Vacuum Tubes: 58-1800mm,15 tubes,
- ♦ Inner Tank Material & thickness: SUS-304-2B,1.2mm
- ♦ Outer Tank Shell: high quality color painted steel.
- ♦ Water Tank Size(inner/outer dia.) : 470/360mm
- ♦ Heat Pipe Material: TU1 copper,14*90mm
- ♦ Working Pressure:0.7Mpa
- ♦ Testing Pressure: 1.2Mpa
- ♦ Insulation : 55mm high density polyurethane
- ♦ Bracket : 1.35~1.5mm galvanized steel

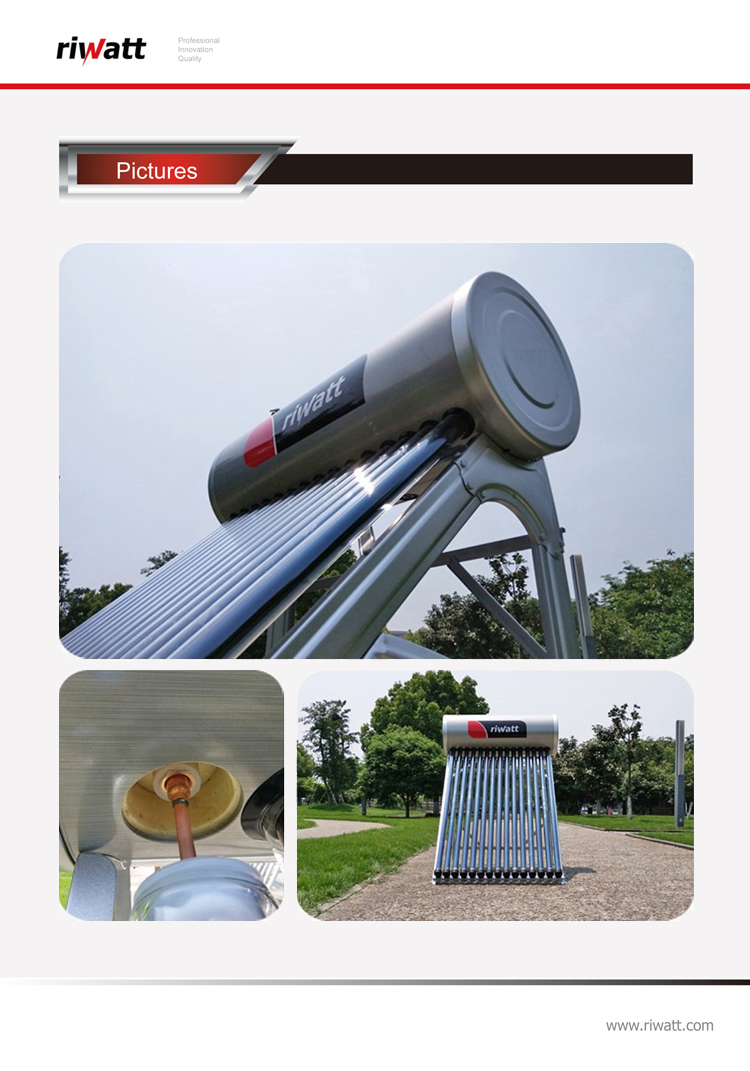

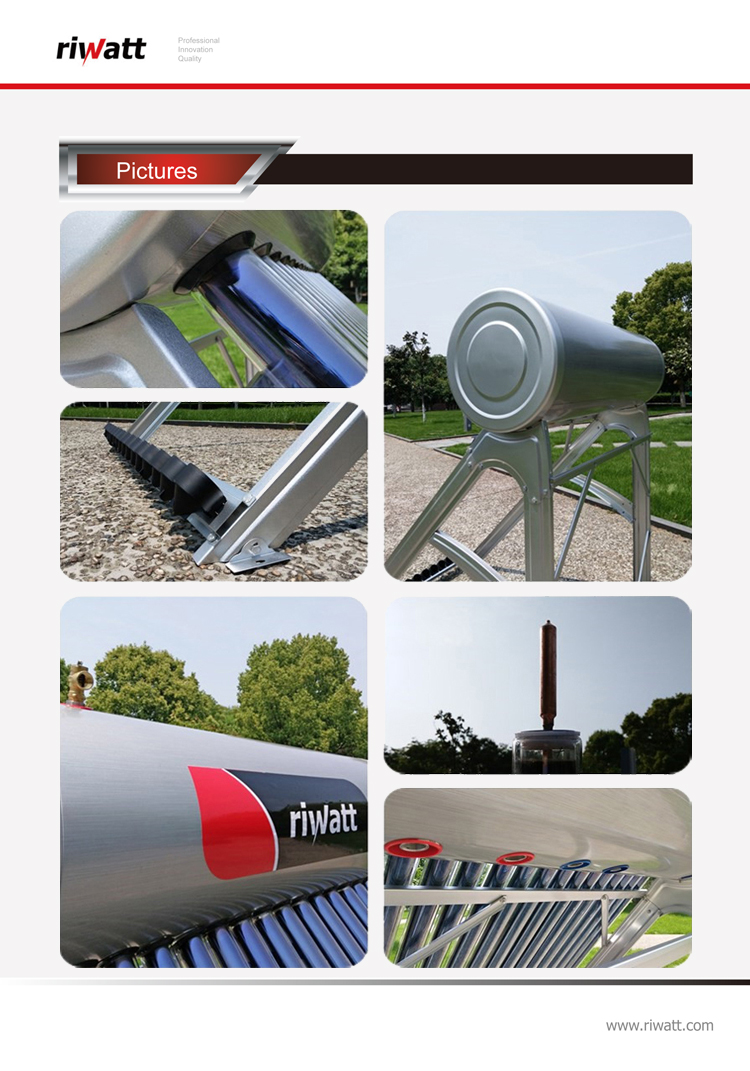

PRODUCT DETAILS

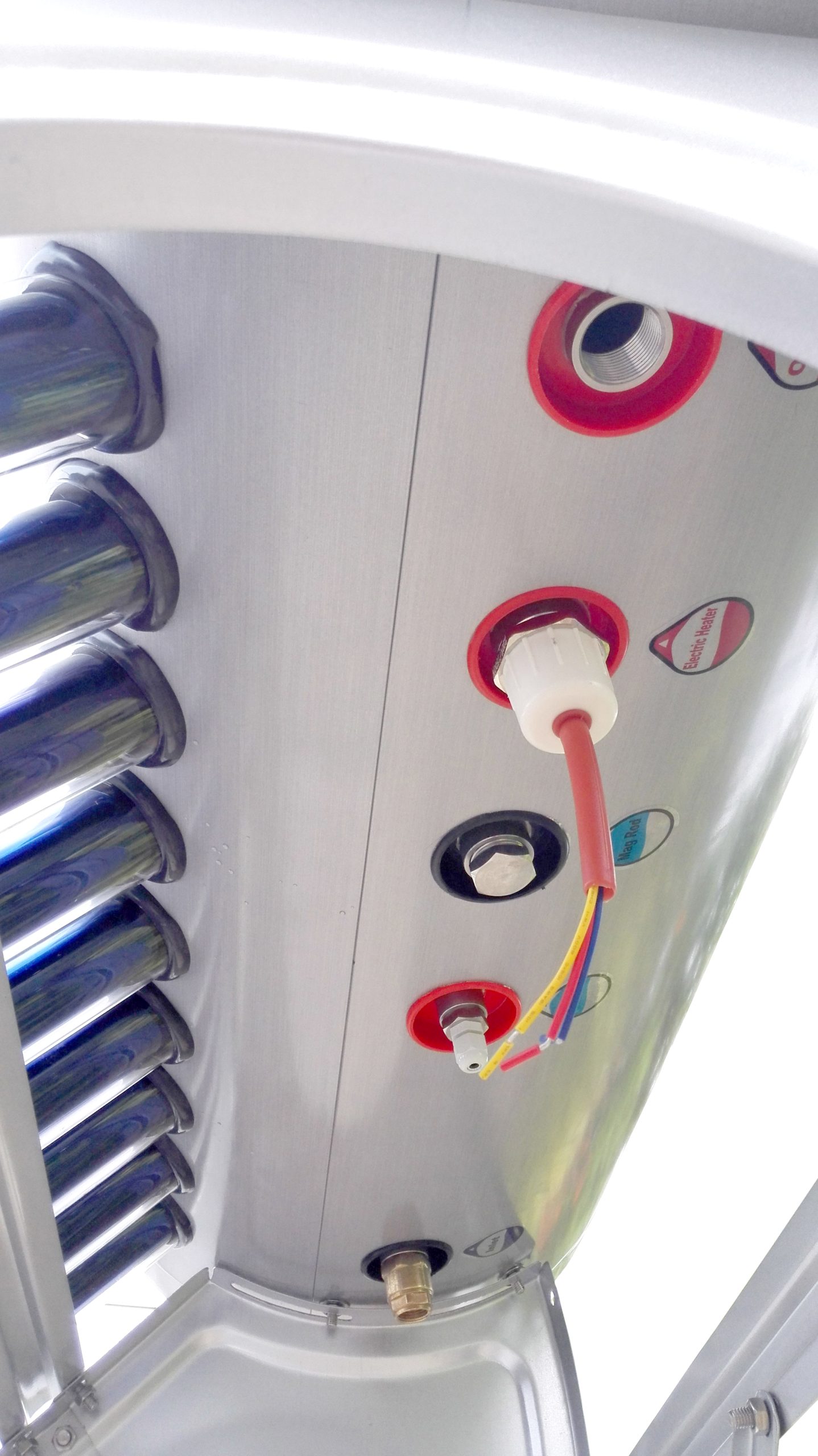

| Integrated Evacuated Tube Heat Pipe High Pressure Solar Water Heater | |||||
| MODEL | Solar Vacuum Tubes | Capacity | Gross Area | Suitable for | |
| Pcs | Size(mm) | (L) | (M2) | (Persons) | |
| 【100L】 | 10 | 58*1800 | 100 | 1.546 | 2~3 |
| 【150L】 | 15 | 58*1800 | 150 | 2.319 | 3~4 |
| 【200L】 | 15 | 58*1800 | 200 | 3.092 | 5~6 |
| 【240L】 | 24 | 58*1800 | 240 | 3.71 | 6~7 |
| 【300L】 | 30 | 58*1800 | 300 | 4.632 | 7~9 |
| Water Tank | COMPACT HEAT PIPE SOLAR WATER HEATER(PRESSURIZED) | ||
| 1 | Material of Outer Tank Shell | Silver Satin Steel Plate | |
| 2 | Material of Inner Tank Chest | Food Grade SUS304-2B SS.,1.2mm Thickness | |
| 3 | Water Tank Diameter | 【470/360 mm】OR【480/380 mm】 | |
| 4 | Water Tank Insulating Layer | High Density Polyurethane,55mm OR 50mm | |
| Vacuum Tube | 5 | Tube Structure | All-Glass Double-Tube Co-Axial Structure |
| 6 | Glass Material | High Borosilicate 3.3 glass | |
| 7 | Tube Size | 58*1800mm * 15 Tubes | |
| 8 | Coating Material | CU/SS-ALN(H)/SS-ALN(L)/ALN | |
| 9 | Sediment Method | Tri-Element Magnetron Sputtering Plating | |
| 10 | Absorb Ratio | > 96% (AM 1.5) | |
| 11 | Thermal Emissivity | ≤ 6 % / (80°C) | |
| Heat Pipe | 12 | Heat Pipe Material | TU1 Copper |
| 13 | Heat Pipe Condenser Size | 【Ø14mm Diameter】【90mm Length】 | |
| 14 | Heat Pipe Body Size | Ø8mm Diameter | |
| 15 | Heat Pipe Pocket | 【HIGH QUALITY COPPER】OR【316 SS】 | |
| 16 | Heat-Transfer-Fins | Premium Complete Type (Super Model) | |
| 17 | Max.Working Temp | -37 ~250C | |
| 18 | Start-up Temp. of Heat Pipe | <=30C | |
| 19 | Working Pressure | 0.7Mpa. | |
| 20 | Testing Pressure | 1.2Mpa. | |
| 21 | Daily Efficiency | 55 % | |
| 22 | Heat Pipe Material | TU1 Copper | |
| Bracket | 23 | Bracket Material | Stronger Galvanized Steel.【10cm Width】 |
| 24 | Bracket Angle | 27°,38°,45°,50° | |
| 25 | Bolts & Nuts | Stainless Steel | |
| MODEL | Vacuum Tube | Capacity | Absorb er Area | Suitable for | Container Load(set) | ||
| Pcs | Size(mm) | Inner Tank(L) | (M2) | (Persons) | 20’GP | 40’HQ | |
| CHR-10 | 10 | 58×1800 | 90 | 1.330 | 2 | 65 | 159 |
| CHR-12 | 12 | 58×1800 | 100 | 1.596 | 2~3 | 58 | 142 |
| CHR-15 | 15 | 58×1800 | 125 | 1.995 | 4 | 49 | 118 |
| CHR-18 | 18 | 58×1800 | 150 | 2.394 | 5 | 40 | 103 |
| CHR-20 | 20 | 58×1800 | 165 | 2.660 | 5~6 | 37 | 89 |
| CHR-24 | 24 | 58×1800 | 200 | 3.192 | 7 | 31 | 77 |
| CHR-30 | 30 | 58×1800 | 250 | 3.990 | 8 | 25 | 62 |

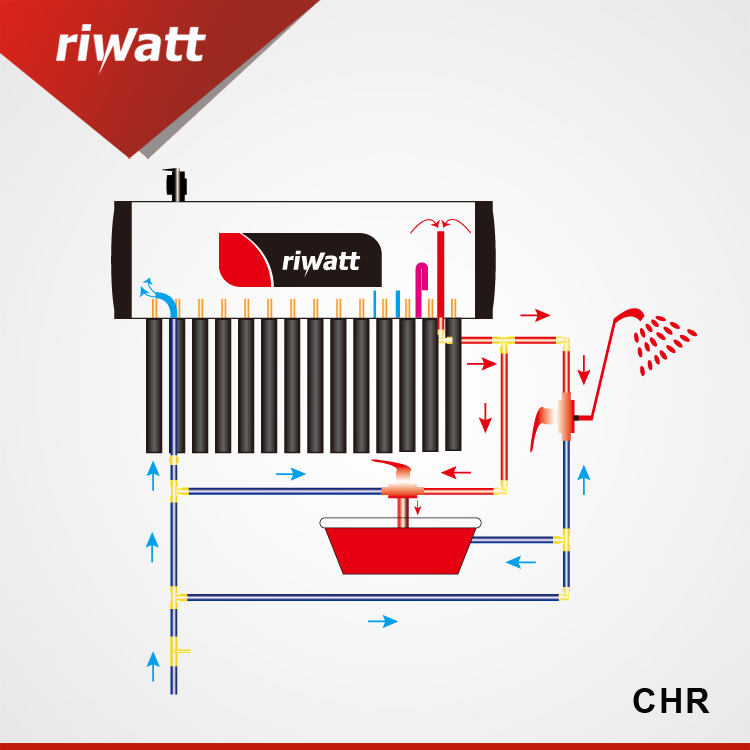

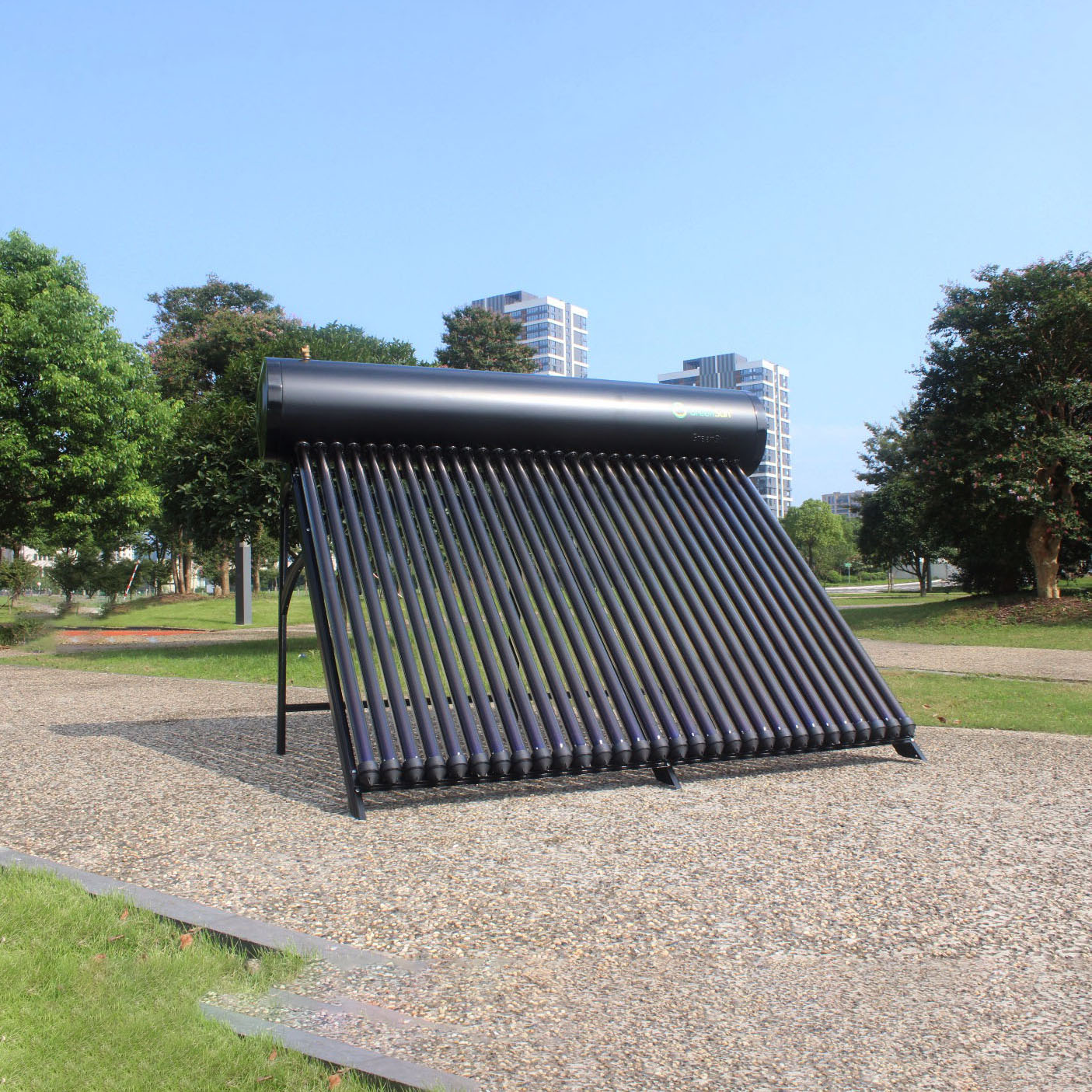

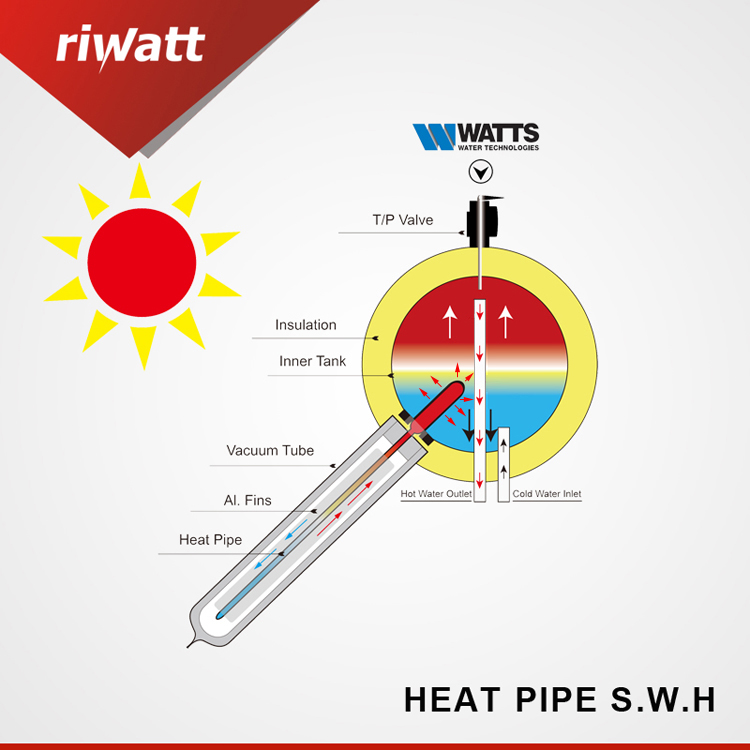

Compact pressurized solar water heater working principle:
1.The pressurized solar water heater tank has no exhaust hole, therefore, it must bear the pressure came from tap water and hot water,when use, the hot water comes out because of water pressure.
2.Vacuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressurized solar water heater tank. In this case, the water inside the tank becomes hot
3.No water in the heat pipe makes the whole system could bear pressure
Compact pressurized solar water heater features:
1.Adopts the best conduction performance metal- heat pipe (copper)
2.Can be used all year round in the cold climate
3.High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized solar water heater tank rapidly
4.The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa
5.No water in the tube, one tube broken don’t influence the system working
6.The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage
7.Dual-purpose brackets for both flat and inclined roof
8.The system is pressurized,it keep a constant temperature of water in the tank, avoid the problem came from water level controller malfunction which could cause water flow out
