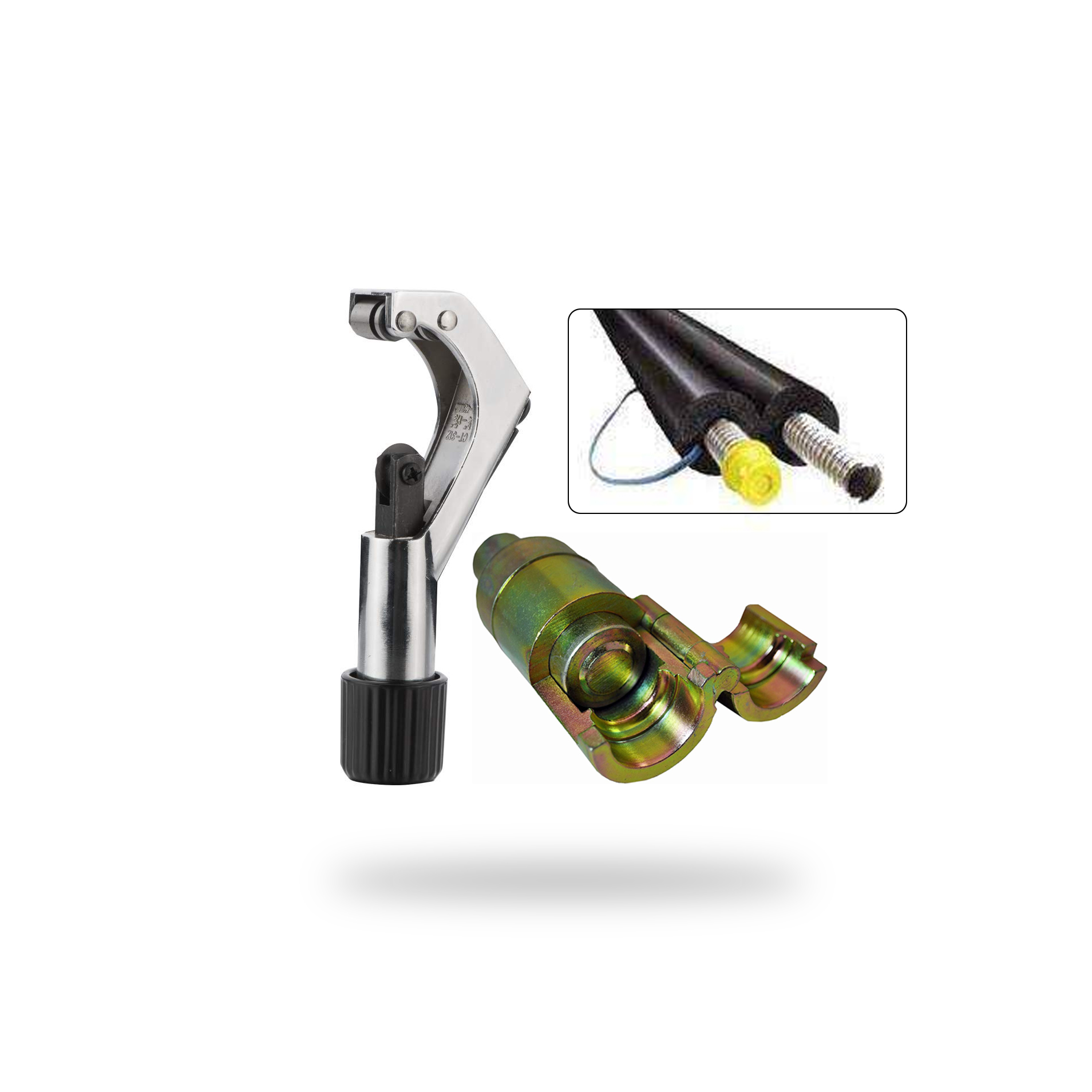

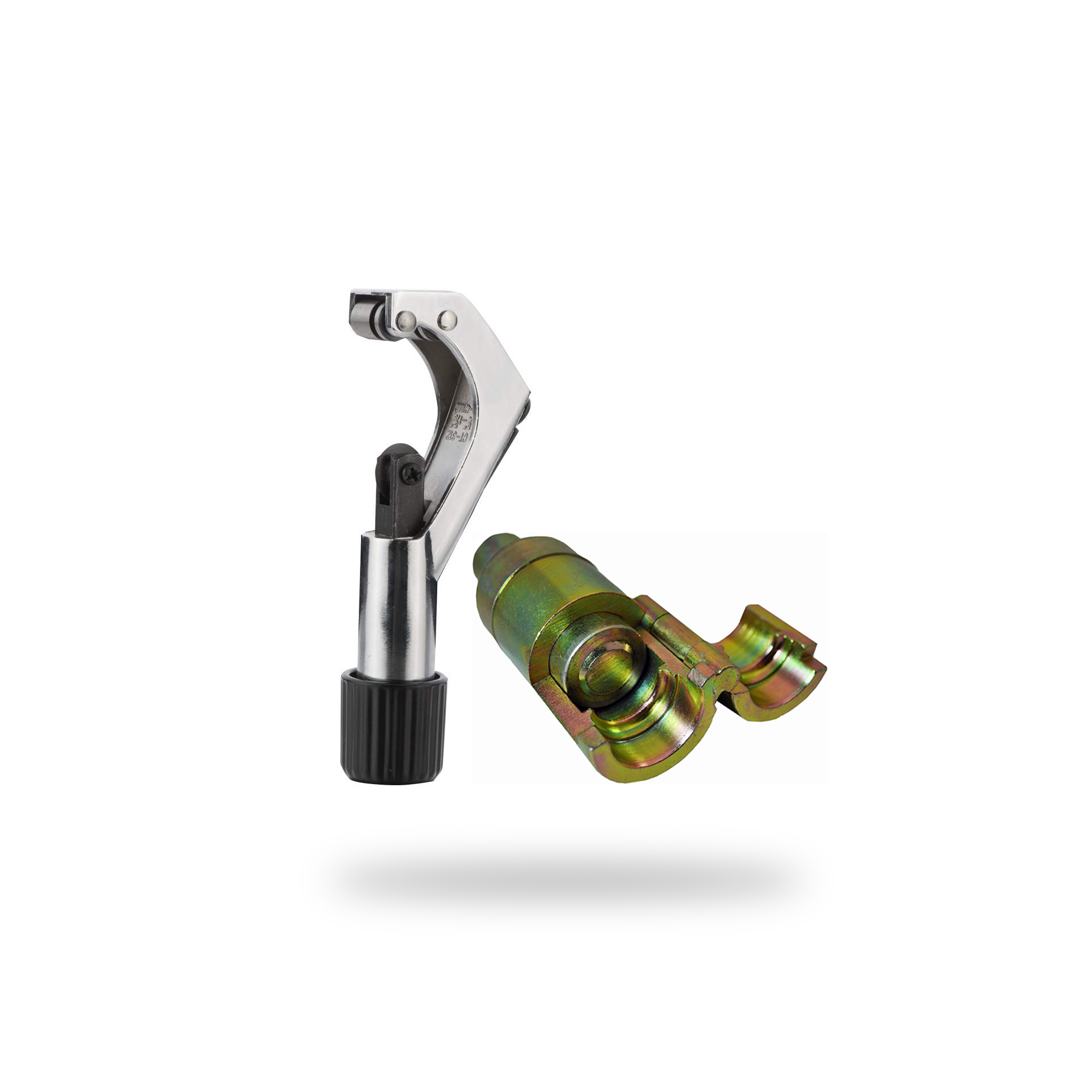

High quality twin pipe pre insulated solar hose cutter and flat tool

PRODUCT DETAILS

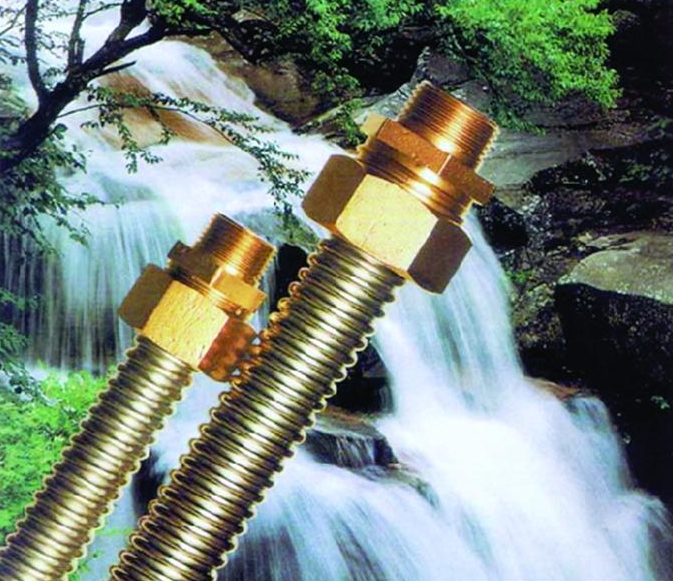

solar hose cutter and flat tool for Pre–insulated flexible stainless steel solar hose with high temperature EPDM insulation pipe, Strong Jacketing protection and 2-core temperature sensor

How to Cut, Connect and Join Stainless Steel Solar Pipe & Fittings?

Step 1 Cut the Solar hose to your desired length with the pipe cutter

Step 2 Put a brass nut onto the solar hose first before, putting the end of solar hose into the flange tool.

Step 3 Use a hammer to flatten the end of the solar hose.
Warning: Very important to get a flat end of the solar hose to realize the perfect sealing performance!

Step 4 Squeeze the stainless steel Cir-clip on the Solar Hose

Step 5

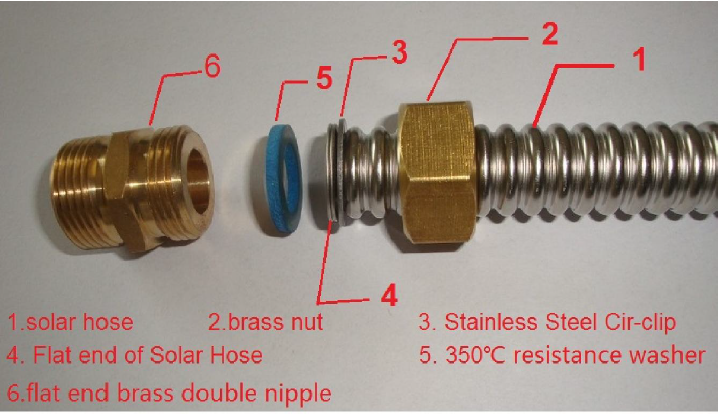

Screw the Brass nut ,washer and the brass double nipple together with spanner.

Step 6

The final Assembly should look like this.
