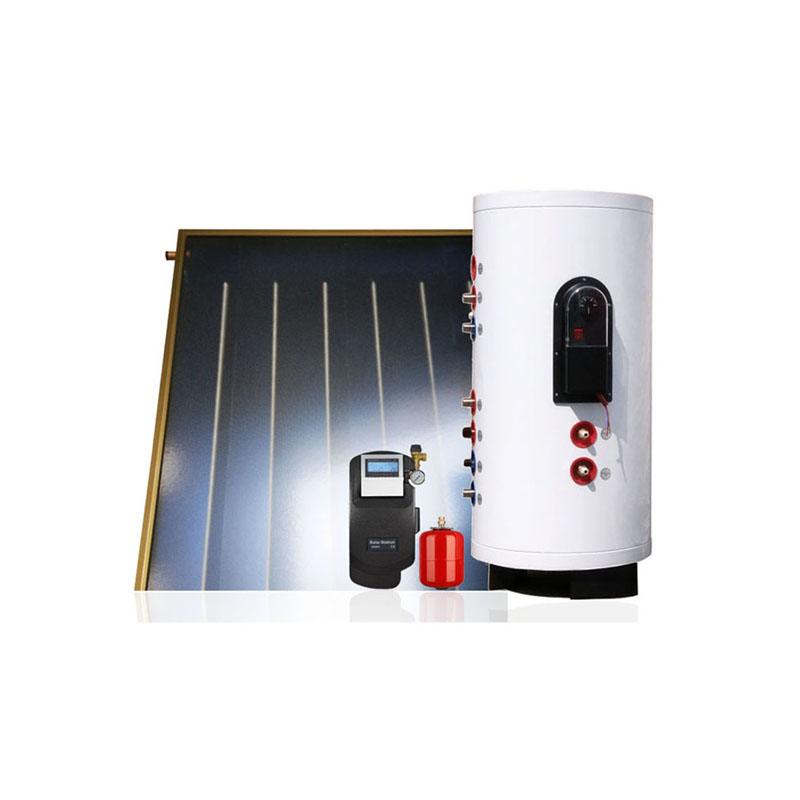

300L 500L Flat Plate Solar Water Heating System

PRODUCT DETAILS

There are two types of active solar water heating system:

1) Direct system:
Tank without coil(heat exchanger), pump circulate household water through the solar collectors and into the home. This type works well in climates where it rarely freezing.

2) Indirect system:
Tank always have coil(heat exchanger), pump circulate anti-freezing heat transfer fluid through the collectors and tank via a heat exchanger. Tank water heated by the heat exchanger. Suit for climate where there have a risk of freezing.

Flat plate solar water heating system characteristic:

1. No disorder water tank on roof
2. Pressure hot water, comfort bathing/washing
3. Collector module designed for freely assemble
4. Completely automatic operation.
5. Can be combined with traditional auxiliary energy resource
6. Suit for climate where there have a risk of freezing.

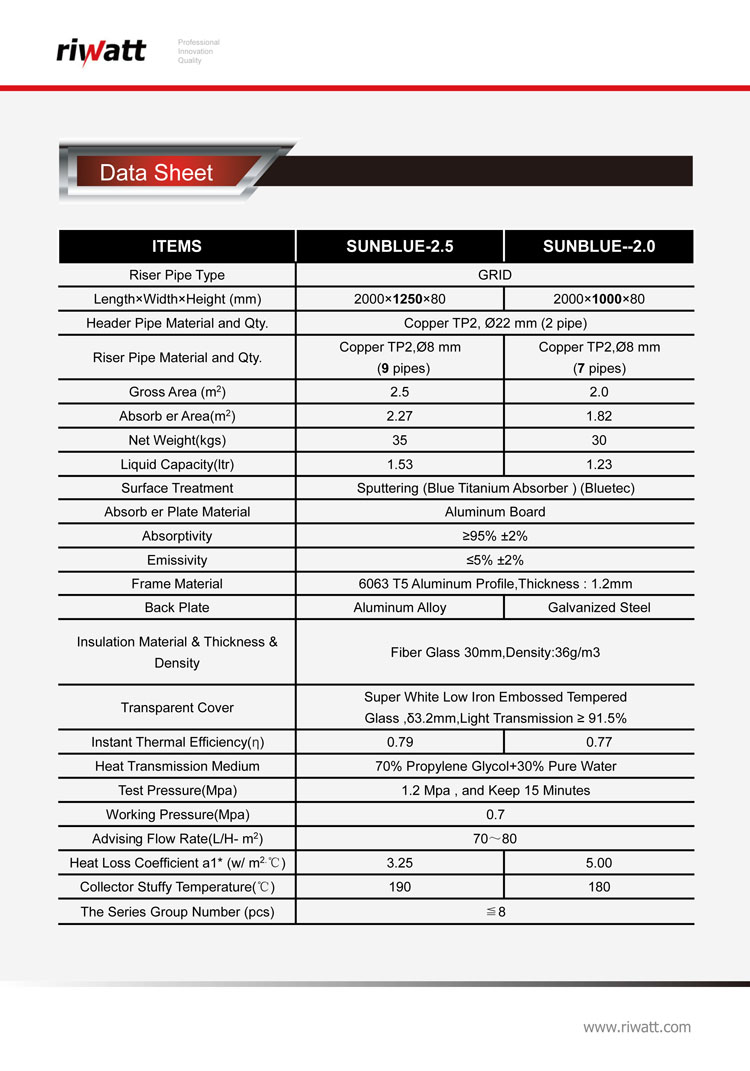

7. Flat plate solar collector Solar Keymark(EN12975) certified, please click here.
8. Available in 100L-1000L system, flexible combination;

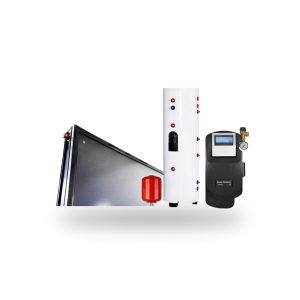

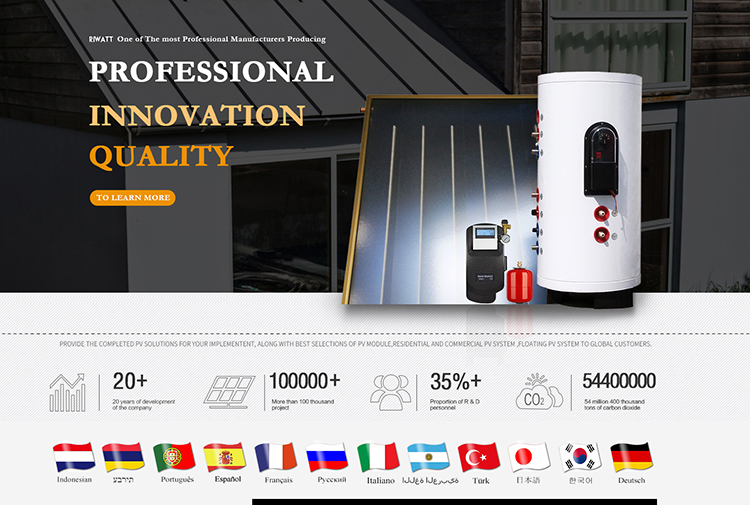

Flat plate solar water heating system main components:

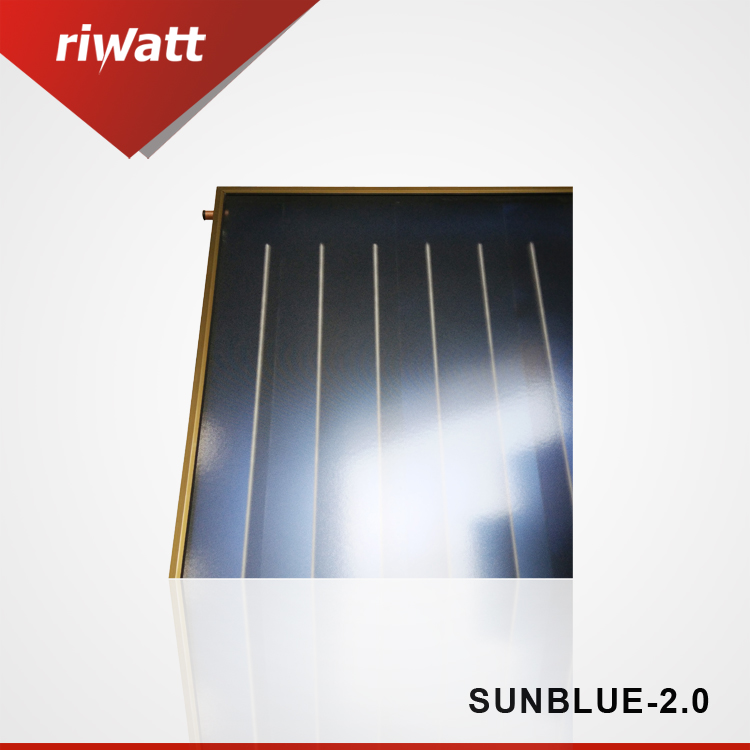

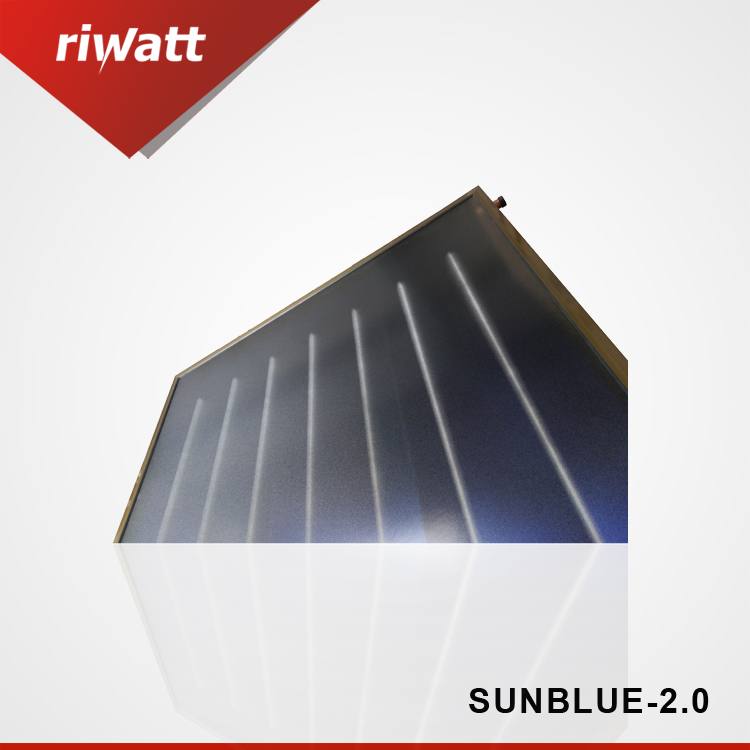

1) Flat plate solar collector.(Blue Titanium Absorb Coating)

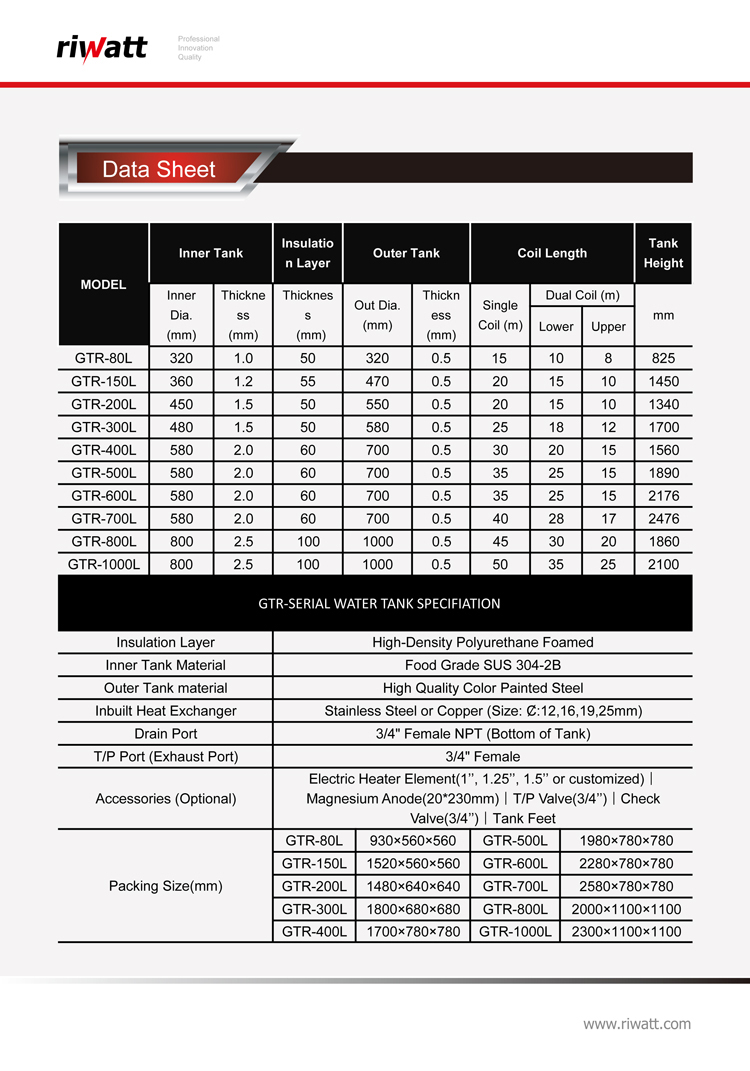

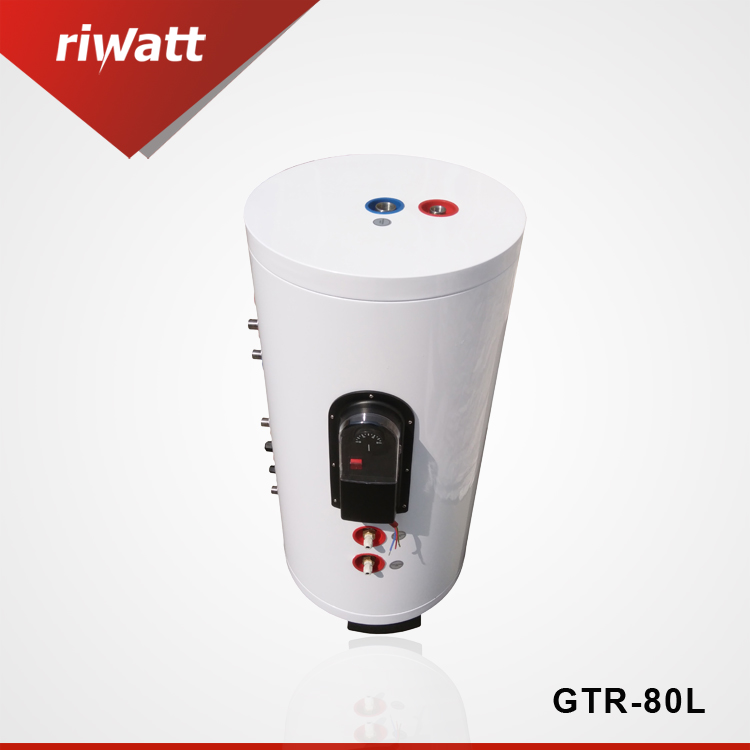

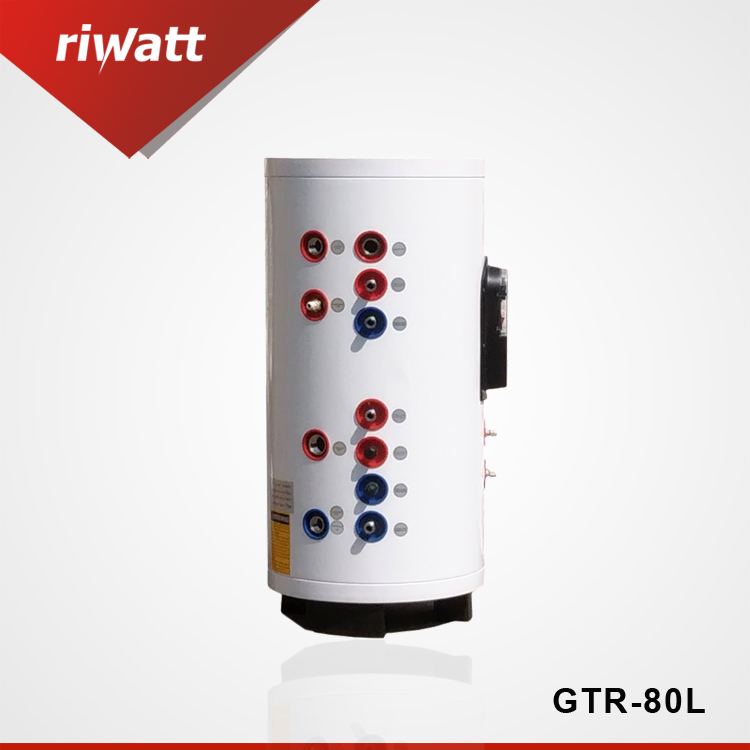

2) Riwatt Pressure water tank from 100L to 1000L.
3) Solar pump station (SR881  or SR962S or customized).

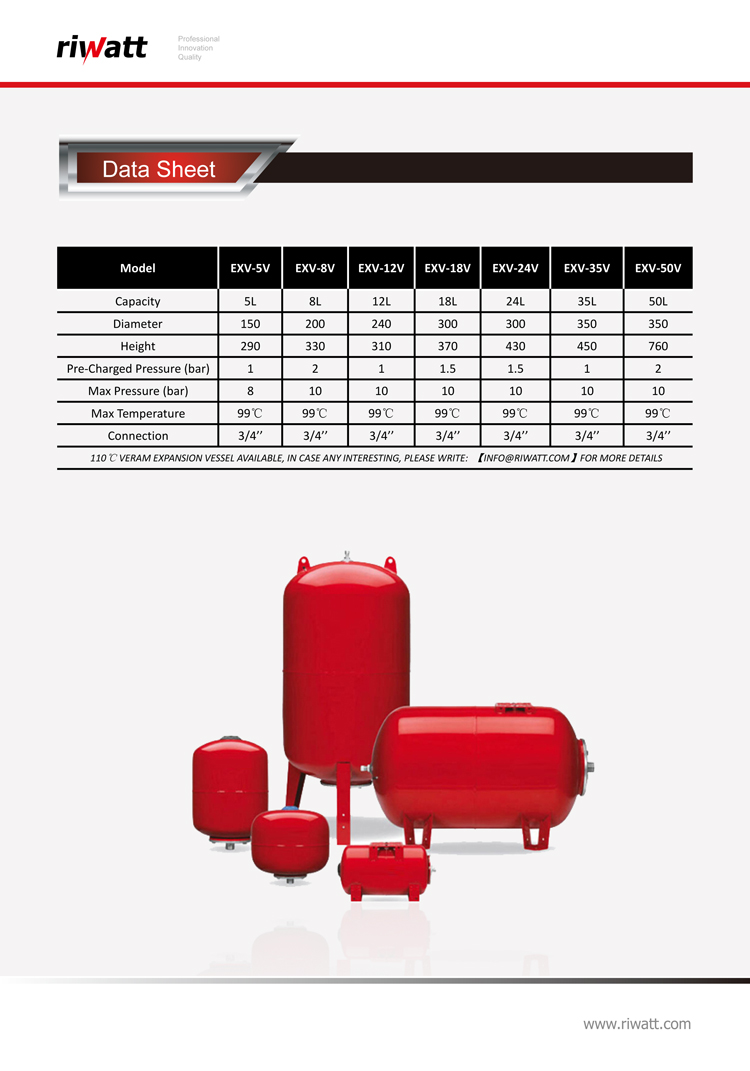

4) Other necessary accessories: Expansion vessel, Check valve, T & P valve, Air vent valve, Pipeline, Connector, etc.
