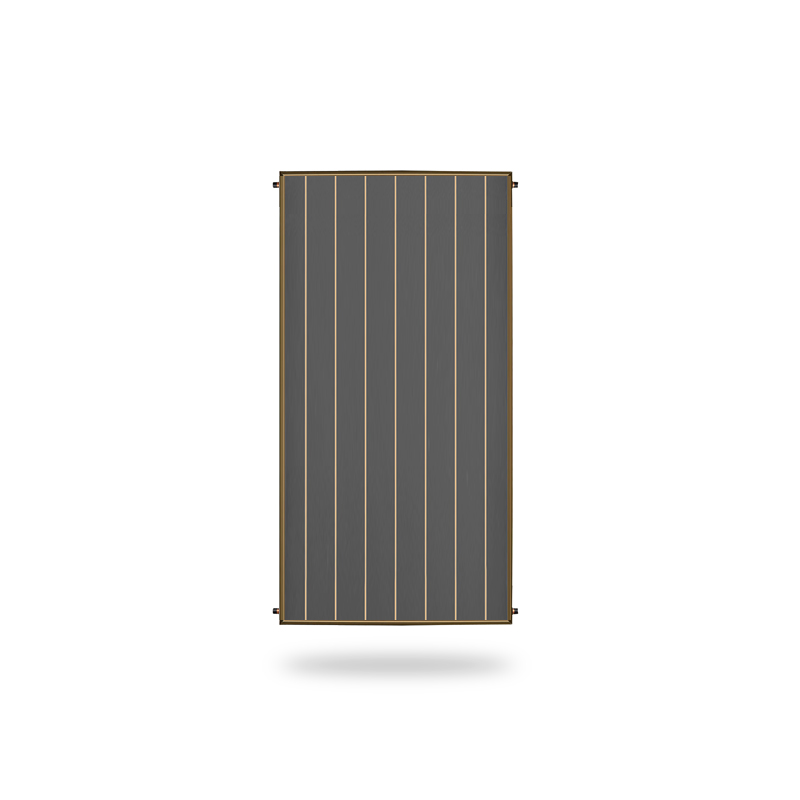

Easy Installation Water Heater Black Chrome Flat Plate Solar Collector

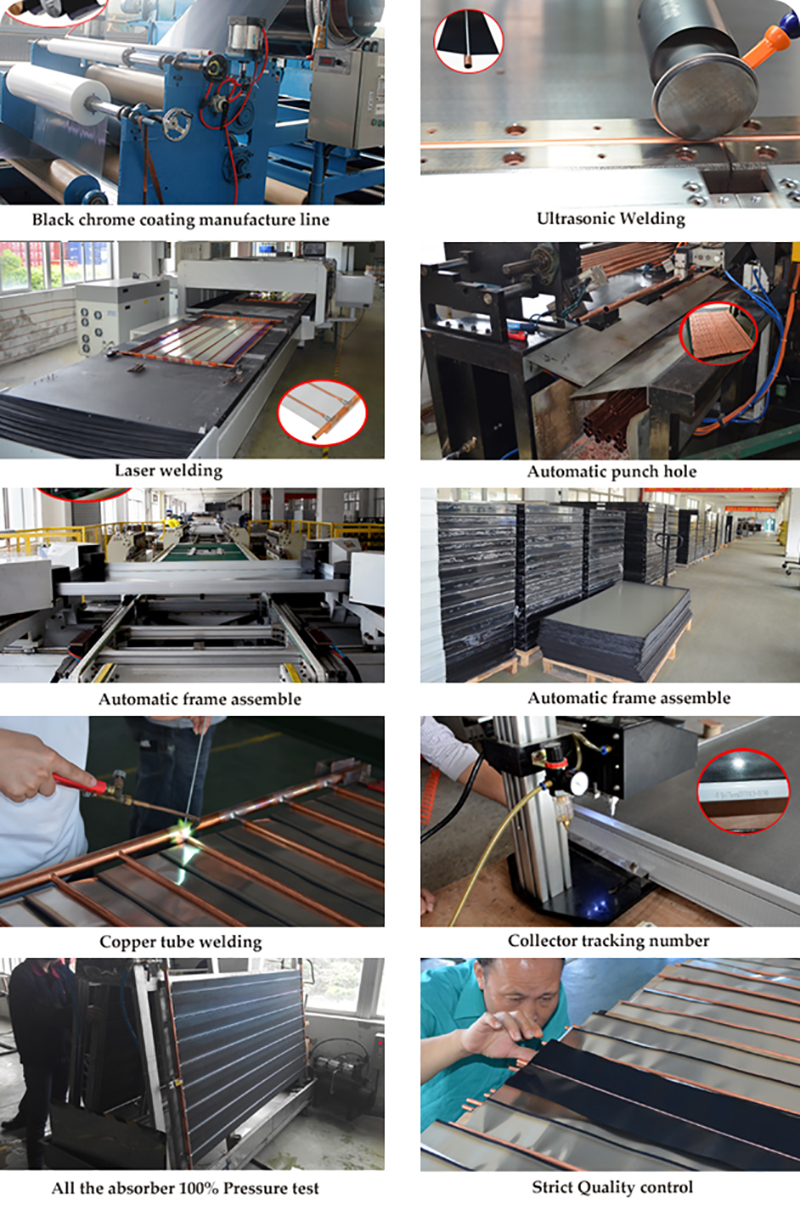

black flat plate solar collectors are manufactured according to European quality standards. by introducing black Chrome coating layer and applying ultrasonic welding technology,have been sold in batches to European markets. Featuring optimal and reasonable structures, fine appearance and easy installation, our products are well combined with buildings and applicable to household and scaled systems.
PRODUCT DETAILS
|
Product name
|
Black Chrome Flat Plate Solar Collector
|
||
|
Description
|
Unit
|
Specification
|
|
|
Dimension (LXW XH)
|
mm
|
2000X1000X80
|
2000X1250X80
|
|
Gross Area
|
m2
|
2.0
|
2.5
|
|
Aperture Area
|
m2
|
1.84
|
2.32
|
|
Absorber Area
|
m2
|
1.76
|
2.22
|
|
Total weight of the empty
|
Kg
|
29
|
34
|
|
Collector connection (Inlet/outlet)
|
mm
|
22
|
22
|
|
Max.Idle temperature
|
℃
|
152
|
152
|
|
Liquid content
|
L
|
1.6
|
2.0
|
|
Operating pressure
|
Bar
|
12
|
12
|
|
Nominal volume flow
|
50-300
|
50-300
|
|
|
Cover |
Cover material
|
Low iron patterned tampered glass
|
|
|
Cover thickness
|
3.2 mm
|
||
|
Cover
|
≥92%
|
||
|

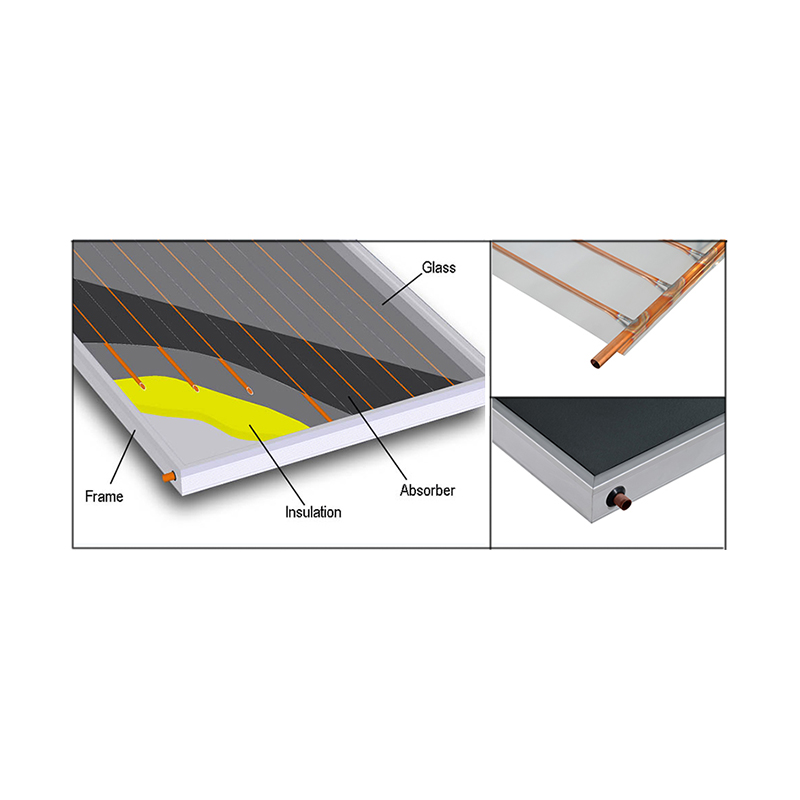

Absorber |
Material
|
Copper sheet strip / Full Aluminium
|
|
|
Surface
|
Black Chrome coating
|
||
|
Absorptivity
|
95%±2%
|
||
|
Emissivity
|
8%±2%
|
||
|
Frame
|
Material
|
Aluminium alloy 6063
|
|
|
Colour
|
Silver or Black
|
||
|
Insulation
|
Material
|
Glass wool (30mm,35Kg/ m3 )
|
|
|
Back plate
|
Material
|
Aluminium sheet (0.5mm)
|
|
|
Glass sealing
|
Material
|
EPDM
|
|
Utilize black chrome flat plate solar collector features:
1. High efficiency, stable system and a long life-span.
2. Low iron textured tempered glass offers the best capability of durability and strength.
3. Direct circulation design with high heat transfer.
4. No anti-freezing liquid ;Easy maintain.(Only used in warm winter)
5. Easy installation,beautiful appearance to combine with different roofs.
Black Chrome Flat Plate Solar Collector Application:
Riwatt Black Chrome Flat Plate Solar collectors can be widely used in residential, military, industrial and mining enterprises,government schools, hotels, restaurants, villas, railway stations, swimming pools,cotton mills, warm water aquaculture plants, greenhouse solar energy warming,etc. Production of domestic water that requires temperature.
The solar central heating system has the characteristics of one-time investment and low operating cost. It is the most economical in the solar collector engineering, gas water heater, electric water heater and oil boiler, and it is safe, reliable, beautiful and pollution-free.
