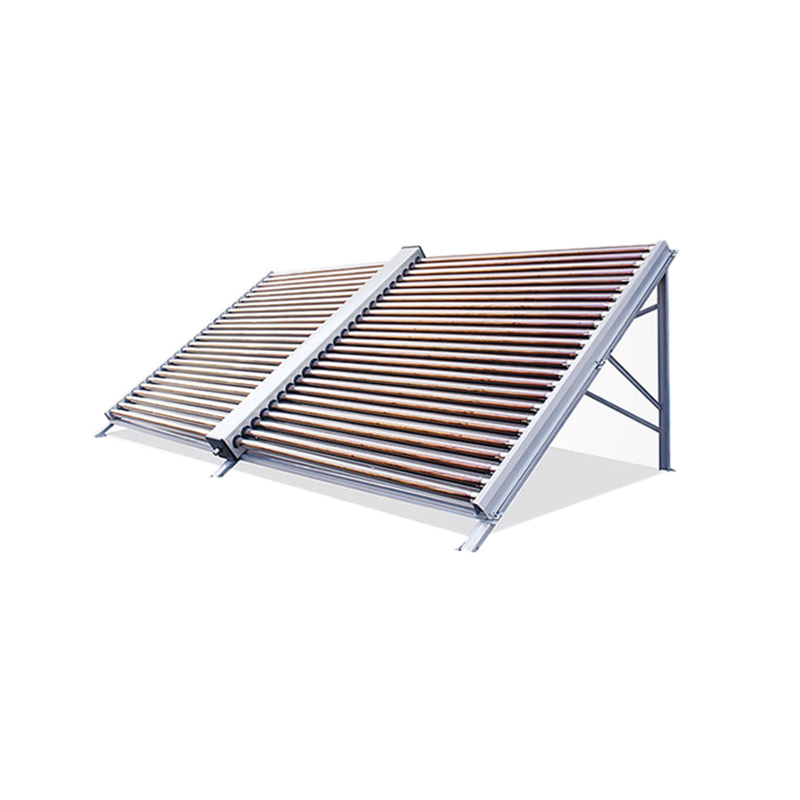

50 Tubes Non Pressure Types of Best Evacuated Tube Solar Collectors Application

Vacuum Tube Solar Collectors is the lowest cost collector, widely used in Schools, Hospitals, Swimming Pool project

PRODUCT DETAILS

best evacuated tube solar collectors Evacuated tube collector consists of a number of sealed glass tubes which will absorb energy from the sun and take to water tank by pump types of solar collectors pdf classification of solar collectors solar collectors and concentrators solar collectors absorb heat from the sun's rays solar panel angle calculator advantages of solar collectors

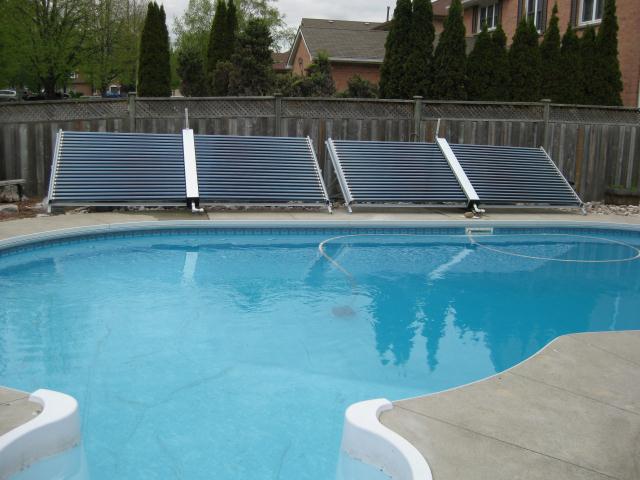

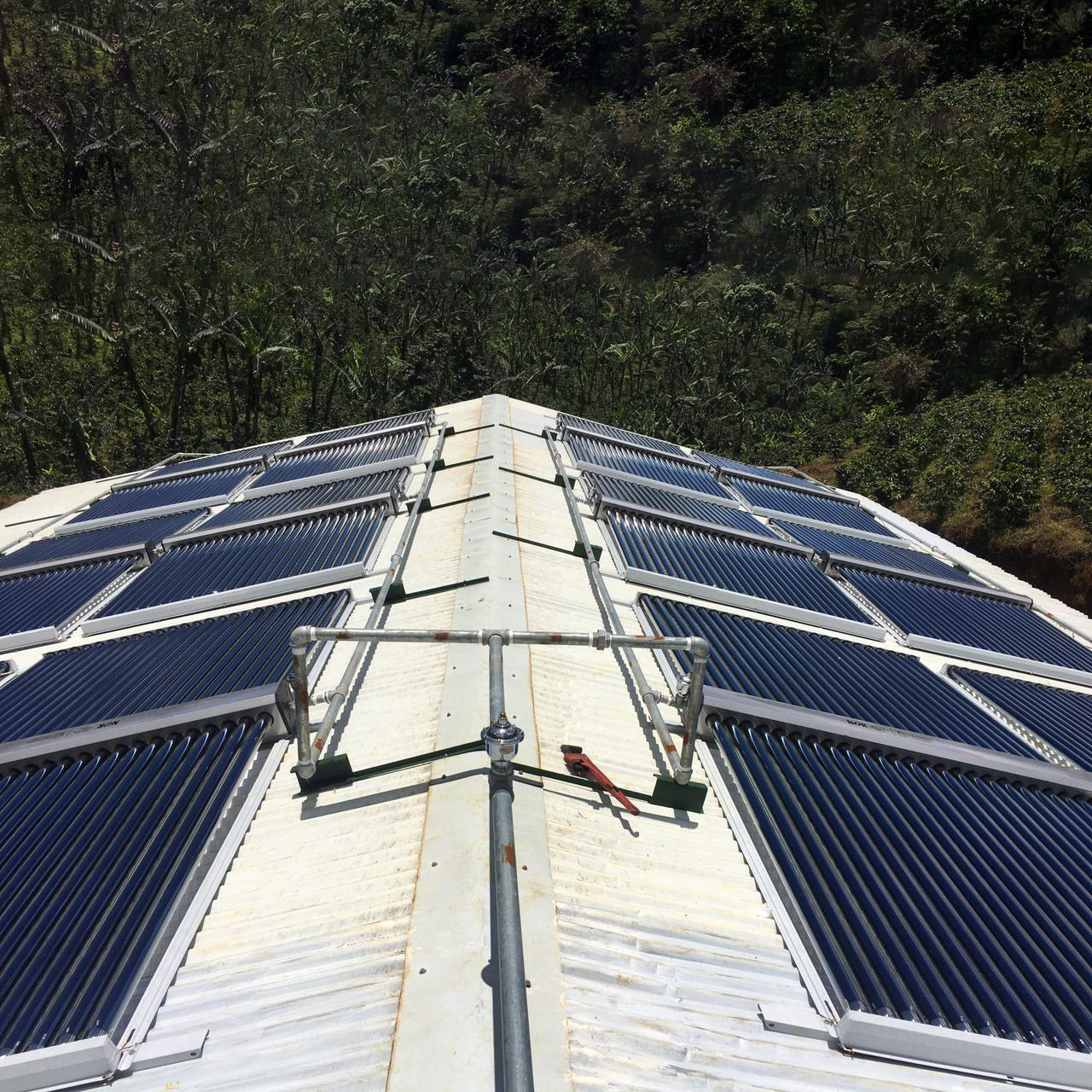

swimming pool solar collector installation solar collector for pool 3000L solar hot water heater in Nicanagua

riwtt simple secure smart

Description: Non-pressure solar collector

Riwatt All-glass vacuum tube solar collectors are widely used for its goodthermal insulation performance, coating with high solar absorption rate and low emission rate ,high heat efficiency etc. It is mainly compsoed of solar vacuum tube, manifold , tail bracket ,seal components and so on,There are mainly two types such as Single side vertical pipe arrangementand double sides horizontal pipe arrangment.The solar collector widely used in hotels, hospitals, schools, armys, factories and other places.

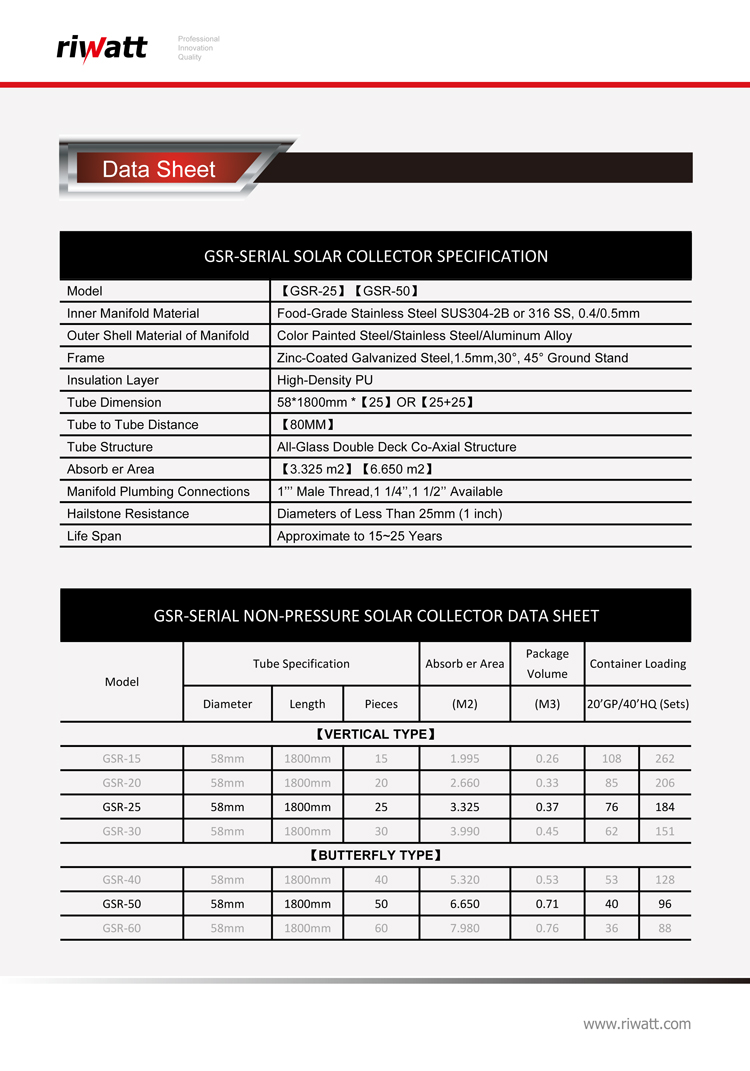

NON-PRESSURE SOLAR COLLECTOR DATA SHEET
Model	Tube Specification			Absorb er Area	Package Volume	Container Loading
Model	Diameter	Length	Pieces	(M2)	(M3)	20’GP/40’HQ (Sets)
【VERTICAL TYPE】
GSR-15	58mm	1800mm	15	1.995	0.26	108	262
GSR-20	58mm	1800mm	20	2.660	0.33	85	206
GSR-25	58mm	1800mm	25	3.325	0.37	76	184
GSR-30	58mm	1800mm	30	3.990	0.45	62	151
【BUTTERFLY TYPE】
GSR-40	58mm	1800mm	40	5.320	0.53	53	128
GSR-50	58mm	1800mm	50	6.650	0.71	40	96
GSR-60	58mm	1800mm	60	7.980	0.76	36	88

NON-PRESSURE SOLAR COLLECTOR SPECIFICATION

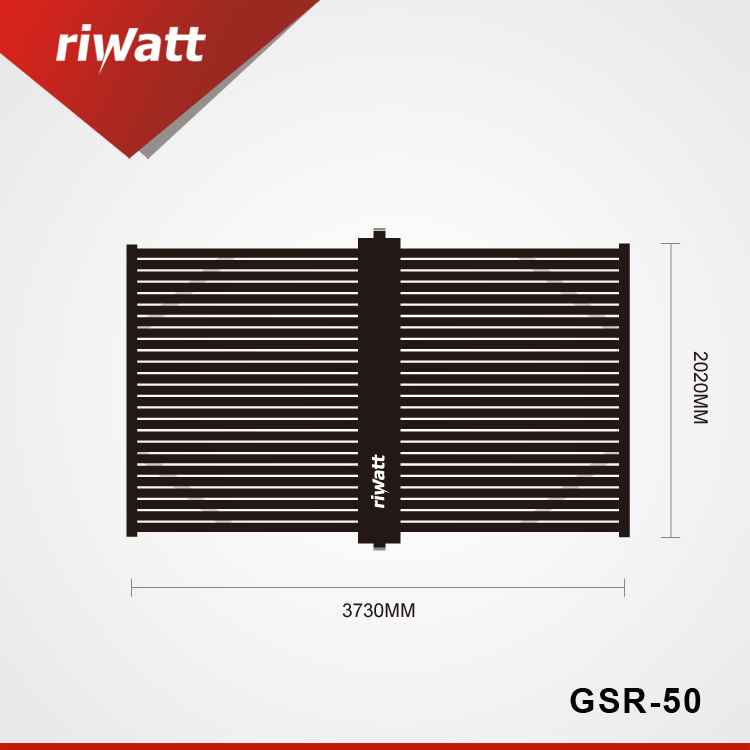

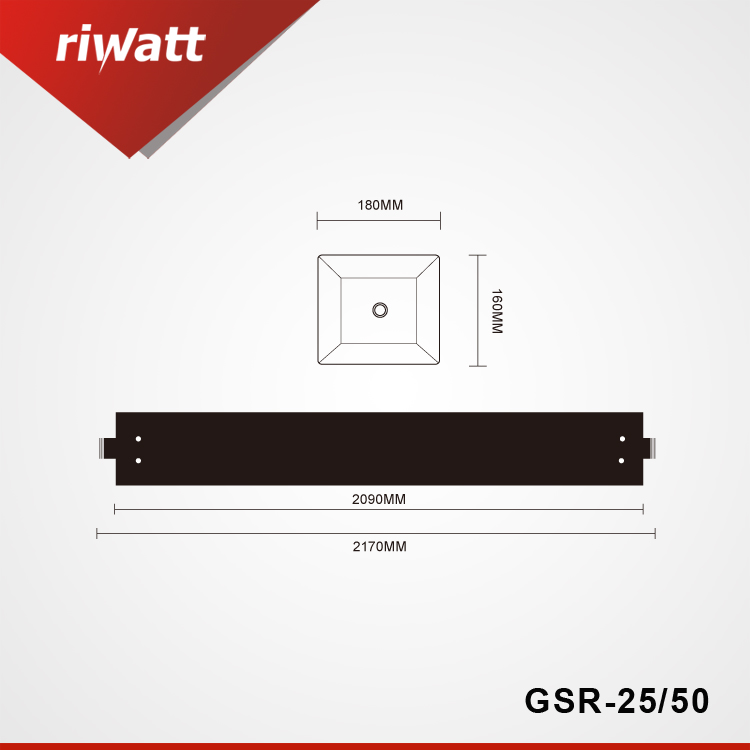

Model	【GSR- 25/50】
Inner Manifold Material	MARINE-Grade Stainless Steel 316L 0.38MM (SUPER ANTI-RUST)
Outer Shell Material of Manifold	SUS-304-2B

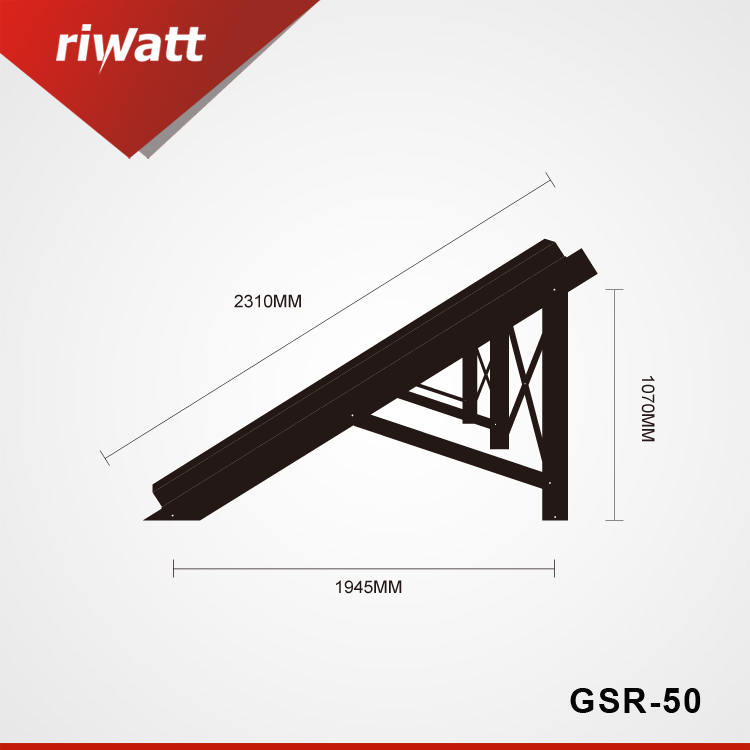

Frame	NEVER RUST A.ALLLY STAND FRAME,1.5mm, 25° Ground Stand
Insulation Layer	High-Density PU
Tube Dimension	581800mm
Tube to Tube Distance	【75MM】
Tube Structure	All-Glass Double Deck Co-Axial Structure
Absorb er Area	【2.660 m2】【6.650 m2】
Manifold Plumbing Connections	1’’’ Male Thread,1 1/4’’,1 1/2’’ Available
Hailstone Resistance	Diameters of Less Than 25mm (1 inch)
Life Span	Approximate to 15~25 Years
