DN 16-3/4” SUS 316L EPDM Corrugated Stainless Steel Twin Solar Hose

PRODUCT DETAILS

Flexible Solar hose is a flexible metal tube in austenitic stainless steel AISI 316L covered by high-temperature resistant EPDM

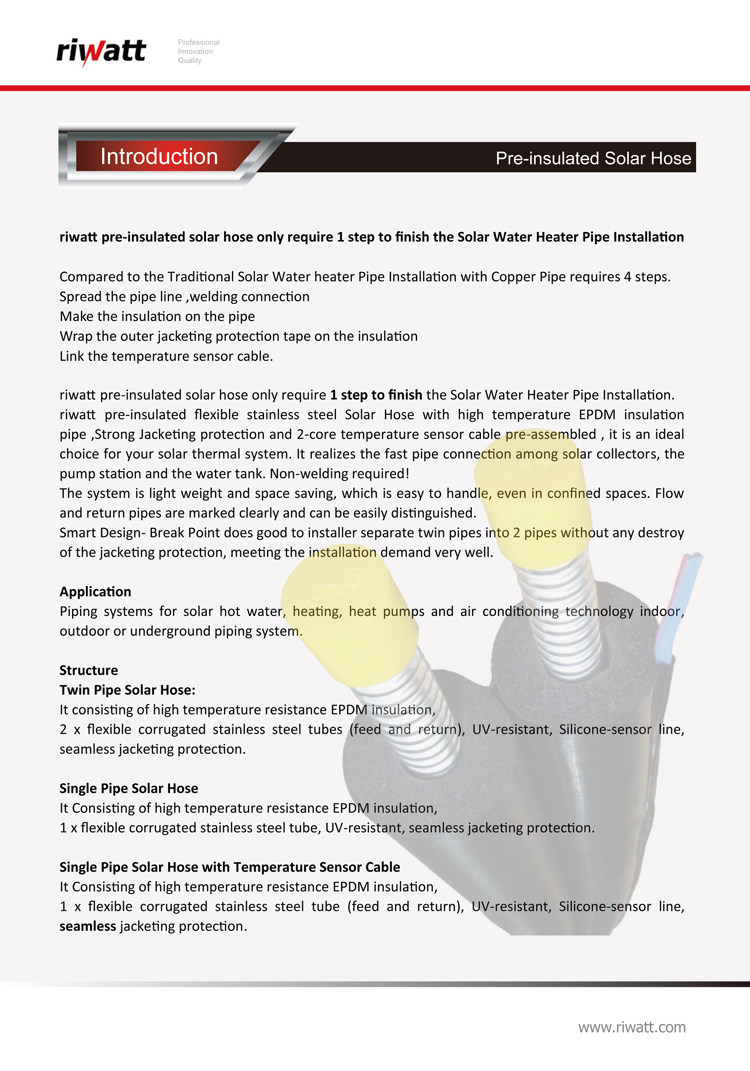

Introduction

riwatt  pre insulated solar hose only require 1 step to finish the Solar Water Heater Pipe Installation.

1. Compared to the Traditional Solar Water heater Pipe Installation with Copper Pipe requires 4 steps.
2. Spread the pipe line ,welding connection
3. Make the insulation on the pipe
4. Wrap the outer jacketing protection tape on the insulation
5. Link the temperature sensor cable.

riwatt Pre insulated solar hose only require 1 step to finish the Solar Water Heater Pipe Installation.

Our pre-insualted flexible stainless steel Solar Hose with high temperature EPDM insulation pipe ,Strong Jacketing protection and 2-core temperature sensor cable pre-assembled , it is an ideal choice for your solar thermal system. It realizes the fast pipe connection among solar collectors, the pump station and the water tank. Non-welding required!
The system is light weight and space saving, which is easy to handle, even in confined spaces. Flow and return pipes are marked clearly and can be easily distinguished.

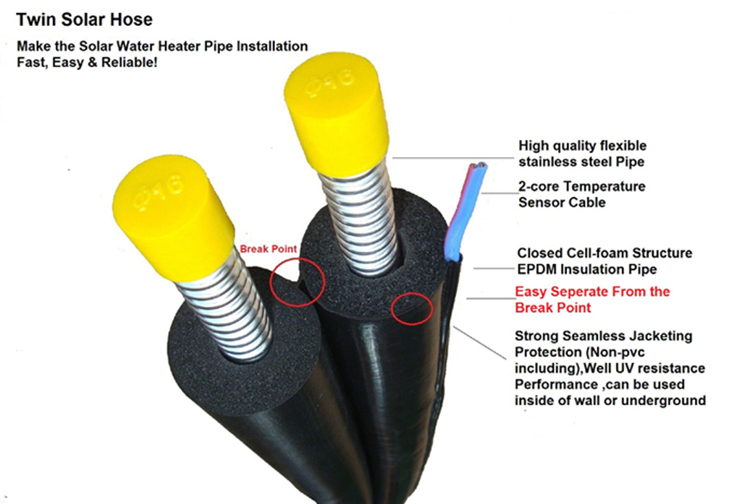

Smart Design- Break Point does good to installer separate twin pipes into 2 pipes without any destroy of the jacketing protection, meeting the installation demand very well.

Application

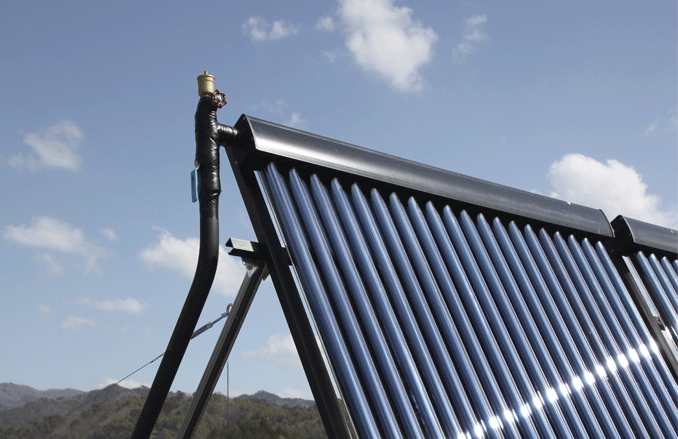

Piping systems for solar hot water, heating, heat pumps and air conditioning technology indoor, outdoor or underground piping system.

Structure

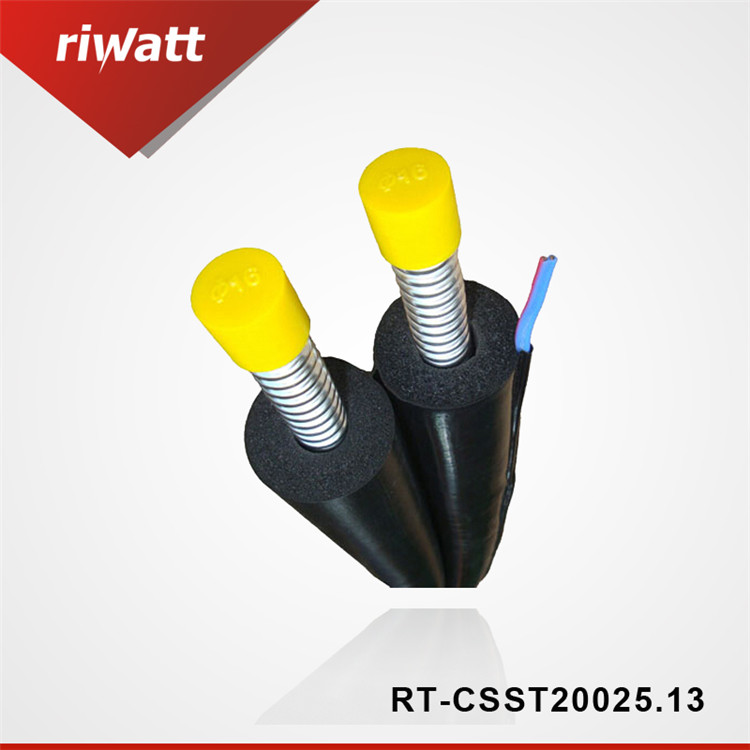

Twin solar hose:

It consisting of high temperature resistance EPDM insulation,
2 x flexible corrugated stainless steel tubes (feed and return), UV-resistant, Silicone-sensor line, seamless jacketing protection.

Single solar hose:

It Consisting of high temperature resistance EPDM insulation,
1 x flexible corrugated stainless steel tube, UV-resistant, seamless jacketing protection.

Single solar hose with Temperature Sensor Cable
It Consisting of high temperature resistance EPDM insulation,
1 x flexible corrugated stainless steel tube (feed and return), UV-resistant, Silicone-sensor line, seamless jacketing protection.

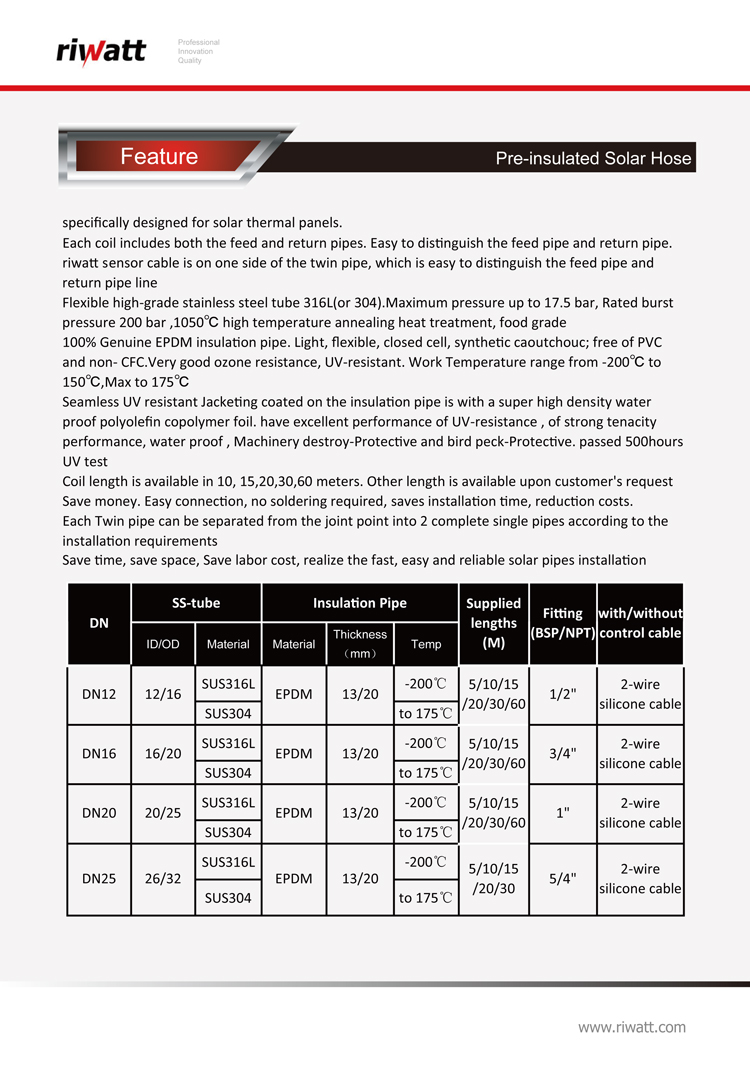

Twin Solar Hose Features:

1. Specifically designed for solar thermal panels.:
Each coil includes both the feed and return pipes. Easy to distinguish the feed pipe and return pipe. Our Sensor cable is on one side of the twin pipe, which is easy to distinguish the feed pipe and return pipe line

2.Flexible high-grade stainless steel tube 316L(or 304).Maximum pressure up to 17.5 bar, Rated burst pressure 200 bar ,1050℃ high temperature annealing heat treatment, food grade

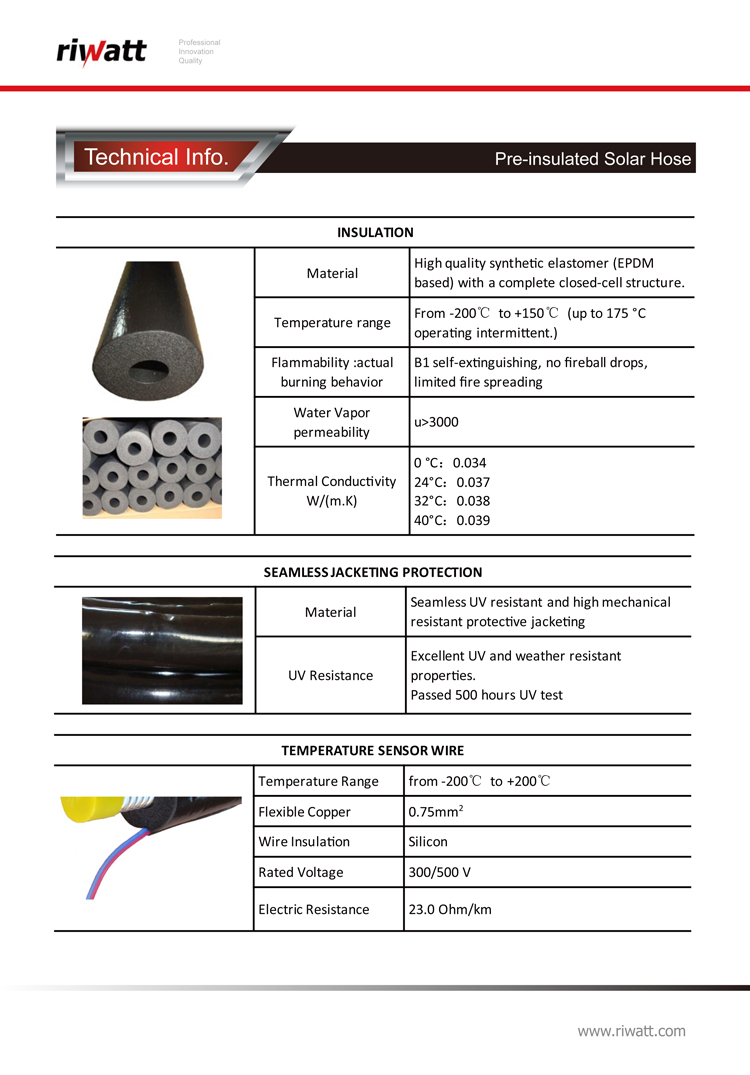

100% Genuine EPDM insulation pipe. Light, flexible, closed cell, synthetic caoutchouc; free of PVC and non- CFC.Very good ozone resistance, UV-resistant. Work Temperature range from -200℃ to 150℃,Max to 175℃

3.Seamless UV resistant Jacketing coated on the insulation pipe is with a super high density water proof polyolefin copolymer foil. have excellent performance of UV-resistance , of strong tenacity performance, water proof , Machinery destroy-Protective and bird peck-Protective.passed 500hours UV test

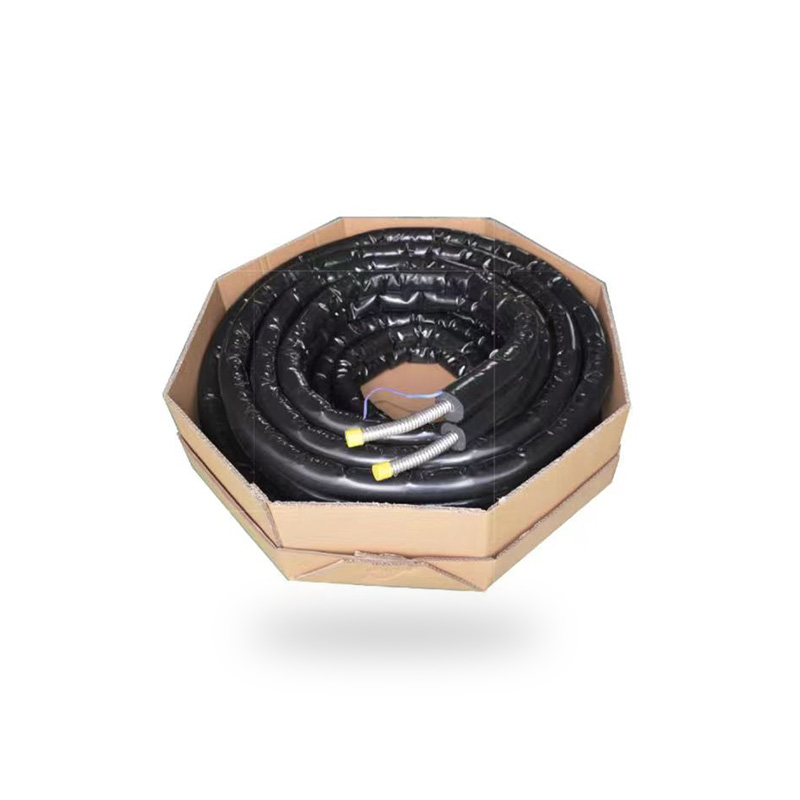

Coil length is available in 10, 15,20,30,60 meters. Other length is available upon customer’s request

4.Save money. Easy connection, no soldering required, Saves installation time, reduction costs.

5.Each Twin pipe can be separated from the joint point into 2 complete single pipes according to the installation requirements

6.Save time, Save space ,Save labor cost,realize the fast , easy and reliable solar pipes installation
