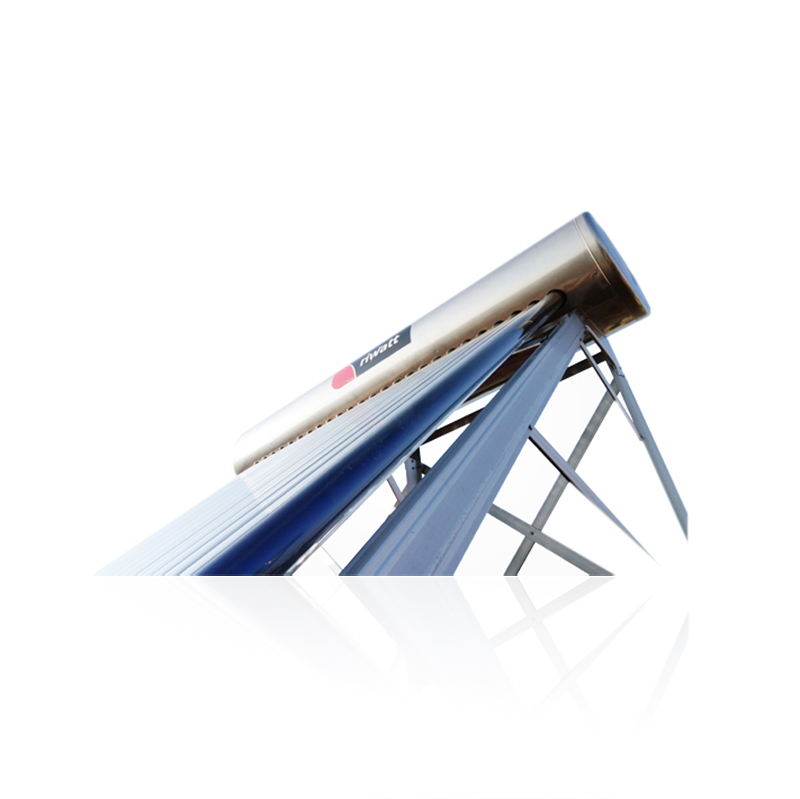

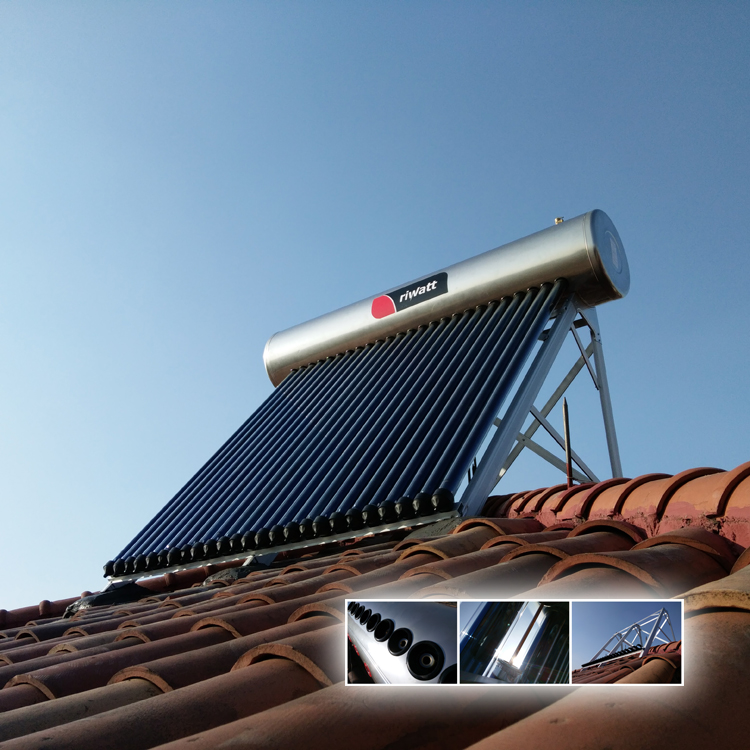

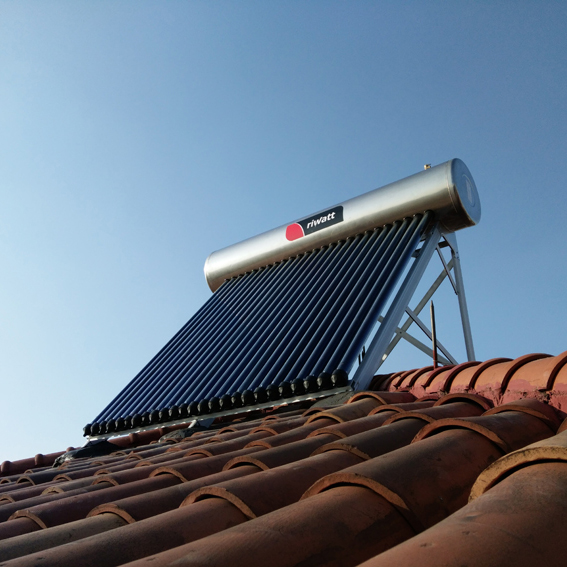

Stainless Steel 316L Compact Heat Pipe Pressure Solar Water Heater for Mauritius

PRODUCT DETAILS

Stainless Steel 316L Material Pressure Solar Water Heater Suitable for Mauritius

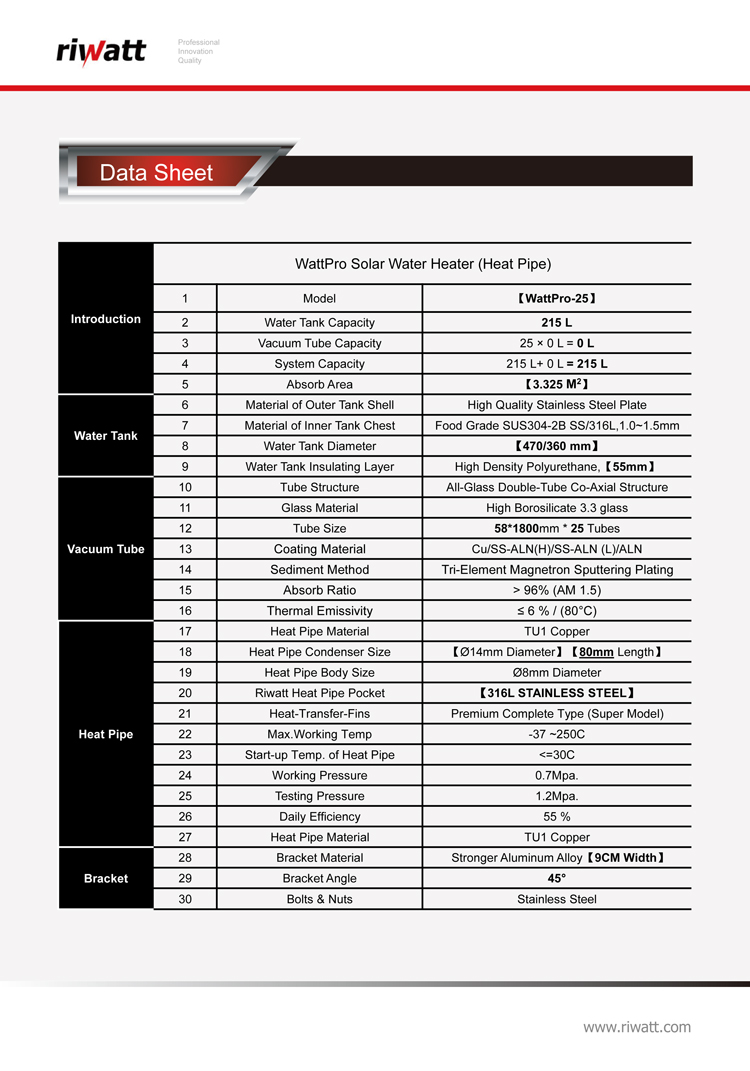

1.Technical parameter

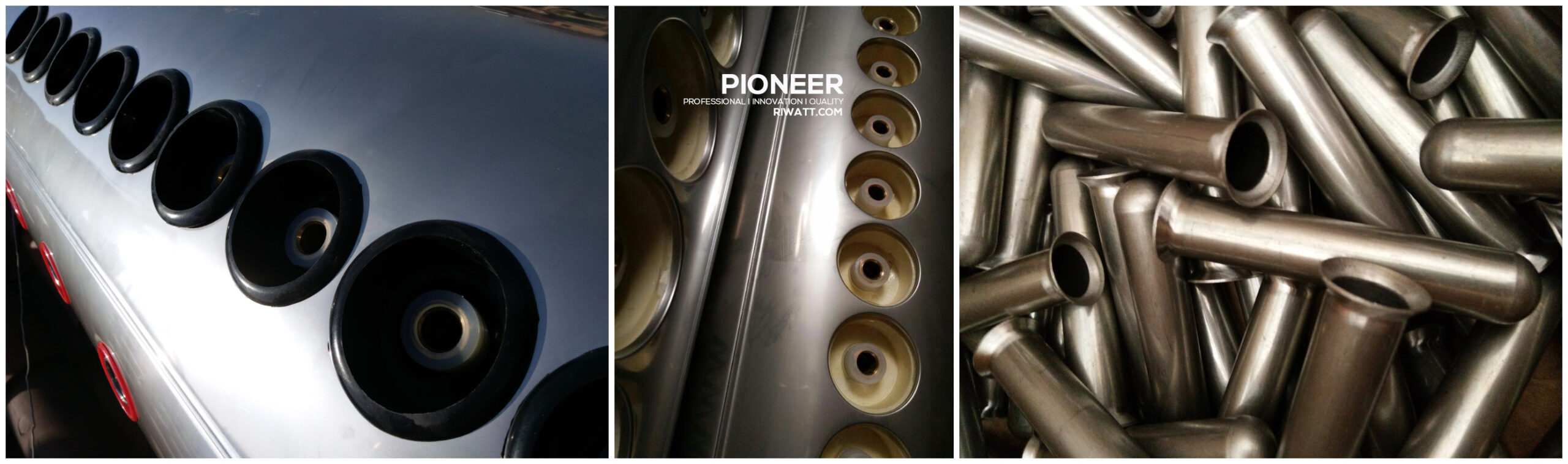

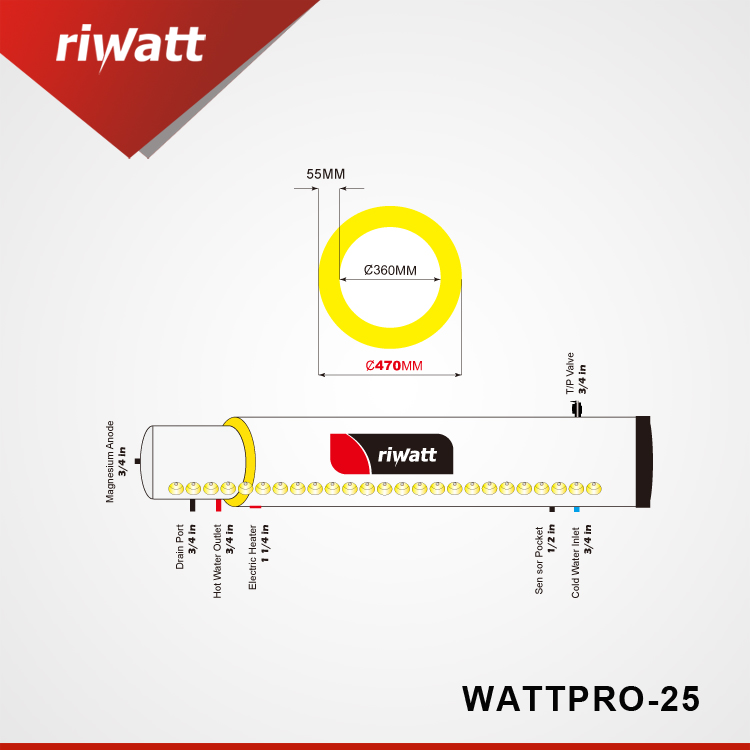

1.1 Storage water tank:

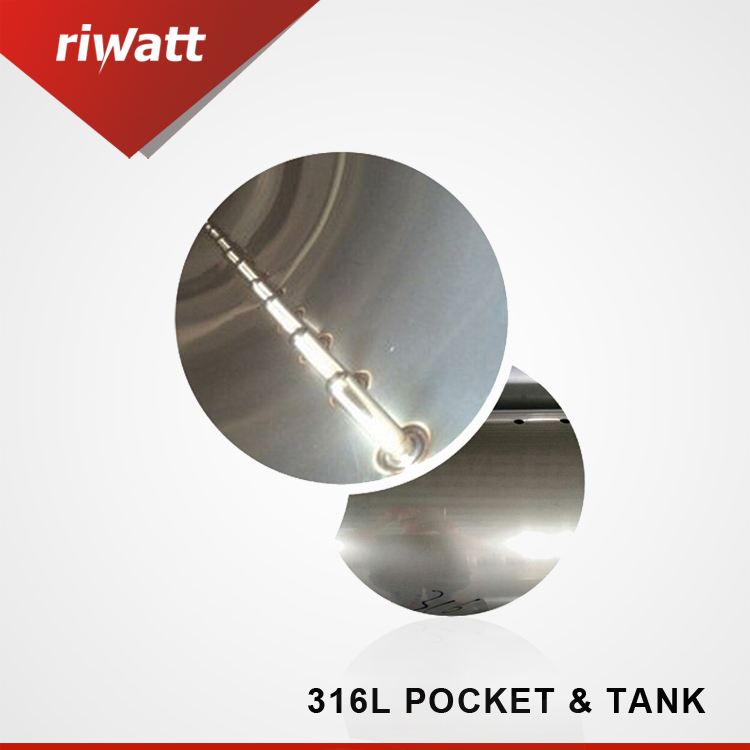

Inner tank: SUS 316L , 1.2~1.5mm
Outer tank: Stainless steel 304, 0.38~0.45mm
Insulation: High density PU foaming, 50mm thickness

1.2 Vacuum tube

Material: Borosilicate 3.3 glass
Selective coating: Cu/SS/ALN triple coating
Heat-absorbing rate: >92%
Emission of heat: <8 %( 80°C)
Vacuum degree: P<5×10-3 Pa
Solar radiance exposure: ≤2.8MJ/M2
Calories absorption: 9.1MJ/M2
Average heat loss: ≤8.6W/ (M3.K)
Pressure-endure ability: 1Mpa
Bearing hailstone ability: hailstone diameter 25mm.
Outer tube diameter and thickness: 58±0.7mm/ 1.6mm
Inner tube diameter and thickness: 47±0.7mm; 1.6mm
Life span: 15 years

1.3 Heat pipe

Material: Copper TU1
Inner heat conductive medium: Re-distilled water & Cu powder
Diameter/ Length of condenser: 14mm/ 7mm

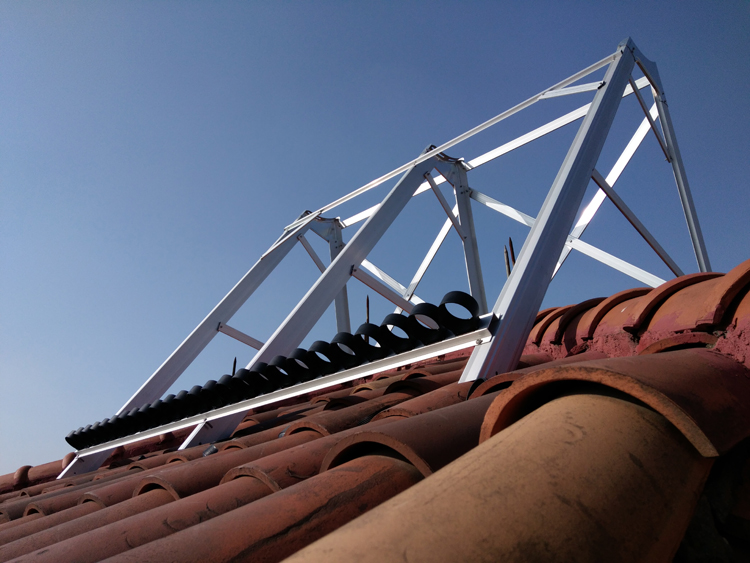

1.4 Support bracket
Material: Aluminum alloy
Thickness: 1.5mm

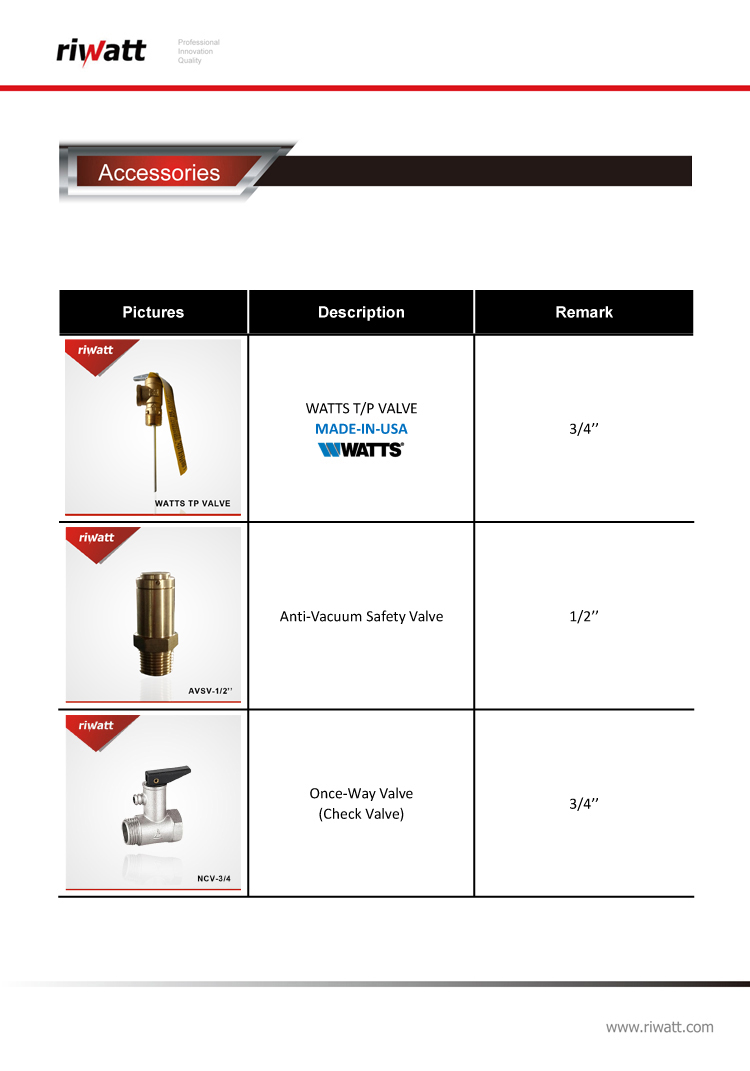

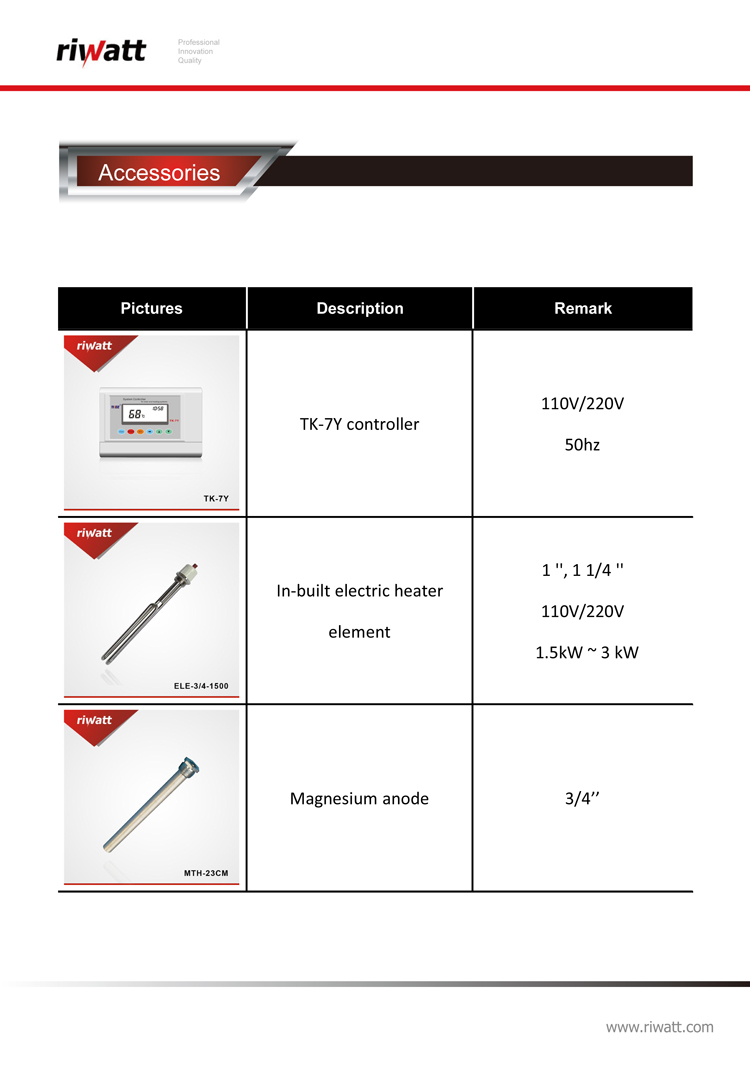

1.5 Accessories

1) Electrical heater, an auxiliary heating element in case of rainy, cloudy or snowy days
2) Magnesium rod, an essetial element to decrease the scaling of water tank
3) Intelligent controller, automatically controls water filling and startup of auxiliary heating element
4) T/P valve, a must for pressurized system, to release the extra pressure and hot water and keep safety and service time

316L Stainless Steel Pressurized solar water heater working principle

-Solar radiation is absorbed and converted into heat energy by the selective layer of vacuum tubes
-Heat energy is delivered to heat pipe through aluminum wings.
-Working liquid in heat pipe absorbs heat and vapors,it moves towards condenser and releases the latent heat of vaporization .

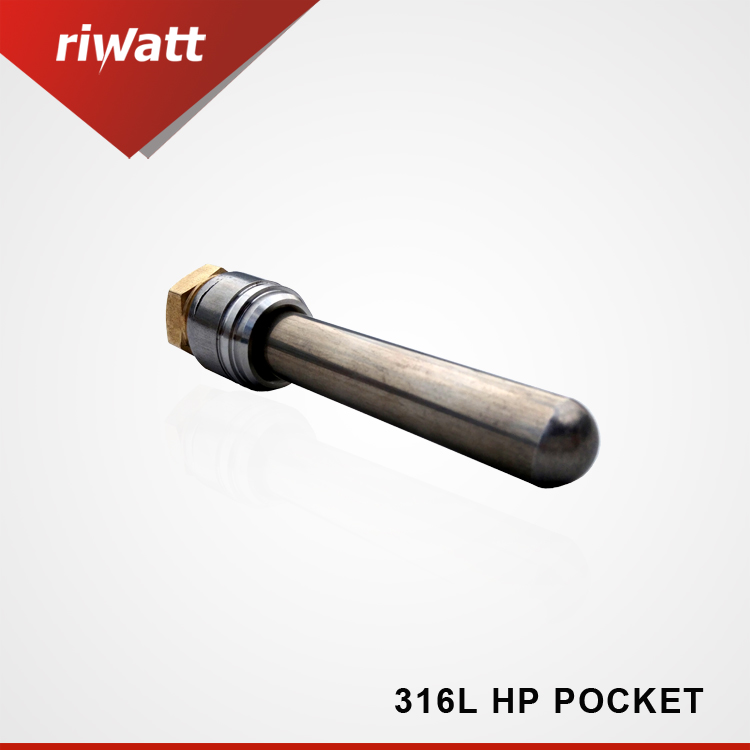

-As condenser indirectly contacts with water through a copper cap(Blind pipe),the heat is passed through ti to the water in tank.
-Cold liquid returns to the bottom of heat pipe and repeats the cycle, at the same time, water becomes hotter and hotter.

KEY FEATURE:

1. Start up quickly, heat pipe transfer the heat energy into the storage tank swiftly.
2. Withstand pressure of max 10bar, can be connected with city water directly, work automatically.
3. The storage tank and the heat pipe mechanical sealed, the solar water heater can still work even withseveral tubes breakage.
4. With reasonable design and choose excellent material, the inner tank is without any breakage afterone hundred thousand time’shigh pressure testing.
5. High density polyurethane foam, well insulation.
6. Can be installed in series and parallel to be a solar hot water system.
7. Can be connected with gas water heater and small boiler, also can preheat the water in advance.8. Can be installed in anywhere ( for example, you can install the solar water heater on the ground ofthe garden, and use the hot water on the third floor).

HEAT PIPE ADVANTAGES:

1. Transfer the heat energy quickly, we use special medium in the heat pipe and it can transfer the heatenergy more than 1000 times faster than copper.
2. Highly efficient absorber, it increase 20% or more than ordinary solar water heater.
3. No water and no water scale inside the evacuated tubes, the tubes will not be cracked even ifduring -40 Degree..
4. Withstand pressure of 0.6Mpa, can be connected with the city water directly.
5. Can still work even with several tubes breakage. The water will not flow out from the storage tank.6. Can be used in sunny days even if in the extreme cold climate.

Product Instruction

PRO” : the new pressurized solar water heater, the cold water inlet connect with city water directly, Can withstand high pressure when it works.(Means if the cold water supply pressure in stable, when open the outlet valve will have hot water in time with same pressure;;)

Attention(importance):

1.During the storm with lightening, please DO NOT use solar water heater and keep the tank full of water during the typhoon/hurricane.;
2.In the summer, if hot water not much used or water temperature is so high, please take some shade to cover part of vacuum tube to reduce the heating;
This solar water heater can use all day for four seasons; the lifetime is more than 15years; During this period, you can take some simple maintenance service as follows:

1).clean the vacuum tubes
If in lots of dust and dry area( North area), the vacuum tubes will have so much dirty on it, it will reduce the reflecting rate for long time. So you need to clean vacuum tubes at least half year or
one year according to the dirt condition. You can use soap water or washing powder water to help clean vacuum tubes. In the rainy areas, it’s no need to do this.

2).clean the incrustation scale:

If the water temperature is too high, or water quality are not good in some areas, or use the water drectly from ground that includes lots of impurity, all of these will cause lots of scale in the tank this will affect the efficiency of solar water heater. So you need to clean the tank exchange magnesium anode every one or two years. This you must ask professional workers to help do it.

Warranty Ordinance

Thank you for using our company solar water heaters. Our company will take service at list for you which according to the rules by the Protection of Consumers’ Rights and Interests: the products can be exchanged free if the products has manufacturing defects or quality issues within7days, warranty is 3/5/7 years for main machine, and 1 year for spare parts.
