25 Tubes Non Pressure 316L Stainless Steel Swimming Pool Solar Collectors

PRODUCT DETAILS

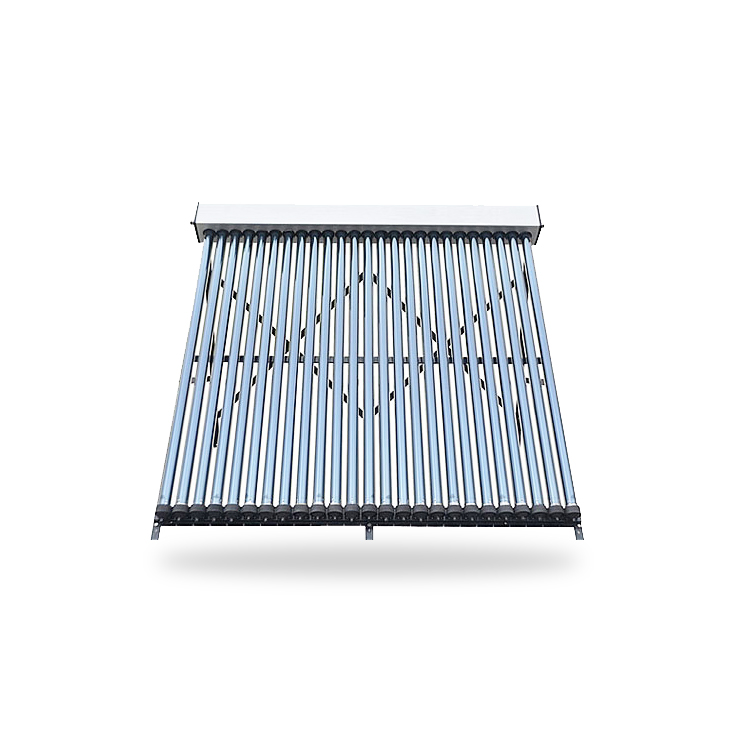

25 Tubes Non Pressure 316L Stainless Steel Swimming Pool Solar Collectors

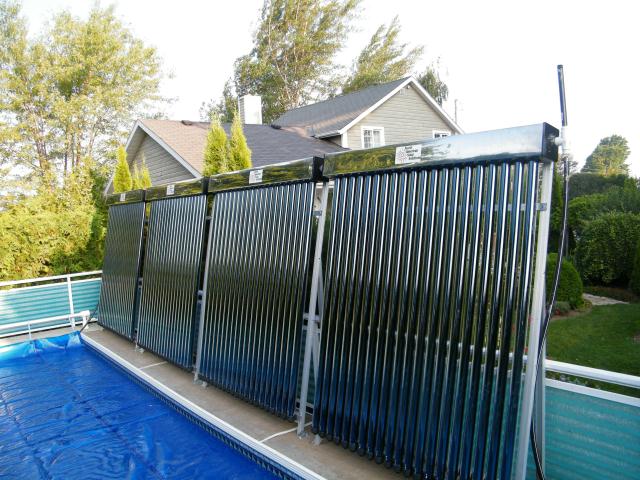

316L stainless steel swimming pool solar collector

swimming pool solar collector

solar swimming pool collector solar pool equipment solar pool heater solar pool accessories solar pool cover above ground how much does solar cost for a pool swimming pool solar collector

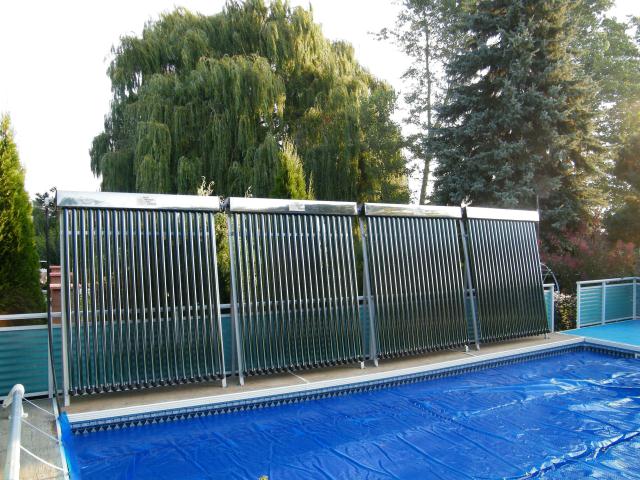

solar water heater for pool

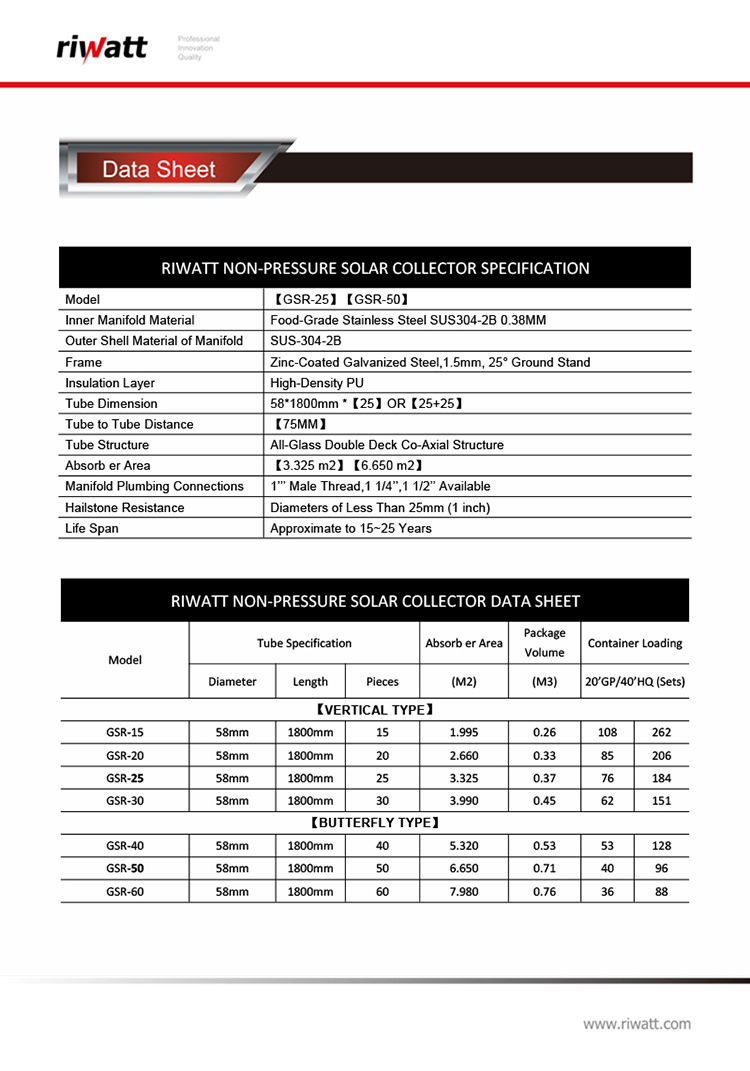

NON-PRESSURE SOLAR COLLECTOR SPECIFICATION

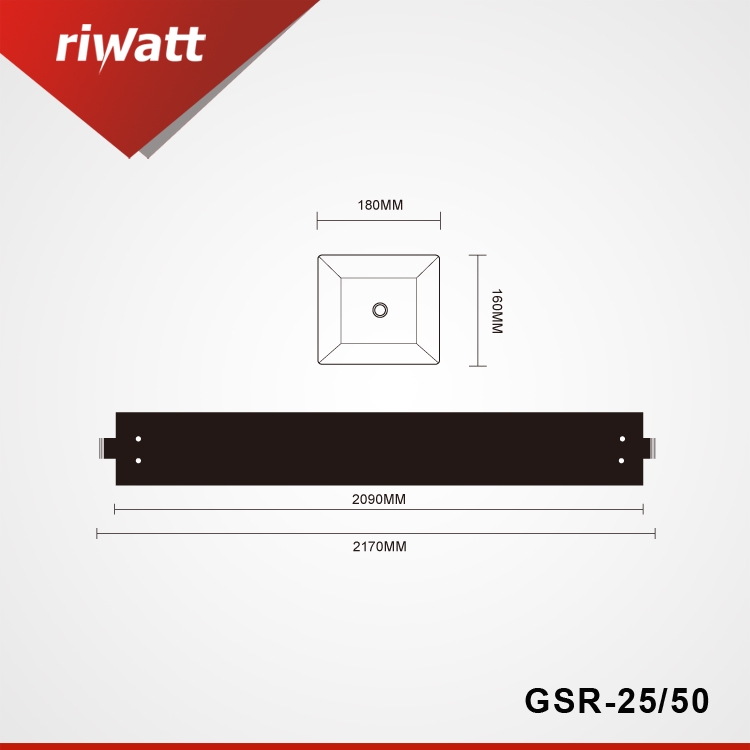

Model	【GSR- 25/50】
Inner Manifold Material	MARINE-Grade Stainless Steel 316L 0.38MM (SUPER ANTI-RUST)
Outer Shell Material of Manifold	SUS-304-2B

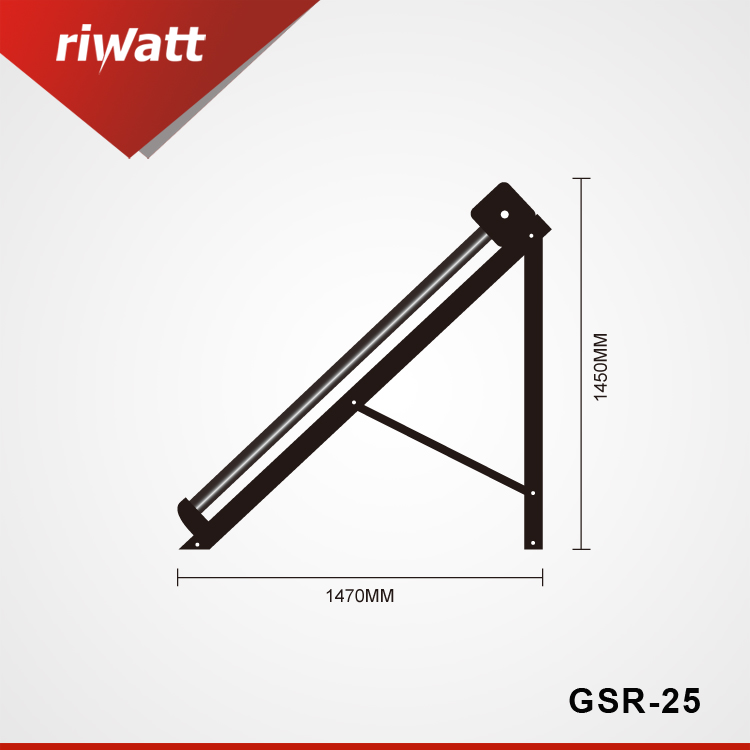

Frame	NEVER RUST A.ALLLY STAND FRAME,1.5mm, 25° Ground Stand
Insulation Layer	High-Density PU
Tube Dimension	581800mm
Tube to Tube Distance	【75MM】
Tube Structure	All-Glass Double Deck Co-Axial Structure
Absorb er Area	【2.660 m2】【6.650 m2】
Manifold Plumbing Connections	1’’’ Male Thread,1 1/4’’,1 1/2’’ Available
Hailstone Resistance	Diameters of Less Than 25mm (1 inch)
Life Span	Approximate to 15~25 Years

NON-PRESSURE SOLAR COLLECTOR DATA SHEET
Model	Tube Specification			Absorb er Area	Package Volume	Container Loading
Model	Diameter	Length	Pieces	(M2)	(M3)	20’GP/40’HQ (Sets)
【VERTICAL TYPE】
GSR-15	58mm	1800mm	15	1.995	0.26	108	262
GSR-20	58mm	1800mm	20	2.660	0.33	85	206

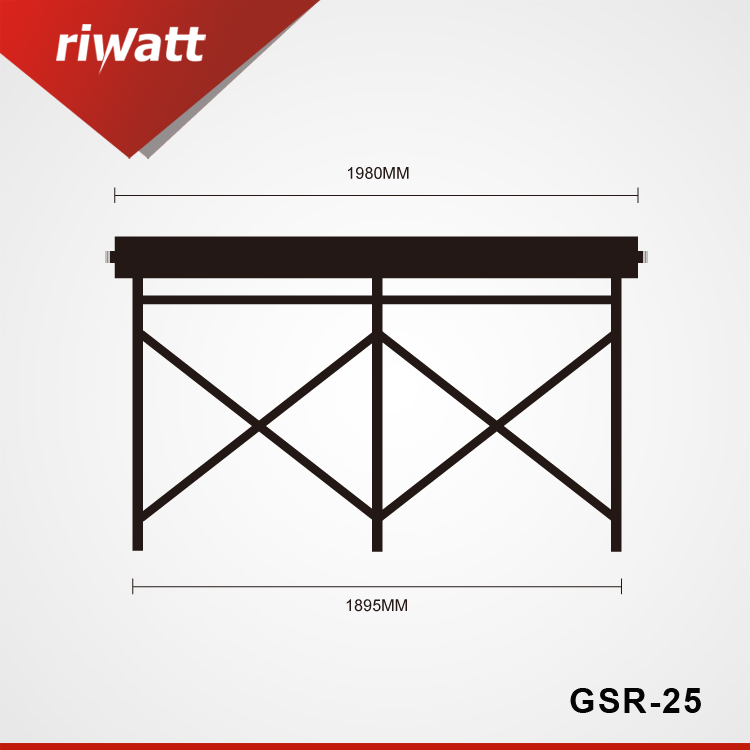

GSR-25	58mm	1800mm	25	3.325	0.37	76	184
GSR-30	58mm	1800mm	30	3.990	0.45	62	151
【BUTTERFLY TYPE】
GSR-40	58mm	1800mm	40	5.320	0.53	53	128
GSR-50	58mm	1800mm	50	6.650	0.71	40	96
GSR-60	58mm	1800mm	60	7.980	0.76	36	88
