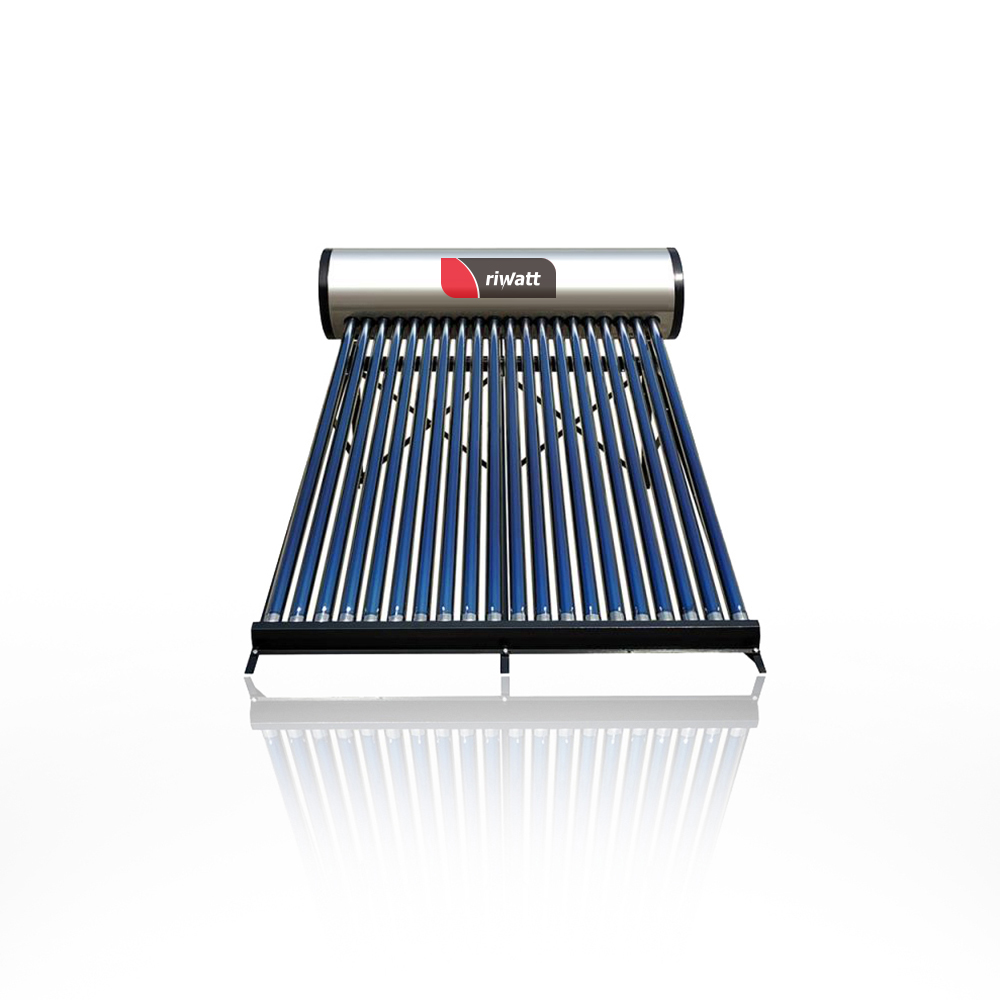

100L 150L 200L 300L Stainless Steel Non Pressure Solar Water Heaters
The stainless steel non pressure solar water heater 200L (solar geyser) is based on the natural circulation thermosiphon phenomenon. It’s the most cost-effectiveness and environmentally friendly way to harness solar energy for hot water applications, one of our most durable/affordable/bankable solar water heater
PRODUCT DETAILS
| MODEL | Vacuum Tube | Capacity (L) | Absorber Area | Suitable for | |||
| Pcs | Size(mm) | Tank | Tube | System | (M2) | (Persons) | |
| OPTIMA-8 | 8 | 58×1800 | 70 | 24 | 94 | 1.064 | 1~2 |
| OPTIMA-10 | 10 | 58×1800 | 85 | 30 | 115 | 1.330 | 2 |
| OPTIMA-12 | 12 | 58×1800 | 100 | 36 | 136 | 1.596 | 2~3 |
| OPTIMA-15 | 15 | 58×1800 | 125 | 45 | 170 | 1.995 | 4 |
| OPTIMA-18 | 18 | 58×1800 | 150 | 54 | 204 | 2.394 | 5 |
| OPTIMA–20 | 20 | 58×1800 | 165 | 60 | 225 | 2.660 | 6 |
| OPTIMA-24 | 24 | 58×1800 | 200 | 72 | 272 | 3.192 | 7~8 |
| OPTIMA-30 | 30 | 58×1800 | 250 | 90 | 340 | 3.990 | 9~10 |
| Water Tank | SOLAR WATER HEATER ( STAINLESS STEEL & FLEXIBLE FRAME) | ||
| 1 | Material of Outer Tank Shell | High Quality Stainless Steel, 【SUS-201/304】 | |
| 2 | Material of Inner Tank Chest | Food Grade SUS304-2B Stainless Steel | |
| 3 | Water Tank Diameter | 【460/360 MM】or 【470/360 MM】 | |
| 4 | Water Tank Insulating Layer | Imported Polyurethane, High Density,【50/55MM】 | |
| 5 | Heat Preservation Period | 72~80 Hours | |
| 6 | Welding Method | Argon Arc Welding | |

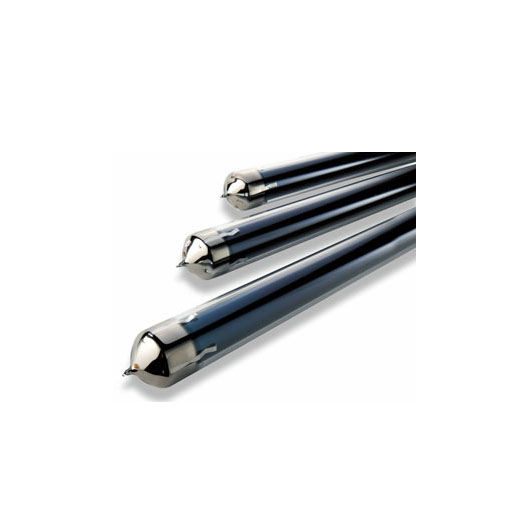

| Vacuum Tube | 7 | Tube Structure | All-Glass Double-Tube Co-Axial Structure |
| 8 | Glass Material | High Borosilicate 3.3 Glass | |
| 9 | Tube Size | 【58*1800 MM】 | |
| 10 | Coating Material | Cu/SS-ALN(H)/SS-ALN (L)/ALN | |
| 11 | Sediment Method | Tri-Element Magnetron Sputtering Plating | |
| 12 | Absorb Ratio | > 96% (AM 1.5) | |
| 13 | Thermal Emissivity | ≤ 6 % / (80°C) | |
| 14 | Freezing Point | -30°C | |
| 15 | Hail Resistance | Ȼ25mm | |

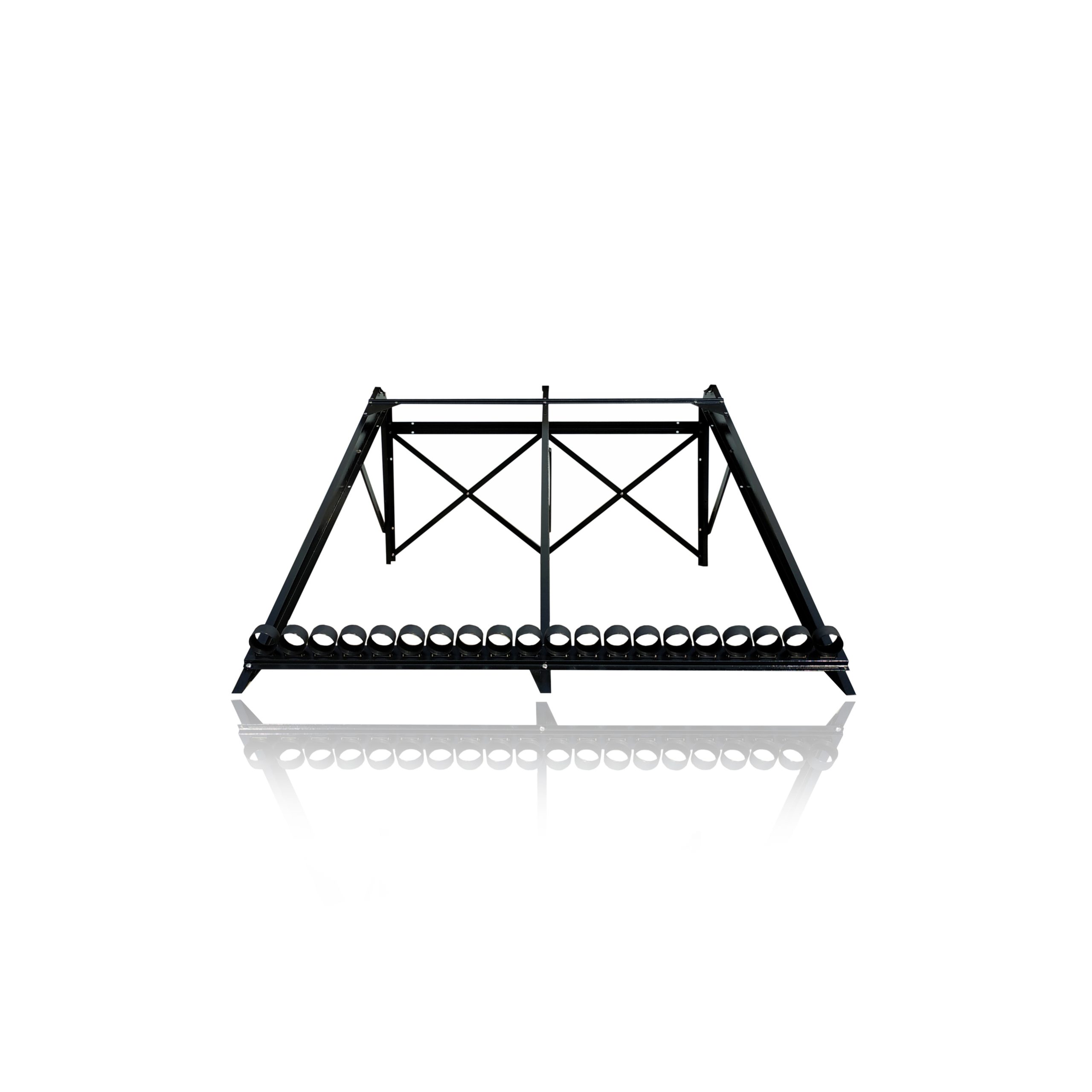

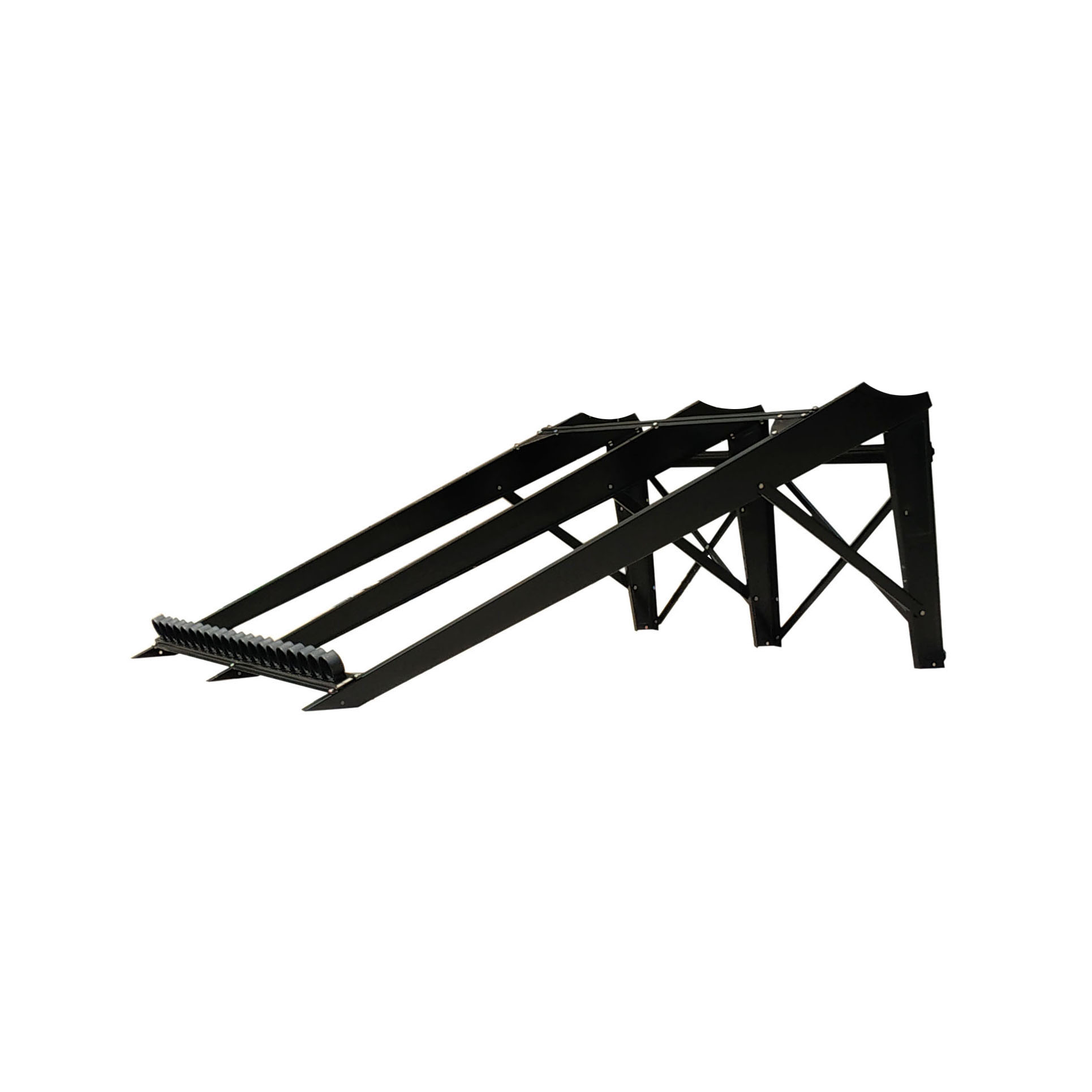

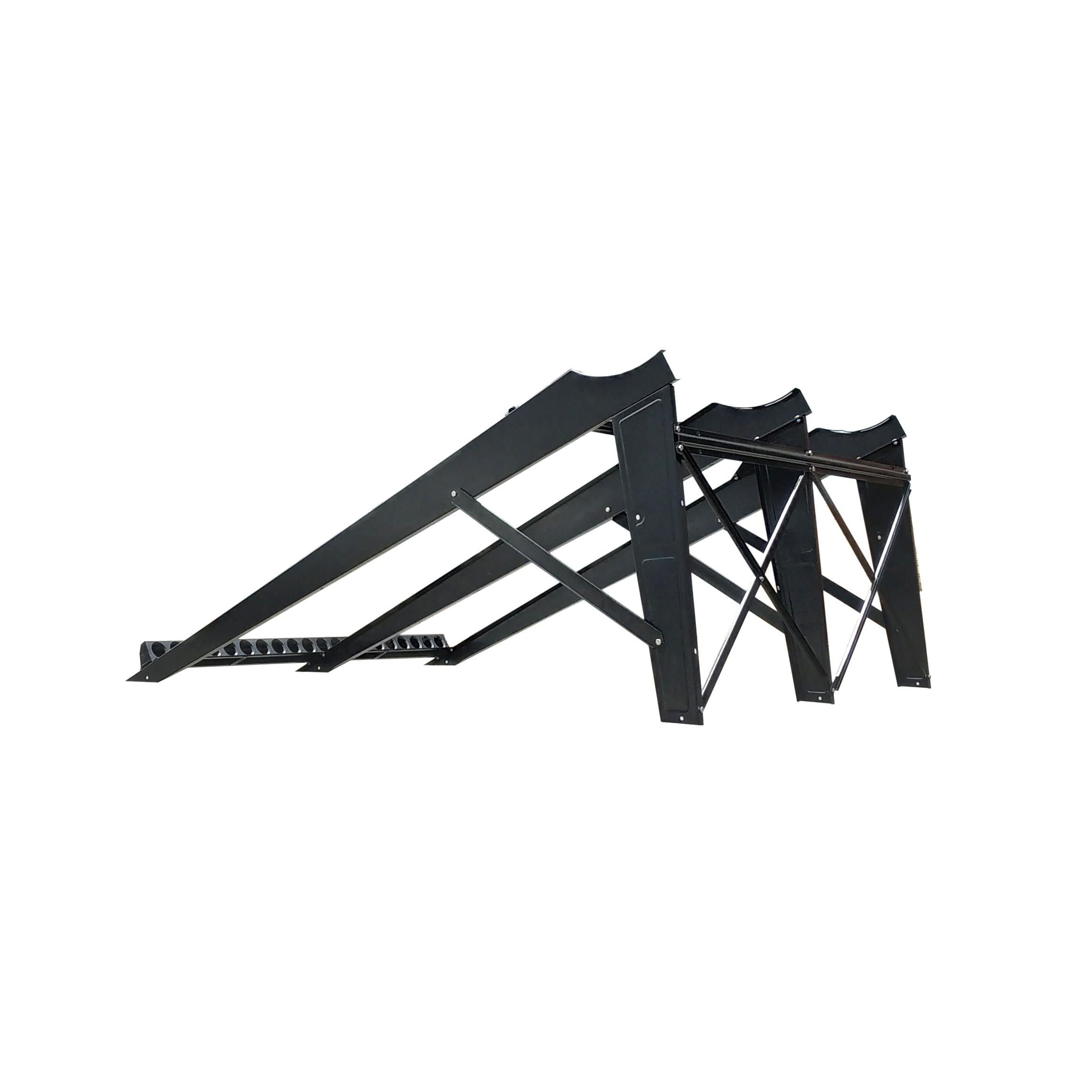

| Bracket | 16 | Bracket Material | 【Galvanized Steel or Stainless Steel】 |
| 17 | Bracket Angle | 【27°】 | |
| 18 | Bolts & Nuts | Stainless Steel | |
STAINLESS STEEL NON PRESSURE SOLAR WATER HEATERS 100L 150L 200L 300L CHARACTERISTIC:
1. Adopt stainless steel as outer tank and support material.
2. Most reliable, cost saving, efficient hot water heating solution.
3. Simple structure, easy installation, labor cost saving.

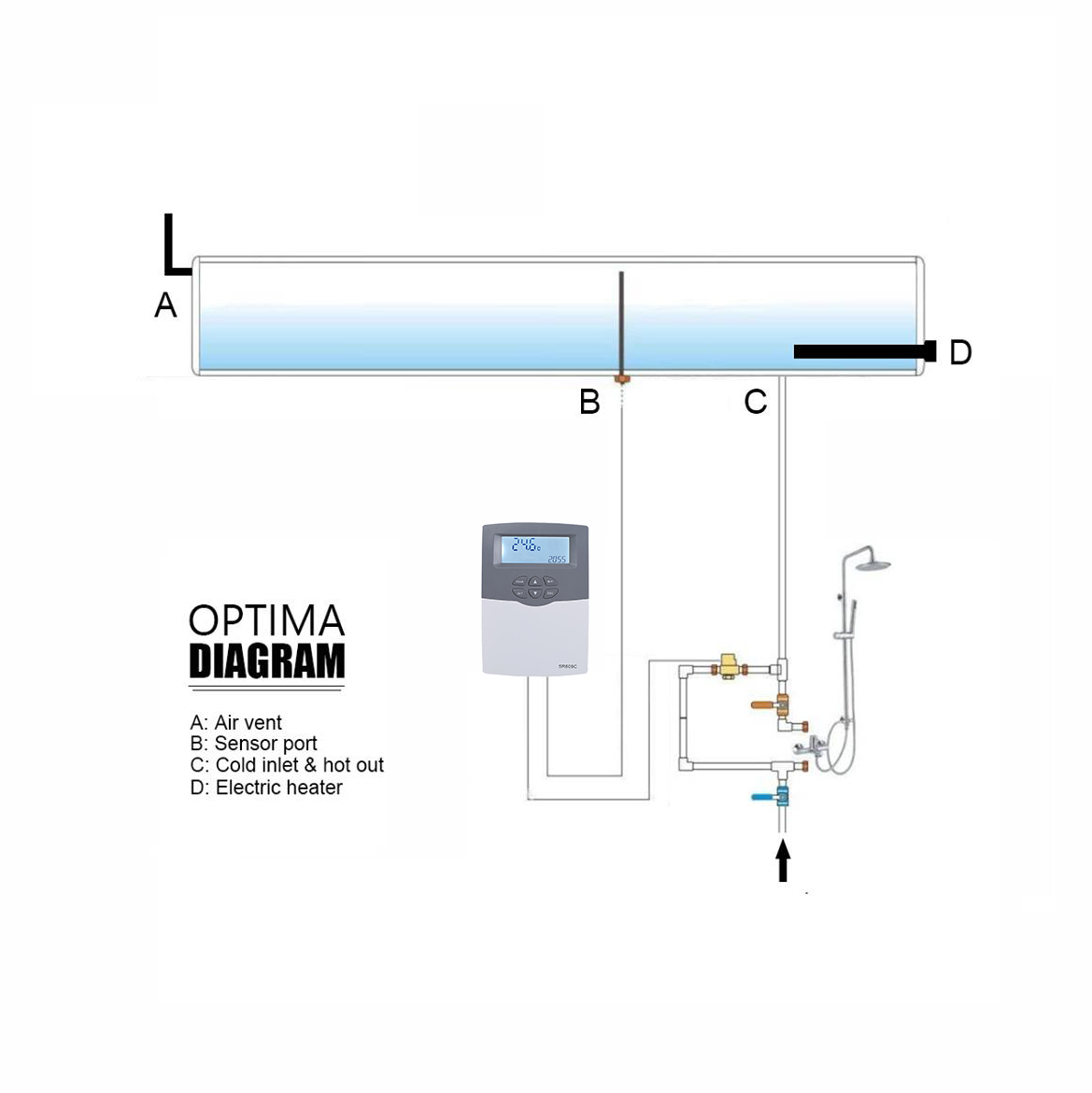

4. Automatic operation with intelligent controller.
5. Low maintenance cost.
STAINLESS STEEL NON PRESSURE SOLAR WATER HEATERS 100L 150L 200L 300LSPECIFICATION
1. Inner tank: Stainless steel SS304-2B / SS316L.
2. Outer tank: Stainless steel.
3. Insulation layer: Polyurethane foam, 40 kg/m³ high density.
4. Support: Stainless steel
5. Vacuum tube: Borosilicate glass 3.3, ALN/AIN-SS/CU coating, Φ58×1800mm.
6. Capacity: 50L-360L.
