150L 200L 300L Płaski panel słoneczny podgrzewacz wody Cena producenta

PRODUCT DETAILS

Key Points:

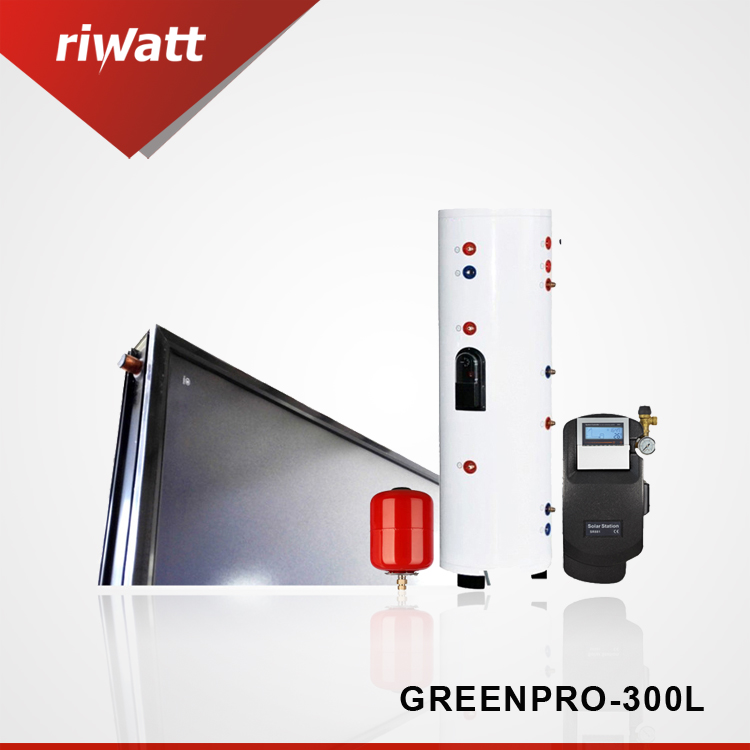

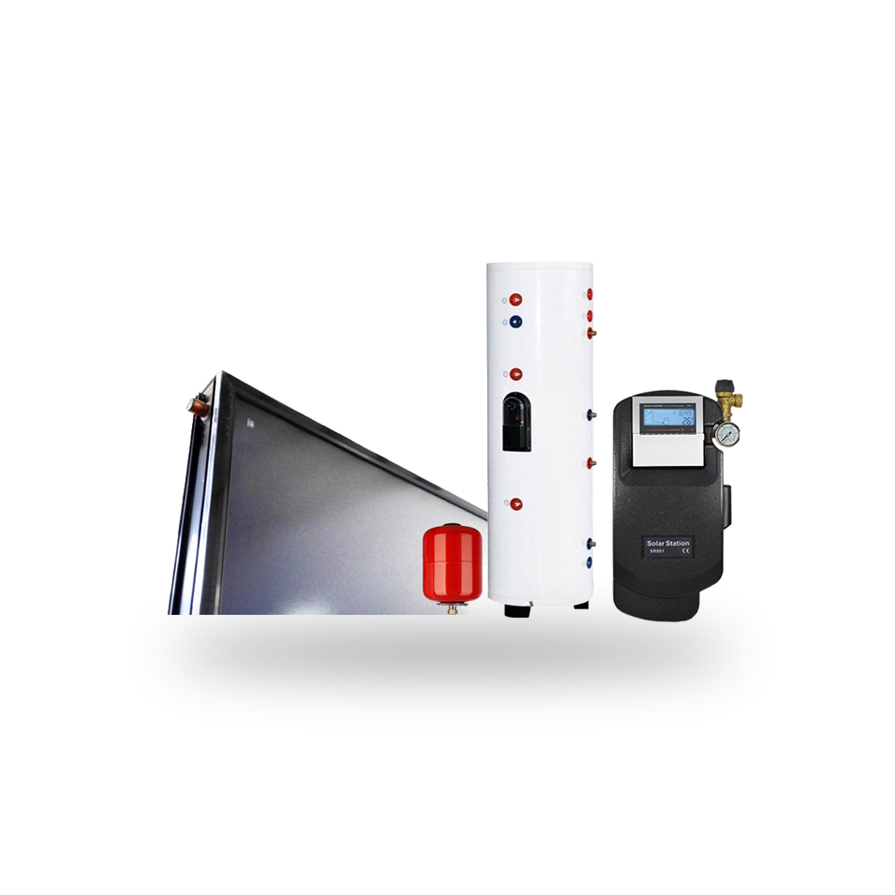

Flat Plate Split Pressurized Solar Water Heater
• Model: GREENPRO-300L

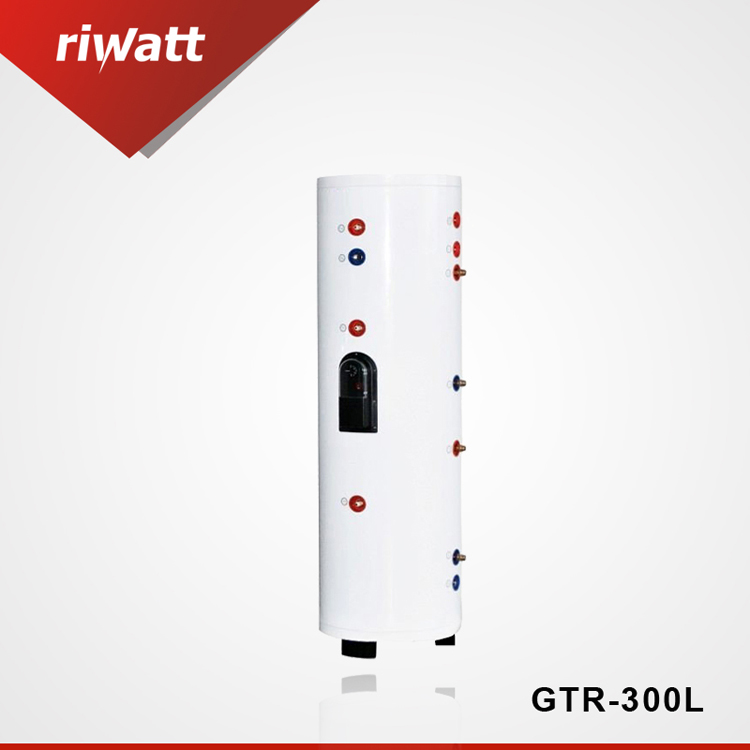

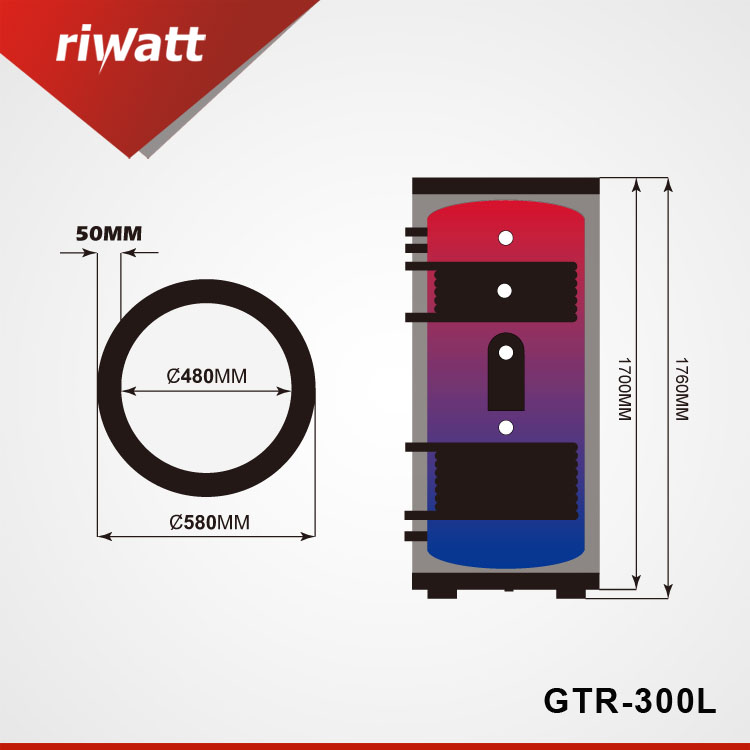

• Water tank : GTR-300L
• Flat Plate solar collector:2 × FPR2.15
• Working station: SR881
• Expansion vessel:12L

Flat Panel Solar Water Heater Working Principle

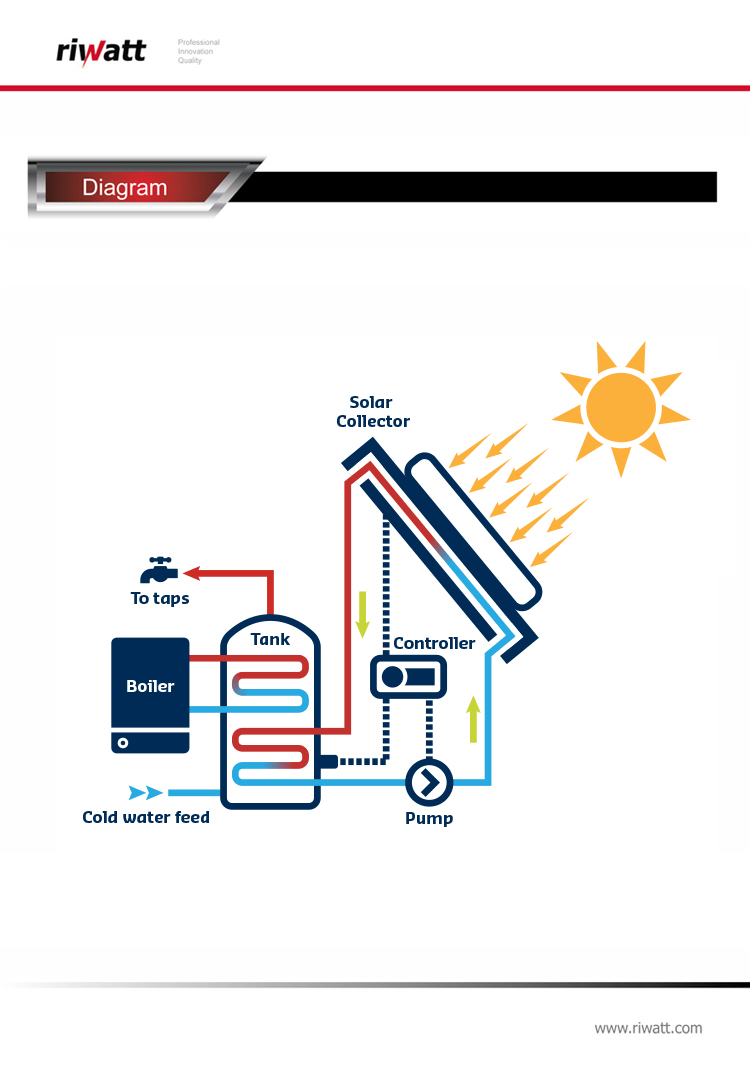

The flat plate collector absorbs solar energy and the heat is transferred to water tank through pump circulation; When the temperature difference between collector and tank reaches the set value, the controller starts the circulation pump automatically for heat exchange;

Usually an internal coil is pre-installed in storage tank as heat exchanger, a heat-transfer liquid circulates through flat panel to tank coil for heat exchange between the closed loop and main tank water, and an additional tank coil could be used to form a closed circulation loop for room or floor or pool heating.

There are many different configurations possible; the choice of design will depend on the purpose of the system, climate, space limitations and many other factors.

Flat Panel Solar Water Heater Main Features

• Reliable and stable performance with daily efficiency more than 54%
  ●Roof or balcony mounted collector and in-house situated storage tank
  ● High efficiency flat panel for fast and indirect solar water heating
  ● Multifunction tank for water and room and pool heating
  ● Compatible with electric or gas heating devices
  ● Working all year round even in frozen winter
  ● Super anti-freezing performance for -40°C
  ● Designed for 25 years working life
